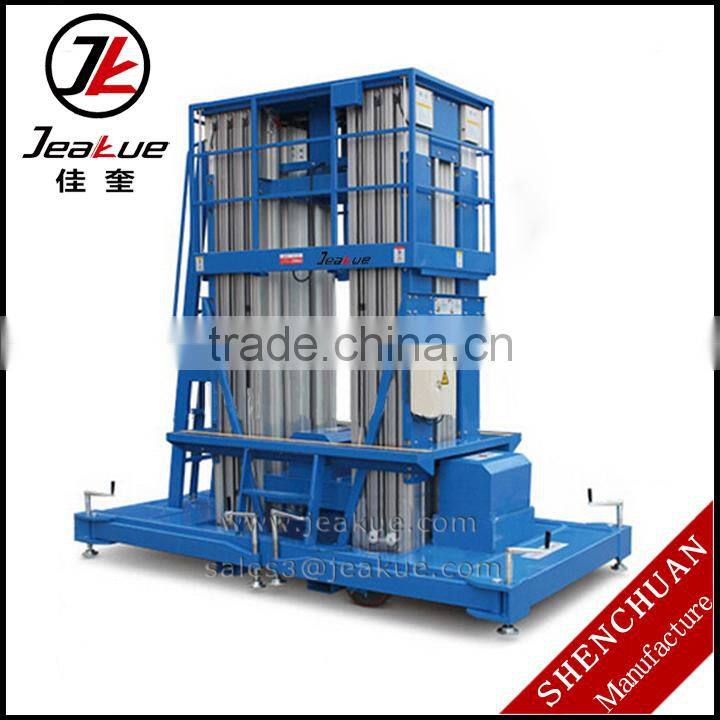

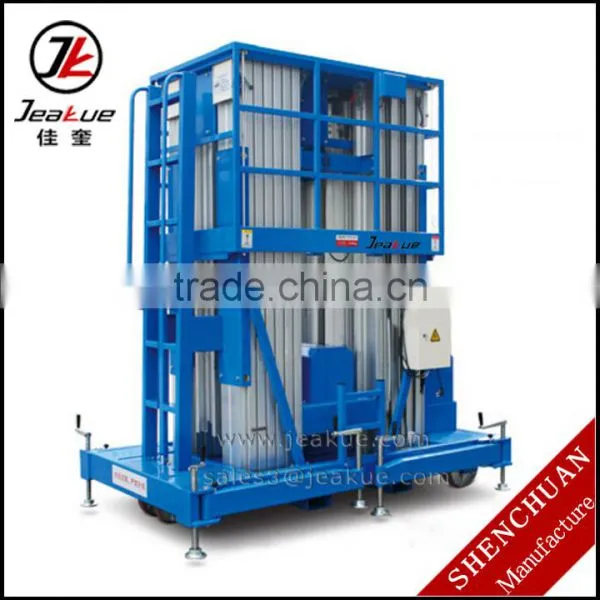

JEAKUE Six mast aerial work platform (16-20m)
? Six-mast in the form of 4 + 2 form, material selection mast new high-strength aluminum extrusion, high strength, more secure;
Handle, turn and move with convenient steering ? more effort;
? chassis with four-wheel rolling chassis, at the corner and narrow lots and lots of energy to work more mobile and flexible barriers;

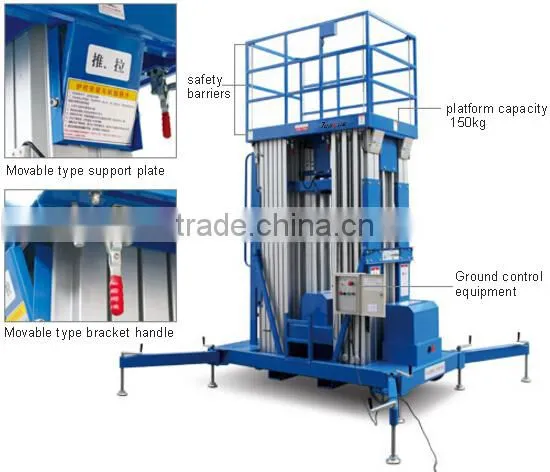

? adopts lifting guardrail installation, convenient solid, guardrails in the middle with the slider, up and down easily;

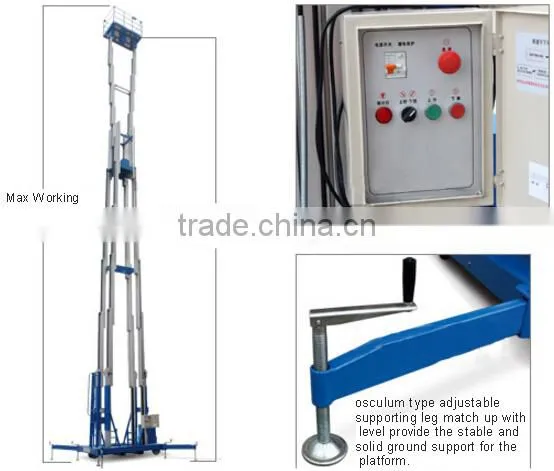

? chassis with a horizontal instrument, you can adjust the machine in a horizontal position;
? Platform can operate up and down, the ground control box has to lock the keys to prevent unauthorized use of the machine;
? platform emergency down switch, ensure that when a power failure, can be lowered;
? between profiles and profiles more oriented guide pulley by controlling the gap, so that increased jitter after being kept to a minimum, more secure, stable, this country's leading technology;
? increased speed: 0.09-0.1m / s, the rate of decline: generally greater than 0.08m / s, can be adjusted;
? Wind resistance ≤5 level.
? Wind Level: 5
? ROBT To protect your job security, high-altitude platform products, each comes with a free helmet and seat belts.
| Model | BT01180 | BT01181 | BT01182 | BT01183 | ||
| Platform maximum height | mm | 16000 | 18000 | 19000 | 20000 | |
| Maximum working height | mm | 17700 | 19700 | 20700 | 21700 | |
| Platform rated load | kg | 150 | 150 | 150 | 150 | |
| The number of airborne | 1 | 1 | 1 | 1 | ||
| Work platform size | mm | 1450×900 | 1450×900 | 1500×900 | 1550×900 | |
| Battery | V/hz | 220V | 220V | 220V | 220V | |
| Power | The second mast (on) | kw | 1.1 | 1.1 | 1.1 | 1.1 |
| Four mast (below) | kw | 2.2 | 2.2 | 2.2 | 2.2 | |
| Size | mm | 2250×1300×2180 | 2250×1300×2420 | 2500×1400×2520 | 2500×1400×2620 | |
| Self weight | kg | 1200 | 1400 | 1500 | 1780 | |
| Optional configuration | Walking device(BT01054) | |||||
