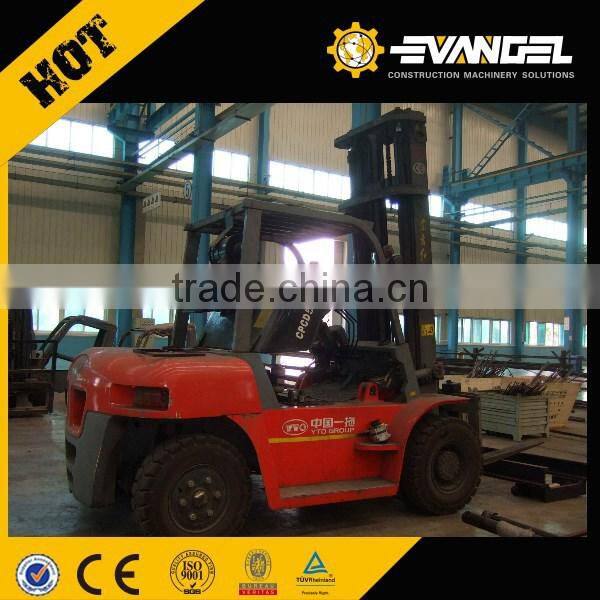

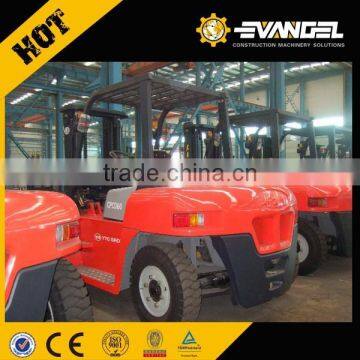

5 ton diesel forklift CPCD50A for europe market top quality
Main features:
The seat can be adjusted back and forth within wide range in 8 positions, the front/rear sliding adjustment can be up to 150mm, the tilting angle of the steering wheel can be adjusted, so as to fit the operator for sheer driving pleasure.
Digital intelligent driving control system can facilitate obtaining the operation data of forklift so as to achieve the whole-process control.
Full hydraulic steering system, can greatly reduce the fatigue of operator, uses crank sliding piece steering and compact structure.
Big arch design on top of the ballast can improve the visibility of rear view; can guarantee the optimum visibility when drive reverses within fixed distance...
The engine hood can open by 90°,and can be effectively supported with air spring so as to facilitate the inspection and maintenance.
Technical parameters
Technical Specification
| Speciality parameter | Model | CPCD40 | ||||
| Power type | Diesel | |||||
| Rated capacity | kg | 4000 | ||||
| Load center | d | mm | 500 | |||
| Lift height | h2 | mm | 3000 | |||
| Mast tilt angle (forward/backward) | α/β | Deg | 6/12 | |||
| Front overhang | L3 | mm | 515 | |||
| Wheel-base | L4 | mm | 1900 | |||
| Tread(front/rear) | b4/b5 | mm | 1040/980 | |||
| Performance parameter | Travel brake | Hydraulic-Foot pedal | ||||
| Parking brake | Mechanical-Hand lever | |||||
| Lift speed(with/without load) | mm/s | 380/440 | ||||
| Lower speed (with/without load) | mm/s | (with load)<600 ,(without load)>300 | ||||
| Travel speed (with/without load) | km/h | 19/20 | ||||
| Max. gradeability (with load) | % | 18 | ||||
| Power, transmission and others | Engine | Model | A495BPG | |||
| Manufacturer | Xinchang | |||||
| Rated power | kw | 42/2650 | ||||
| Max.rotation | 174/1800 | |||||
| Displacement | 2.98 | |||||
| Battery | Voltage | V | 12 | |||
| Capacity | Ah | 100 | ||||
| Gearbox | Transmission type | Hydraulic | ||||
| Gears,speed (front/rear) | Ⅰ/Ⅰ | |||||
| Tire | type | Pneumatic tyre | ||||
| Model | Front | 250-15-16PR | ||||
| Rear | 6.5-10-12PR | |||||
| Other | Self.weight | kg | 5030 | |||
| Free lift height | h4 | mm | 170 | |||
| Fork | Thickness×Width×Length | c×b×a | mm | 50×140×1070 | ||
| Overall dimensions | Overall length(without forks) | L2 | mm | 2970 | ||
| Overall width | b1 | mm | 1310 | |||
| Overall height | Extended height(mast) | h1 | mm | 4240 | ||
| Lower height(mast) | h3 | mm | 2170 | |||
| Overhead guard | h7 | mm | 2170 | |||
| Min. turning radius | Wa | mm | 2710 | |||
| Min. under ground clearance | Under mast | m1 | mm | 135 | ||
| Center of wheel-base | m2 | mm | 160 | |||
