Condition
New
Place of Origin
Henan, China
Brand Name
YTO
Model Number
CPD20
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
2000kg
Max. Lifting Height
6000mm
Min. Lifting Height
3000mm
Fork Length
1070mm
Fork Width
125mm
Overall Dimensions
2380*1150*4030
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
2T electric forklift Good price YTO CPD20
Product Description
1. Rated load: 2000kgs
2. Lifting height: 3000mm
2T Electric Forklifts,with CURTIS Semi AC Motor driver motor, large capacity battery, pneumatic and solid tire for option,Double & triple mast, full free lift & side shifter.
Specification: 2T electric forklift Good price YTO CPD20
Speciality parameter | Model | CPD20 | ||||
| Power type | Battery | |||||
| Rated capacity | kg | 2000 | ||||
| Load center | d | mm | 500 | |||
| Lift height | h2 | mm | 3000 | |||
| Mast tilt angle (forward/backward) | α/β | Deg | 6/12 | |||
| Front overhang | L3 | mm | 483 | |||
| Wheel-base | L4 | mm | 1500 | |||
| Tread(front/rear) | b4/b5 | mm | 970/950 | |||
| Performance parameter | Travel brake | Hydraulic-Foot pedal | ||||
| Parking brake | Mechanical-Hand lever | |||||
| Lift speed(with/without load) | mm/s | 260/400 | ||||
| Lower speed (with/without load) | mm/s | (with load)300 | ||||
| Travel speed (with/without load) | km/h | 11/12 | ||||
| Max. gradeability (with load) | % | 1 | ||||
| Power, transmission and others | motor | Driving motor | Model | XQ-6.3-1T | ||
| Rated power | kw | 6.3 | ||||
| Rated rotation | r/min | 1200 | ||||
| Working motor | Model | XQD-8.6-C | ||||
| Rated power | kw | 8.6 | ||||
| Rated rotation | r/min | 1550 | ||||
| Controller | Manufacturer | GE | ||||
| Type | MOSFET | |||||
| Battery | Voltage | V | 48 | |||
| Capacity | Ah | 630 | ||||
| Size(L×W×H) | mm | 820×1065×520 | ||||
| Gearbox | Transmission type | Mechanical | ||||
| Tire | type | Pneumatic tyre | ||||
| Model | Front | 7.00-12-12PR | ||||
| Rear | 18×7-8-14PR | |||||
| Other | Self.weight | kg | 3970 | |||
| Free lift height | h4 | mm | 140 | |||
| Fork | Thickness×Width×Length | c×b×a | mm | 40×125×1070 | ||
| Overall dimensions | Overall length(without forks) | L2 | mm | 2380 | ||
| Overall width | b1 | mm | 1150 | |||
| Overall height | Extended height(mast) | h1 | mm | 4030 | ||
| Lower height (mast) | h3 | mm | 1995 | |||
| Overhead guard | h7 | mm | 2150 | |||
| Min. turning radius | Wa | mm | 2050 | |||
| Min. under ground clearance | Under mast | m1 | mm | 110 | ||
| Center of wheel-base | m2 | mm | 120 | |||

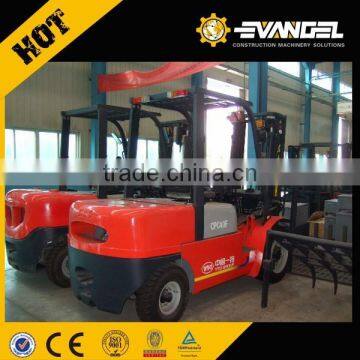

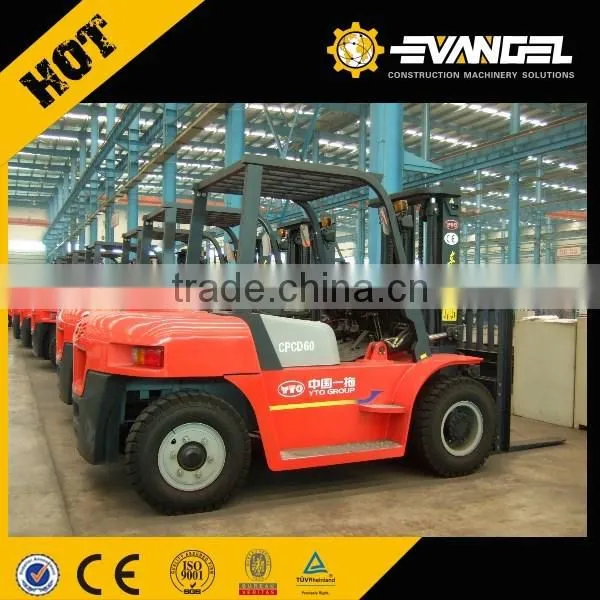

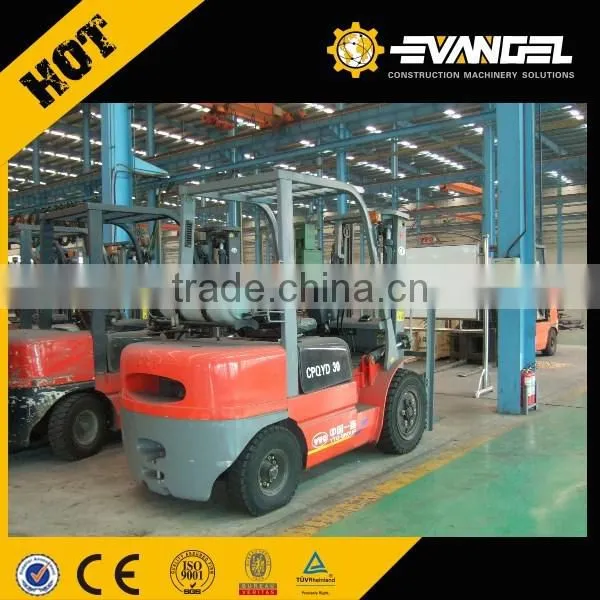

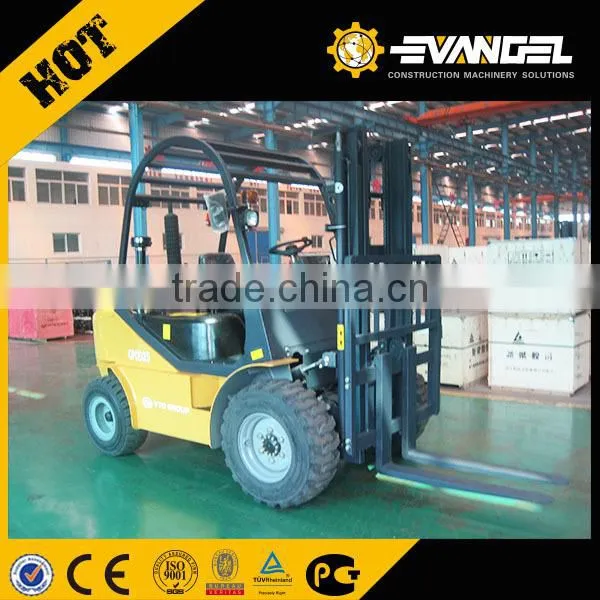

Photos: 2T electric forklift Good price YTO CPD20
