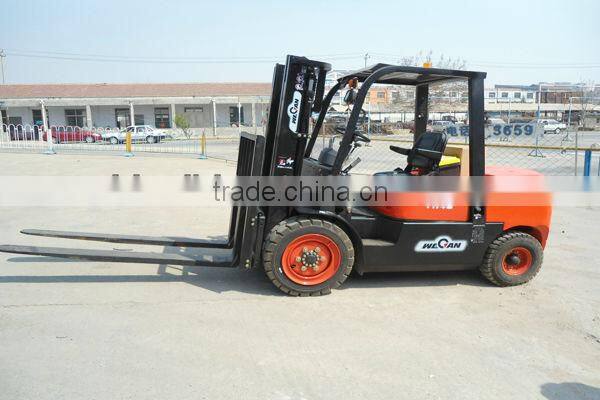

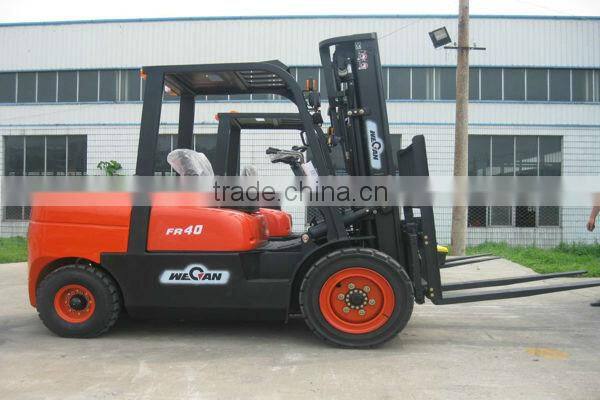

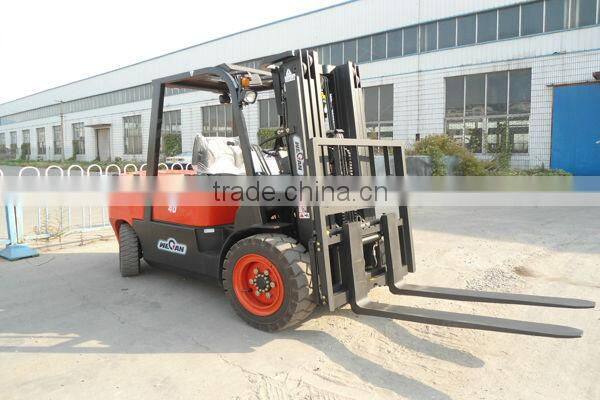

3 ton Wecan electric forklift CPCD30FR for sale
- 500 Unit / Units per Month
- SHANGHAI
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Wecan |
Model Number: | CPCD30FR | Type: | Powered Pallet Truck | Power Souce: | Diesel Engine |
Rated Loading Capacity: | 3ton | Max. Lifting Height: | 3000mm | Min. Lifting Height: | 45 mm |
Fork Length: | 1220 mm | Fork Width: | 125 mm | Overall Dimensions: | 3800*1230*2110 MM |
Certification: | ISO9001,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
3 ton Wecan electric forklift CPCD30FR for sale
Specifications of 3 ton Wecan electric forklift CPCD30FR for sale
MODEL | CPCD30FR | |
Load capacity | 3000 kg | |
Load center | 500 mm | |
Power type | Diesel | |
Max. lifting speeds(with load) | 400mm/s | |
Max. driving speeds(with/without load) | 18/20km/h | |
Max towering (with load) | 15.5/10.5kn | |
Grade ability (with load) | 15/20 % | |
Lifting height (H1) | 3000mm | |
Free lift | 80 mm | |
Tilting angles(forward α-backward β) | 6°/12° | |
Min. turning radius | 2500mm | |
Min. Right angle aisle width | 2110mm | |
Min. under-clearance | 135mm | |
Dimensions | Overall length(including fork) (A) | 3800 mm |
Overall width (B) | 1230mm | |
Overall height(mast lowered) (H) | 2110 mm | |
Overall height(mast extended) (H2 ) | 4270mm | |
Overall height to overhead guard (H3) | 2110mm | |
Fork overhang (A1) | 465mm | |
Wheel base(A2) | 1700 mm | |
Tread | Front tread(B1) | 1000 mm |
Rear tread (B2) | 970mm | |
Tire | Front tire | 28×9-15 |
Rear tire | 6.50-10 | |
Total weight | 4320kg | |
Fork width(B3) | 125 mm | |
Fork thickness(H4) | 45 mm | |
Backrest height | 1225 mm | |
Fork length (A3) | 1220mm | |
Engine | Engine model | 490 |
Rated power | 39 kw | |
Rotate speed at rated power | 2650rpm | |
Max. Torque | 157 nm | |
Rotate speed at max. Torque | 1980 rpm | |
Type of power shift | Tor-con | |
Packing details | 2PCS/20’CNT; 6PCS/40’CNT |
