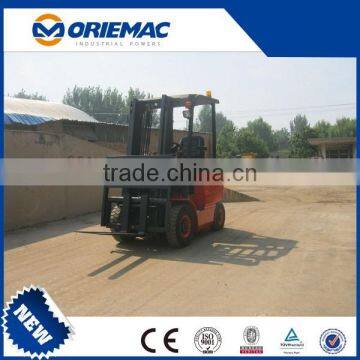

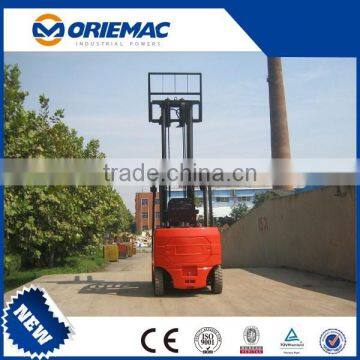

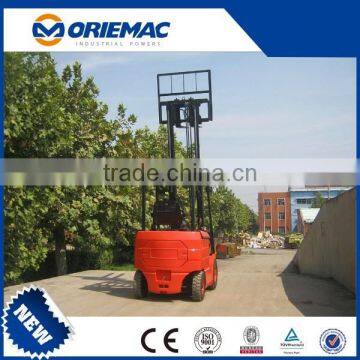

3 Ton Wecan Electric Forklift CPD30C

3 Ton Wecan Electric Forklift CPD30C thumbnail-1
3 Ton Wecan Electric Forklift CPD30C thumbnail-2
3 Ton Wecan Electric Forklift CPD30C thumbnail-3
3 Ton Wecan Electric Forklift CPD30C thumbnail-4
3 Ton Wecan Electric Forklift CPD30C thumbnail-5
3 Ton Wecan Electric Forklift CPD30C photo-1
3 Ton Wecan Electric Forklift CPD30C photo-2
3 Ton Wecan Electric Forklift CPD30C photo-3
3 Ton Wecan Electric Forklift CPD30C photo-4
3 Ton Wecan Electric Forklift CPD30C photo-5
US$ 1 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Wecan
Contact Supplier Request Quote Chat Now
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name Wecan
Model Number CPD30C
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 3 ton
Max. Lifting Height 3000 mm
Min. Lifting Height 80 mm
Fork Length 1220 mm
Fork Width 125 mm
Overall Dimensions 3705*1240*2200 mm
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

3 ton Wecan Electric Forklift CPD30C
1. 40-DA-500 battery, 80/500 V/Ah
2. Lifting height: 3000 mm

3 ton Wecan Electric Forklift CPD30C




Product Description



♦       High capacity battery
♦       Comfortable control
♦       High performance motor
♦       America Curtis electronic controller (AC controller)
♦       Safe overhead guard
♦       Warning light
♦       Free of exhaust and noise
♦       Side shifter is optional
♦       Optional mast: 2-stage 3.3m/3.5m/4m mast;
         3-stage 4.5m/5m/5.5m/6m mast.


General



Brand



WECAN

1

Model



CPD30C

2

Rated capacity

kg

3000

3

Load center

mm

500

4

Power type



Battery

Dimensions

5

Lifting height

mm

3000

6

Free lifting height

mm

80

7

Turning radius

mm

2350

8

Overall length

mm

3705

9

Overall width

mm

1240

10

Overall height

(mast lowered)

mm

2200

11

Overall height

(mast raised)

mm

4260

12

Overall height

(overhead guard)

mm

2200

13

Fork length

mm

1220

14

Fork width

mm

125

15

Fork thickness

mm

45

Performance

16

Max. driving speed

(with/without load)

km/h

14/16

17

Max. lifting speed

(with load)

mm/s

290

18

Max. traction

(with load)

kn

12

19

Gradeability

(with load)

%

15

20

Tilting angles

(forward/backward)

°

6/12

21

Service weight

kg

4900

Motor

22

Traction motor



XQ-10-1C

23

Lifting motor



XQD-13-3S

Battery

24

Battery type



40-DA-500

25

Battery voltage/capacity

V/Ah

80/500

Wheel

26

Front overhang

mm

494

27

Wheel base

mm

1700

28

Front tread

mm

1000

29

Rear tread

mm

980

30

Front tire



28×9-15

31

Rear tire



18×7-8
