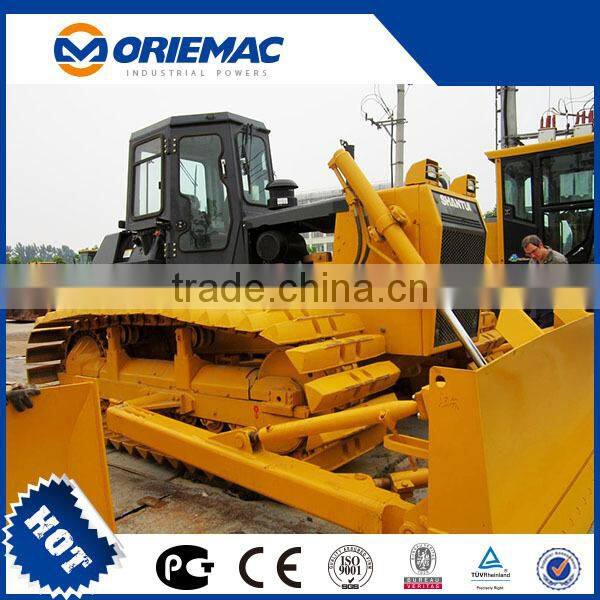

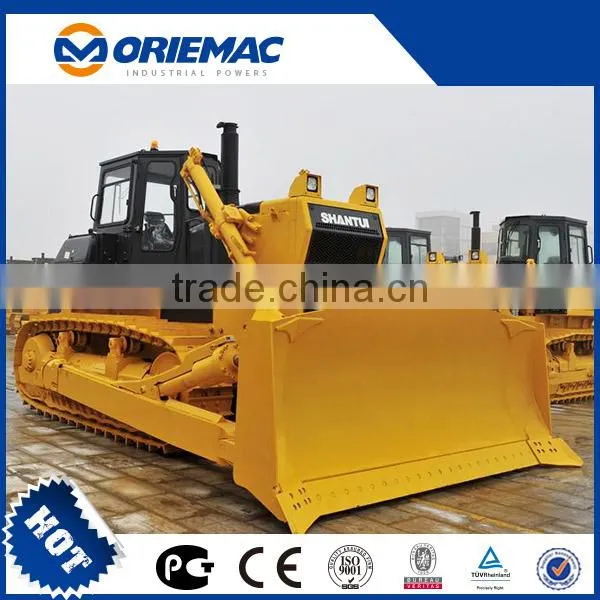

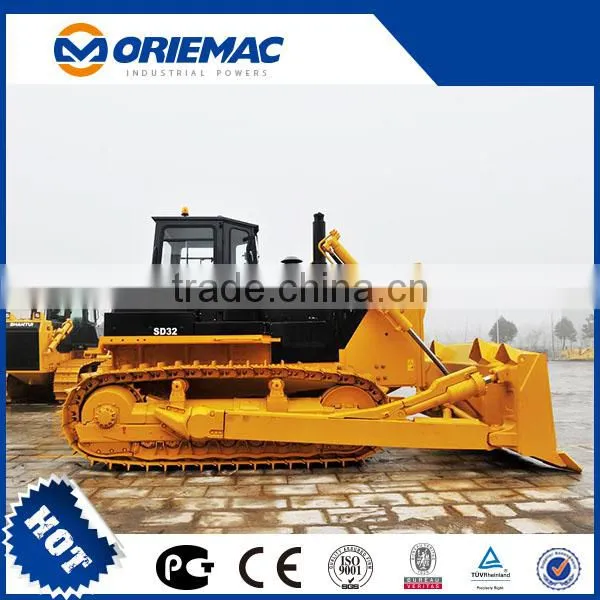

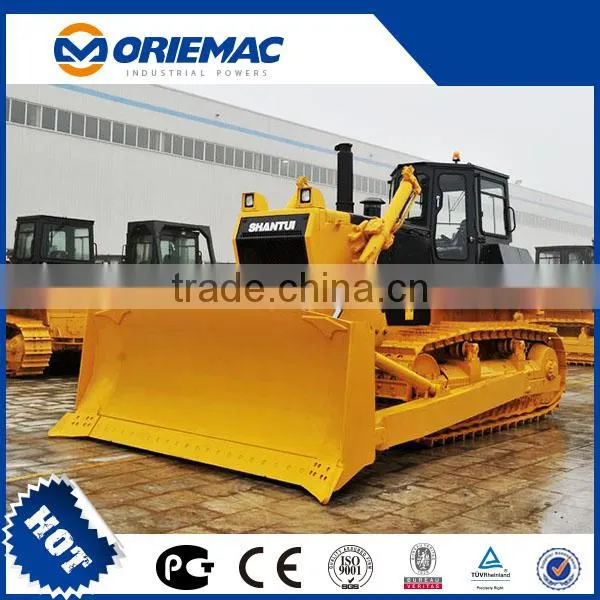

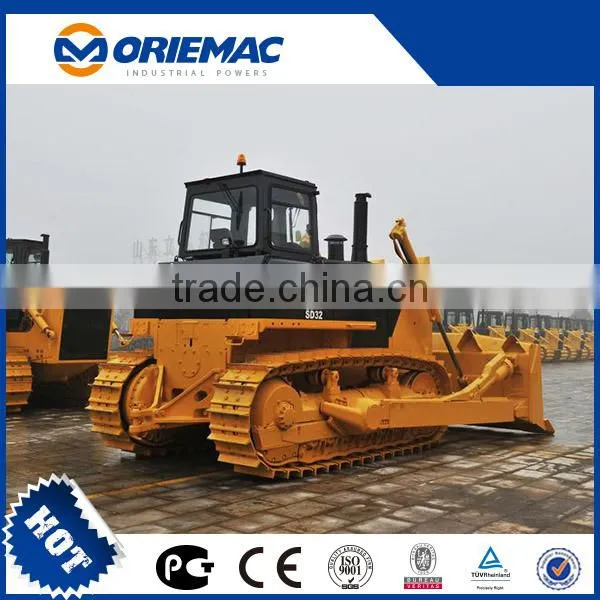

High performance Shantui bulldozer SD32 with imported engine
Product feature: Shantui bulldozers mini dozers SD32
Rated Power: 235kW@2000rpm
Engine Model: NTA855-C360S10
Operating Weight: 37.2 Tons
Based on the SD32 bulldozer, the SD32D desert bulldozer was developed by Shantui for desert operation. The SD32D is equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, providing reliable performance and convenient and flexible operation. Specially fitted with a desert radiator and air filter, the SD32D is well adapted to the desert operations.
Technical Parameter: Shantui bulldozers mini dozers SD32
| ITEM | UNIT | SD32D |
|---|---|---|
| L×W×H (Ripper not included) | mm | 6880×4130×3725 |
| Operating weight (Ripper not included) | t | 37.2 |
| Engine | - | NTA855-C360S10 |
| Rated power | kW/rpm | 235/2000 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt bladeSemi-U bladeAngle blade |
| Blade width | mm | Straight tilt blade 4130×1590Semi-U blade4030×1720Angle blade 5000×1140 |
| Dozing capacity | m3 | Straight tilt blade 10Semi-U blade 11.9Angle blade 6 |
| Ma× drop below ground of blade | mm | 560 |
| Lift height of blade | mm | 1560 |
| Ripper type | - | Single ripperThree-shank ripper |
| Ripping depth of ripper | mm | Single ripper 1250Three-shank ripper 842 |
| Lifting height of ripper | mm | Single ripper 955Three-shank ripper 883 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 760 |
| Track gauge | mm | 2140 |
| Ground length and ground pressure | mm/MPa | 3150-0.076 |
| Pitch | mm | 228.6 |
| Forward speed | km/h | 0–3.6 |
| 0–6.6 | ||
| 0–11.5 | ||
| Reverse speed | km/h | 0–4.4 |
| 0–7.8 | ||
| 0–13.5 |
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
Please contact us if you need more details about the product and parts.
