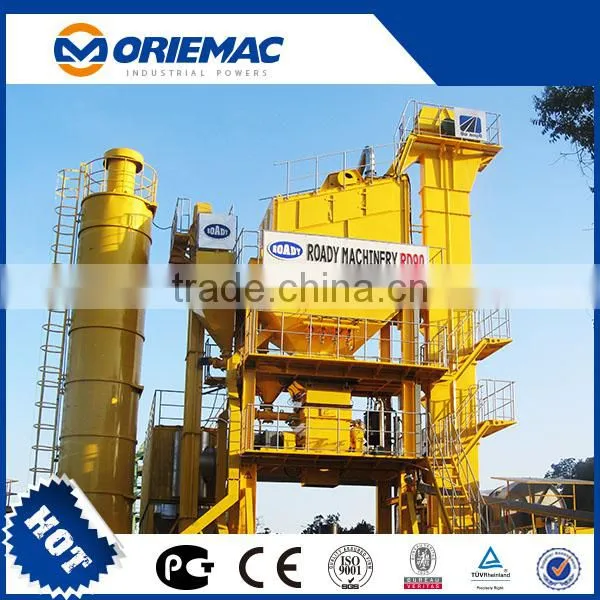

175t/h Cheap Roady Hot Asphalt Mixing Plant RD175

Name: 175t/h Cheap Roady Hot Asphalt Mixing Plant RD175
Brand: Roady
SKU: 140719966
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

Roady

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name Roady

Model Number RD175

Power(W) 512kw

Dimension(L*W*H) 40*38*15m

Certification ISO,CE, GOST

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Roady RD175t/h Capacity Asphalt Mixing Plant RD175
1.175ton/h capacity
2.Installed Power:512kw
3.Dimension:40*38*15m

Roady RD175t/h Capacity Asphalt Mixing Plant RD175

1.175ton/h capacity
2.Installed Power:512kw
3.Dimension:40*38*15m

tems	Plant	Mixer	Weighing Accuracy			Installed	Fuel
	Capacity(t/h)	Capacity(kg)	Weighing Accuracy			Power(kw)	Consumption(kg/t)
	Capacity(t/h)	Capacity(kg)	Aggregates	Fillers	Bitumen	Power(kw)	Consumption(kg/t)
RD175	175	2200	±0.5%	±0.5%	±0.25%	512	10

No.	Parts Name		Parts total power (KW)	Remark
1	Cold aggregate supply system		13.5
2	The tilted belt feeding conveyer		5.5
3	Drying drum		74
4	Oil burning system		96.5
5	Hotaggregate elevator		15
6	Bag dust catcher system		144.12
7	Mixer tower assembly	vibrating screen	11
		Mixer	74
		Asphalt spraying system	15
8	Filler supply system		8
9	Pneumatic system		11
10	Asphalt supply system		32.95
The plant total installed power			511.57kW
