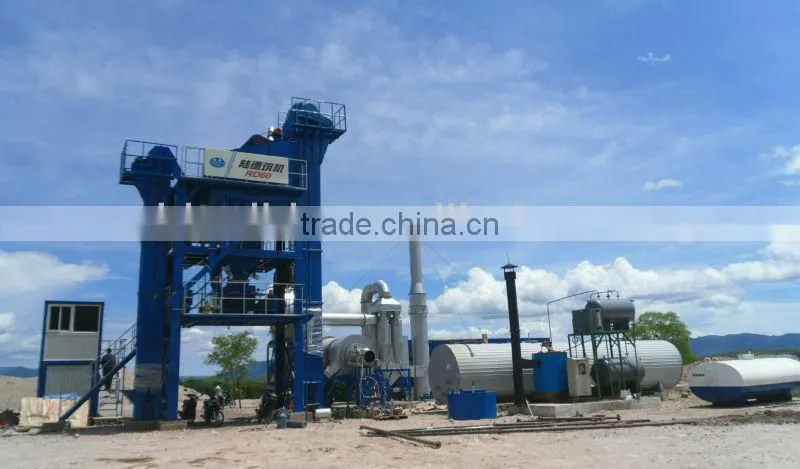

Welcome to ROADY Asphalt Batch Mixing Plant RD60!
We are able to provide professional service and high quality products.
Look forward to sincere cooperation with you.
Feasures
RD60 Asphalt Batch Mixing Plant specification and configuration
I,Basal configuration
1,Cold aggregate supply system
Components:
Four aggregate hoppers and four belt feeders, Aggregate belt conveyer. Tilted belt conveyer, middle filter.
Specifications:
(1) aggregate belt feeder:
hopper volume:4*6.5m³;hopper width:3.2m;
Loading height: 3.0m; Vibrators on the hopper wall: 2×0.25kw;Belt width:500mm
Ring feeding unit Motor Power(Frequency conversion timing):4×1.5kw;
(2) Aggregate belt conveyer:
Belt width:500mm; Motor power: 4kw
(3) middle filter:No vibration in middle filter and slanting
(4) the tilted belt conveyer:
Belt width: 500mm; Motor power: 4kw
Characteristics:
(1) the aggregate belt feeder is featured with frequency conversion timing with credible capability, modularized design will be convenient for conveyance and erection;
(2) it’s equipped with pre-lubricating long-life bearings, tightening device and deflection block wheel on all rollers of belt conveyer, which will adjust tightness deflection of conveying belt; the cleaning device on conveying belt will prevent aggregates slide belts;
(3) Belt conveyer is equipped with urgent stop switch.
2. Drying drum
(1) Specifications:
Drum diameter: 1.2m,
Drum length: 5.2m;
Drum obliquity: 4° ;
Motor power: 11kW
(2) Characteristic:
The drying drum is driven by gear smoothly and evenly, outside the drum is equipped with 50mm heat preservation layer to reduce heat loss; inside the drum is fixed with diversified blades for lifting aggregates to improve heat exchange efficiency and reduce fuel consumption; discharging outlet is placed with temperature detection device.
3.Light Oil burning system
(1) Components:
A set of oil burner (fuel: diesel oil); the diesel tank will be supplied by client, a set of oil pipes;
(2) Speciation:
Oil consumption: 400kg/h;
Wind fan power: 11kw
Oil pump motor: 3kw
(3)The burner characteristics:
(1) Burner: the burner is equipped with
gas ignition device;
(2) Oil burning adjust method:
automatic adjust; Adjust ratio: 1:3;
4.Hotaggregate elevator
(1)Specifications:
Motor power: 5.5kw
Hopper reinforced material: 65Mn
(2) Characteristic:
Single rows of chains with double dowels, special structure in inlet, outlet and elevating hopper to reduce the abrasion and noises.
5. Wet dust catcher system
Components:
Gravity dust catcher, A set of cyclone dust catcher, a set of water dust catcher
Rated capability: 700kg
2) Filler weighing hopper:
Model: single filler, suspending by three upholding points, with transportation fixed part;
Rated capability: 80kg
3) Asphalt weighing hopper:
Model: single filler, heat preservation, suspending by three upholding points, with transportation fixed part.
Rated capability: 50kg
Characteristic:
Accurate computation, offset could be compensatedautomatically.
(4) Mixer
Specifications:
Rated mixing capacity: 700 kg/batch;
Installed power: 30kw;
Characteristic:
1). Mixers are made from European advanced techniques and equipped with synchronizing gear and pneumatic turning door;
2). Double shafts will contrarotate,which makes the aggregate turning up and down, and ensure the mixture mixed evenly.
(5) Asphalt spraying system
Specifications:
Motor power of asphalt pump: 5.5kw
Characteristic:
It’s equipped with high pressure shower spraying deive with patent which will spray asphalt quickly and evenly by pressure, good for shortening the mixing time and improving the output.
