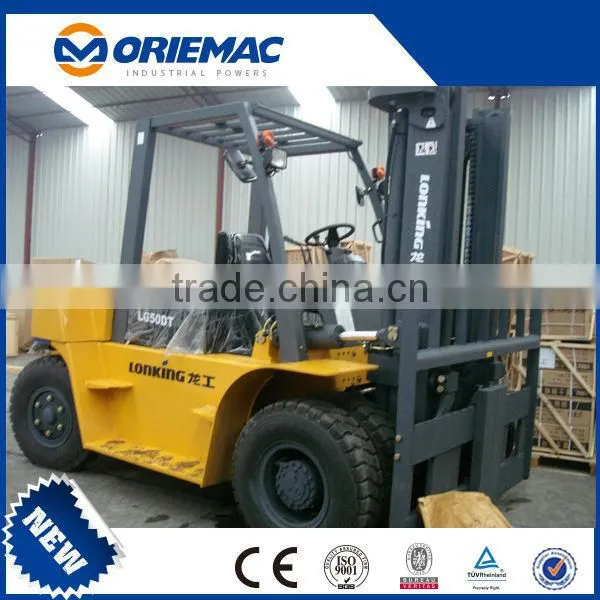

LonKing LG50DT Forklift

Name: LonKing LG50DT Forklift
Brand: LonKing
SKU: 140719312
Availability: InStock

US$ 1 - 40,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

LonKing

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name LonKing

Model Number 50DT

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 5000kg

Max. Lifting Height 3000mm

Min. Lifting Height 205mm

Fork Length 1220mm

Fork Width 150mm

Overall Dimensions 4709*2000*2500mm

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Overall Data of Diesel Forklift LG50DT:

Engine Model (standard): CY6102

Engine Model (optional): Japanese 6BG1

Rated capacity (kg):5000

Max gradeabilty (%):20

Min.turning radius (mm):3370

Max travel speed (km/h) (Load/Unload):25/27

Max lifting speed (mm/s) (Load/Unload): 450/350

Model		diesel engine forklift truck of LG50DT
Power type		Diesel
Load capacity	Kg	5000
Load center	mm	600
Max. lifting height	mm	3000
Free lifting height	mm	205
Forks length	mm	1220
Forks width	mm	150
Forks thickness	mm	55
Tiling angles(forwars/backward)deg		6º/12º
Min. turning radius	mm	3370
Min.width of rectangular channel	mm	3370
Max.travel speed(with load/without load)	Km/h	27/27
Max.lifting speed(with load/without load)	mm/s	330/450
Max.gradeability	%	20
Fork overhang	mm	589
Rear overhang	mm	650
Total weight	Kg	8700
Tread(Front/Rear)	mm	1470/1700
Wheel base	mm	2250
Overall length(with forks)	mm	4709
Overall width	mm	2000
Mast height(mast lowered and upright)	mm	2500
Safety rack height	mm	2464
Min.ground clearance(bottom of mast)	mm	216
Min.ground clearance(bottom of frame)	mm	248
