China Hyundai 20 Tons Hydraulic Excavator R215-7c

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
China Hyundai 20 Tons Hydraulic Excavator R215-7c thumbnail-1
China Hyundai 20 Tons Hydraulic Excavator R215-7c thumbnail-2
China Hyundai 20 Tons Hydraulic Excavator R215-7c thumbnail-3
China Hyundai 20 Tons Hydraulic Excavator R215-7c thumbnail-4
China Hyundai 20 Tons Hydraulic Excavator R215-7c thumbnail-5
China Hyundai 20 Tons Hydraulic Excavator R215-7c thumbnail-6
China Hyundai 20 Tons Hydraulic Excavator R215-7c photo-1
China Hyundai 20 Tons Hydraulic Excavator R215-7c photo-2
China Hyundai 20 Tons Hydraulic Excavator R215-7c photo-3
China Hyundai 20 Tons Hydraulic Excavator R215-7c photo-4
China Hyundai 20 Tons Hydraulic Excavator R215-7c photo-5

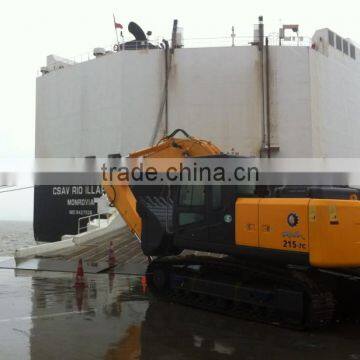

China Hyundai 20 Tons Hydraulic Excavator R215-7c photo-6
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Hyundai
Model Number:
R215-7C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Hyundai
Model Number R215-7C
Condition New
Moving Type Crawler Excavator
Operating Weight 20700kg
Bucket capacity 0.92 M3
Maximum Digging Height 9730mm
Maximum Digging Depth 6800mm
Machine Weight 20700kg
Max Digging Radius 3440mm
Rated Speed 3.5-5.2km/hr
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Hyundai R215-7C Excavator


1.B5.9-C engine
2.CAPO computer-controlled, self-diagnostic system
3.0.92 m3 bucket

China hyundai 20 tons hydraulic excavator r215-7cChina hyundai 20 tons hydraulic excavator r215-7cChina hyundai 20 tons hydraulic excavator r215-7c



Specification



Operation Weight :                                        20700kg

Bucket Capacity :                                         0.92m³

Engine Model:                                               B5.9-C

Engine Power:                                              112kw/150hp

Travel Speed:                                                3.5-5.2km/hr

Swing Speed:                                               12.5rpm

Grade Ability:                                                35degree

Operation Modth:                                  CAPO computer-controlled, self-diagnostic system.

Dimensions

Boom Length:                                              5650mm

Stick Length:                                                2920mm

Crawler ground length:                                  3360mm

Crawler length:                                             4160mm

Counter weight ground clearance:                  060mm

Tail radius of gyration:                                   2830mm

Total length:                                                  9510mm

Gauge:                                                         2200mm

Total height:                                                 2990mm

Overall width:                                                2800mm

Track shoe width:                                          600mm

Operating range

Max. effective range of mining:                        9930mm

Max. digging depth:                                       6800mm

Max.vertical digging depth:                             6060mm

China hyundai 20 tons hydraulic excavator r215-7cChina hyundai 20 tons hydraulic excavator r215-7cChina hyundai 20 tons hydraulic excavator r215-7cChina hyundai 20 tons hydraulic excavator r215-7cChina hyundai 20 tons hydraulic excavator r215-7cChina hyundai 20 tons hydraulic excavator r215-7c
