China Hyundai 20 Tons R215-7c Crawler Excavator

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
China Hyundai 20 Tons R215-7c Crawler Excavator thumbnail-1
China Hyundai 20 Tons R215-7c Crawler Excavator thumbnail-2
China Hyundai 20 Tons R215-7c Crawler Excavator photo-1
China Hyundai 20 Tons R215-7c Crawler Excavator photo-2
US$ 1,000 - 98,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Hyundai
Model Number:
R215-7C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Hyundai
Model Number R215-7C
Condition New
Moving Type Crawler Excavator
Operating Weight 20700kg
Bucket capacity 0.92 M3
Maximum Digging Height 9730mm
Maximum Digging Depth 6800mm
Machine Weight 20700kg
Max Digging Radius 3440mm
Rated Speed 3.5-5.2km/hr
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas

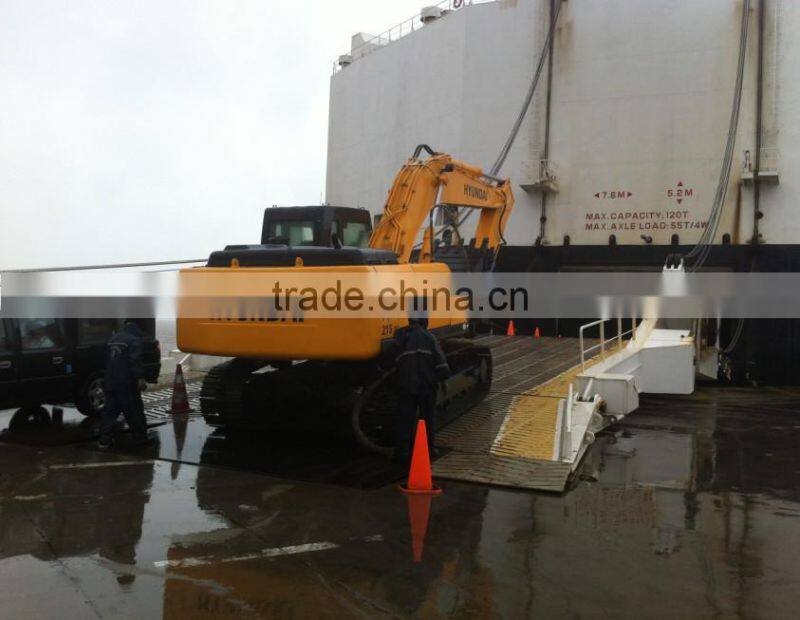

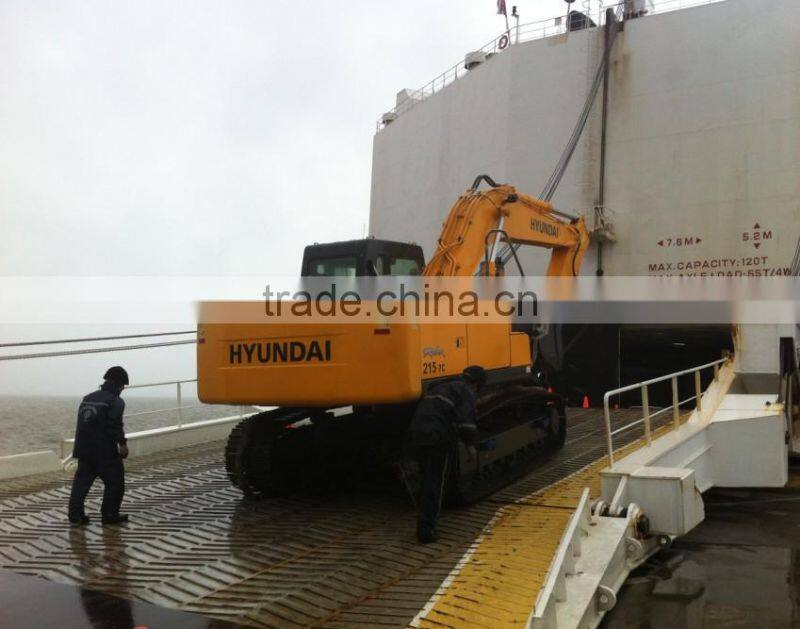

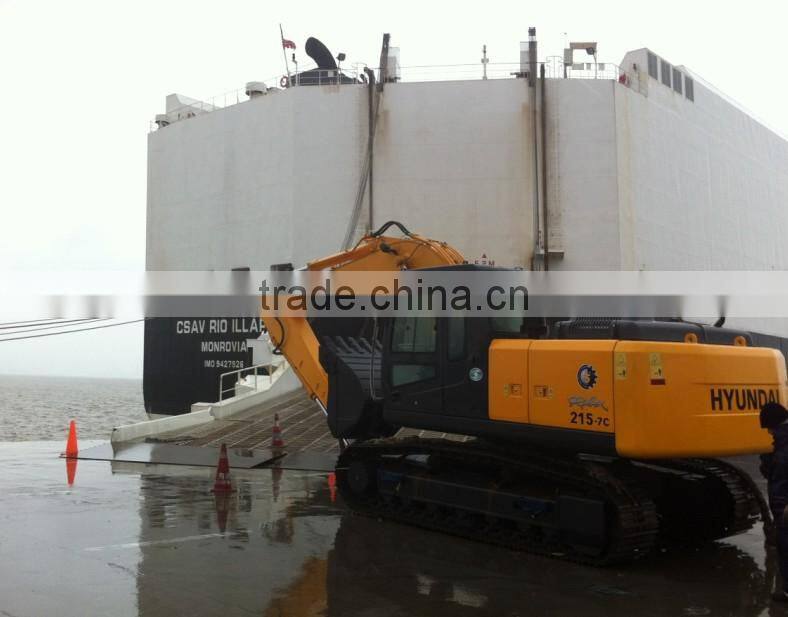

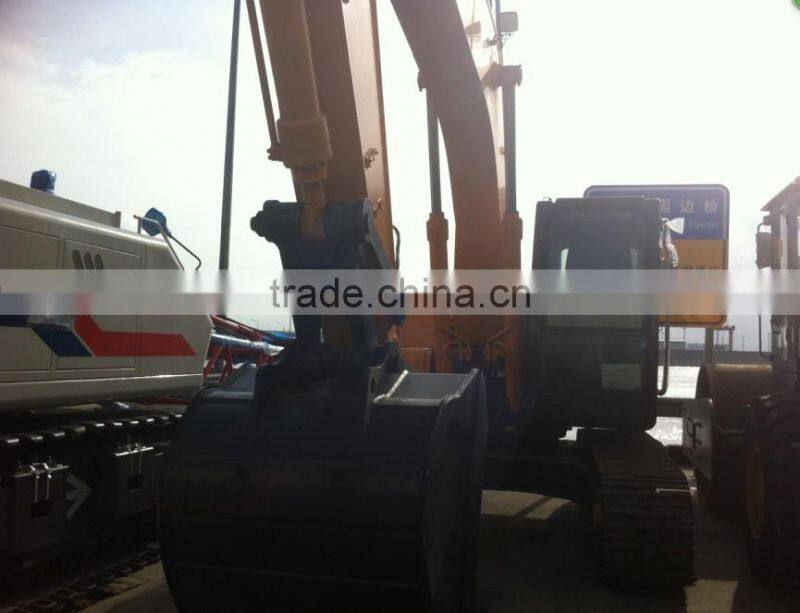

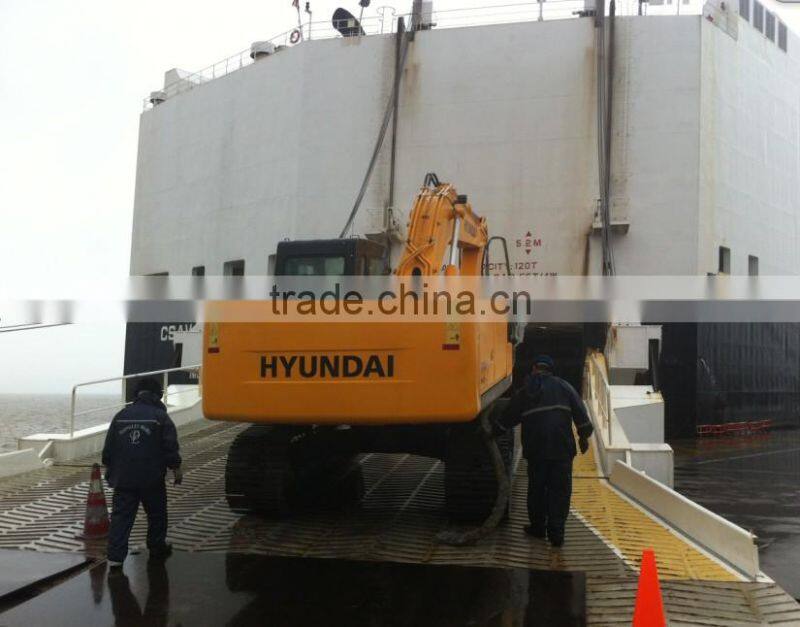

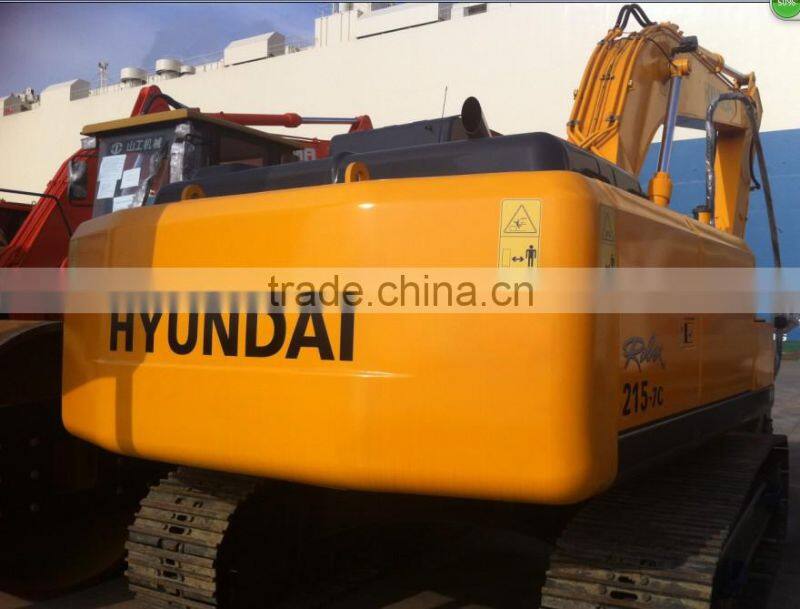

China hyundai 20 tons r215-7c crawler excavator


1.B5.9-C engine
2.CAPO computer-controlled, self-diagnostic system
3.0.92 m3 bucket





Specification







Operation Weight :                                        20700kg



Bucket Capacity :                                         0.92m³



Engine Model:                                              B5.9-C



Engine Power:                                              112kw/150hp



Travel Speed:                                                3.5-5.2km/hr



Swing Speed:                                               12.5rpm



Grade Ability:                                                35degree



Operation Modth:                                  CAPO computer-controlled, self-diagnostic system.



Dimensions



Boom Length:                                              5650mm



Stick Length:                                                2920mm



Crawler ground length:                                  3360mm



Crawler length:                                             4160mm



Counter weight ground clearance:                  060mm



Tail radius of gyration:                                   2830mm



Total length:                                                  9510mm



Gauge:                                                         2200mm



Total height:                                                 2990mm



Overall width:                                                2800mm



Track shoe width:                                          600mm



Operating range



Max. effective range of mining:                        9930mm



Max. digging depth:                                       6800mm



Max.vertical digging depth:                             6060mm



China hyundai 20 tons r215-7c crawler excavatorChina hyundai 20 tons r215-7c crawler excavatorChina hyundai 20 tons r215-7c crawler excavator





China hyundai 20 tons r215-7c crawler excavatorChina hyundai 20 tons r215-7c crawler excavatorChina hyundai 20 tons r215-7c crawler excavatorChina hyundai 20 tons r215-7c crawler excavatorChina hyundai 20 tons r215-7c crawler excavatorChina hyundai 20 tons r215-7c crawler excavator
