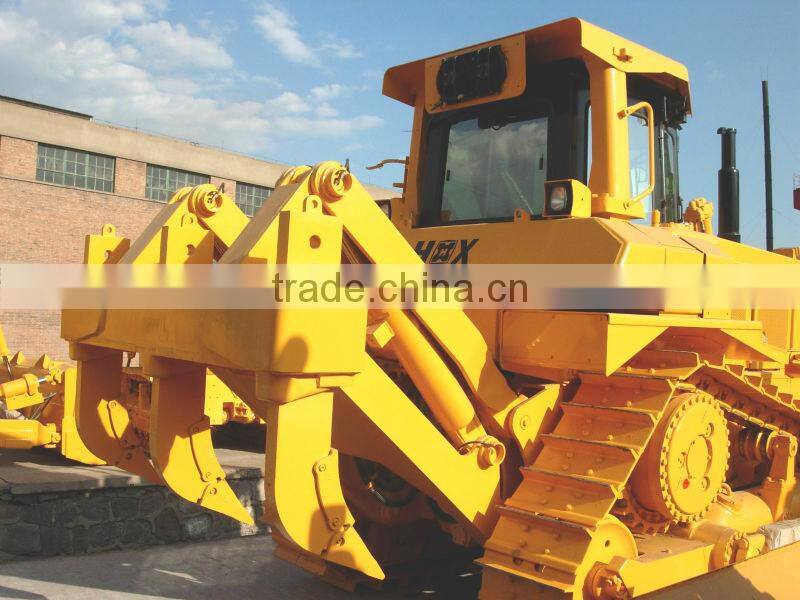

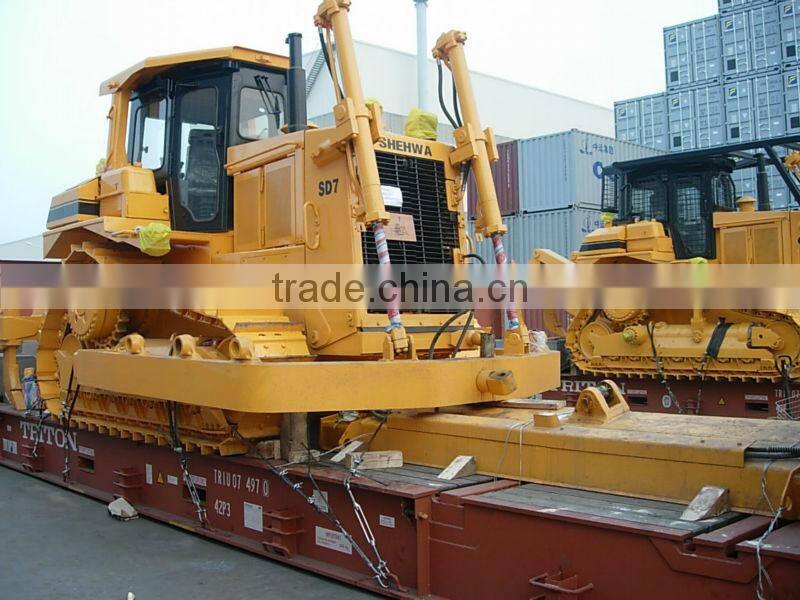

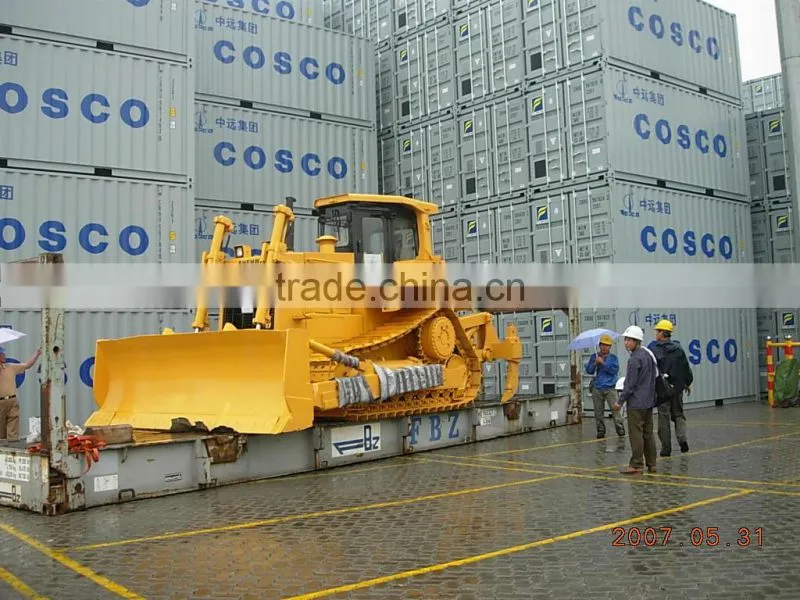

HBXG Brand New sd7 bulldozer (SD7)
Specifications
Dozer Tilt
(not including ripper) Operation weight (Kg) 23800 Ground pressure(KPa) 71.9
Track gauge(mm) 1980
Gradient 30°/25°
Min. ground clearance (mm) 404
Dozing capacity (m³) 8.4
Blade width (mm) 3500
Max. digging depth (mm) 498
Overall dimensions (mm) 5677×3500×3402
(including ripper) 7616×3500×3402
Engine
Type NTA855-C280S10
Rated revolution (rpm) 2100
Flywheel power (KW/HP) 169/230
Max. torque (N•m/rpm) 1097/1500
Rated fuel consumption(g/KW•h) ≤235
Undercarriage system
Type The track is triangle shape.
The sprocket is elevated elastic suspended.
Number of track rollers (each side) 7
Pitch (mm) 216
Width of shoe (mm) 560
Gear 1st 2nd 3rd
Forward (Km/h) 0-3.9 0-6.5 0-10.9
Backward (Km/h) 0-4.8 0-8.2 0-13.2
Implement hydraulic system
Max. system pressure (MPa) 18.6
Pump type High pressure gears pump
System output(L/min) 194
Driving system
Torque converter Torque converter is power separating hydraulic-mechanic type
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch. The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
