Specifications
140hp HBXG T140-1 BulldozerHigh quality.
Competitive price.
Best quality and First service

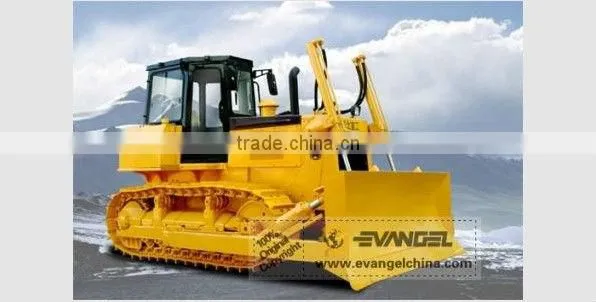

HBXG Bulldozer T140-1
Our company will offer you the high quality proudcts with a low price, Quick delivery,and professional after-sale service.
Features— HBXG Bulldozer T140-1
It has characteristic of semi-rigid suspension, mechanical drive. The main clutch is hydraulic boosted. With hydraulic pilot controlled, electric monitoring, good appearance, it is widely used in road building, hydro-electric construction, field modification, port and mine development and other construction.
Parameter— HBXG Bulldozer T140-1
Dozer |
|
Angle |
Tilt |
Operation weight |
kg |
16600 |
16500 |
Ground pressure |
kpa |
63.3 |
62.9 |
Track gauge |
mm |
1880 |
1880 |
Min. Ground clearance |
mm |
400 |
400 |
Gradient |
º |
30/25 |
30/25 |
Dozing capacity |
m3 |
4 |
4.5 |
Blade width |
mm |
3762 |
3297 |
Max.digging depth |
mm |
400 |
400 |
Overall dimensions |
mm |
5486X3762X2842 |
5336X3297X2842 |
Engine | ||
Type |
|
WD10G156E26 |
Rated revolution |
rpm |
1800 |
Reted power |
KW |
104 |
Max. Torque |
N.m/rpm |
780/1000-1200 |
Rated fuel consumption |
g/KW.h |
≤ 215 |
Undercarriage system | ||
Type |
|
Swing type of sprayed beam.Suspended structure of equalizer bar. |
Number of track rollers (each side) |
|
6 |
Number of carrier rollers (each side) |
|
2 |
Pitch |
mm |
203 |
Width of shoe |
mm |
500 |
Gear |
|
1st |
2nd |
3rd |
4th |
5th |
Forward |
km/h |
2.52 |
3.55 |
5.68 |
7.53 |
10.61 |
Back ward |
km/h |
3.53 |
4.96 |
7.94 |
10.53 |
|
Implement hydraulic system | ||
Max. system pressure |
Mpa |
11.76 |
Pump type |
|
CBF-E1009(reverse) |
System output |
L/min |
180 |
Driving system | |
Main clutch |
Normally opened, wet type,, hydraulic booster control |
Transmission |
Normally meshed helical gear drive, coupling sleeve shift and two lever opereation, the transmission have five forward and four backward speeds. |
Steering clutch |
Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated. |
Steering brake |
Brake is oil two direction floating band brake operated by machanical foot pedal. |
Final drive |
The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal. |
