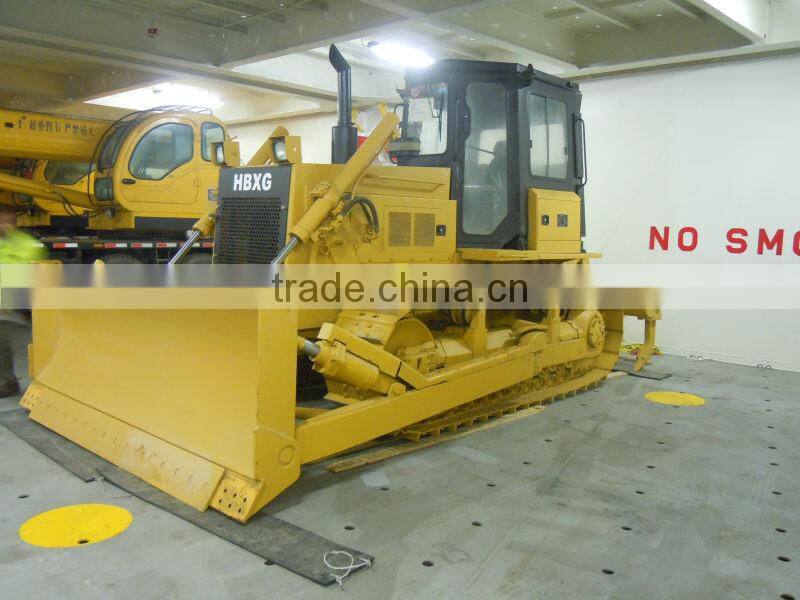

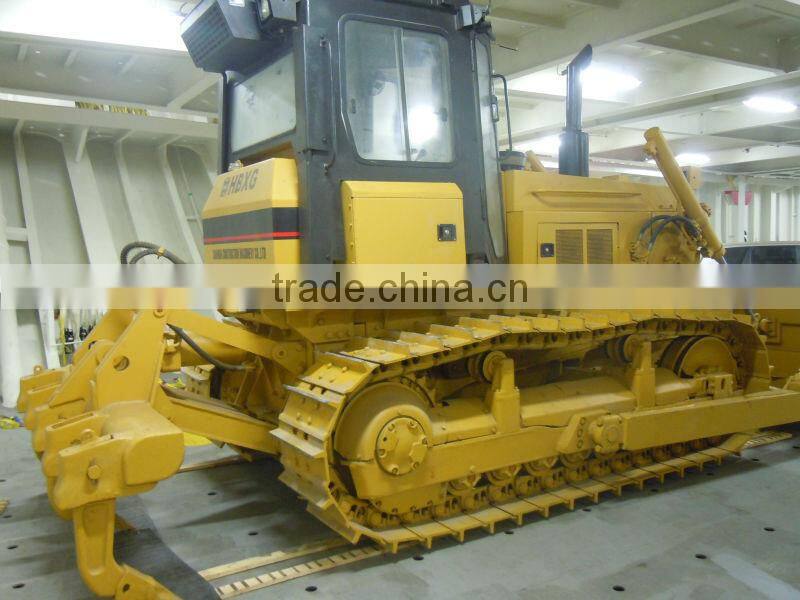

Chinese HBXG 160HP Bulldozer d6 SD6G Bulldozer (SD6G)

Chinese HBXG 160HP Bulldozer d6 SD6G Bulldozer (SD6G) thumbnail-1
Chinese HBXG 160HP Bulldozer d6 SD6G Bulldozer (SD6G) photo-1
US$ 20,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HBXG
Model Number:
SD6G
Contact Supplier Request Quote Chat Now
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HBXG
Model Number SD6G
Condition New
Moving Type Crawler Bulldozer
Machine Weight 16.2t
Dimension(Long * Breadth * High) 5037*3297*3077mm
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Chinese HBXG 160HP bulldozer d6 SD6G bulldozer
sd6g bulldozer sd6g bulldozer
d6 dozer d6 dozer
bulldozer d6
bulldozer d6

Chinese HBXG 160HP bulldozer d6 SD6G bulldozer (SD6G)





Main specifications

Operating weight

16.2t

Ground pressure (at operating weight)

54kpa

Track contact length

2990mm

Overall dimensions(L×W×H)

5037×3297×3077mm (without ripper)

Grade ability

Latitude 30 °   Transverse 25°

Ground clearance

445*mm

Diesel Engine

Model

Turbocharged C6121 diesel engine

Type

Water-Cooled, single-row, vertical, 4-stroke-cycle

Rated speed

1900rpm

Flywheel power

131kw/160HP

Start mode

24V starter motor

Number of cylinders-bore*stroke

6-121*152mm

Displacement

10.5**

Fuel system

Direct injection with individual adjust system free injection pumps and valve

Transmission

Planetary power shift with high-torque-capacity oil clutched, special valve permits fast speed and direction changes. Three speeds forward, three reverse.

Single- stage torque converter with output torque divider combined smoothness with economy. Connected to transmission by double universal joint for removal. Oil-to-air and oil-to-water heat exchangers cool the torque converter oil.

Gear

Forward  Speed( Km/h)

Reverse     Speed(Km/h)

1

0-4.0

0-4.8

2

0-6.9

0-8.4

3

0-10.8

0-12.9
