HBXG Brand New d7 bulldozer spare part(SD7)

HBXG Brand New d7 bulldozer spare part(SD7)

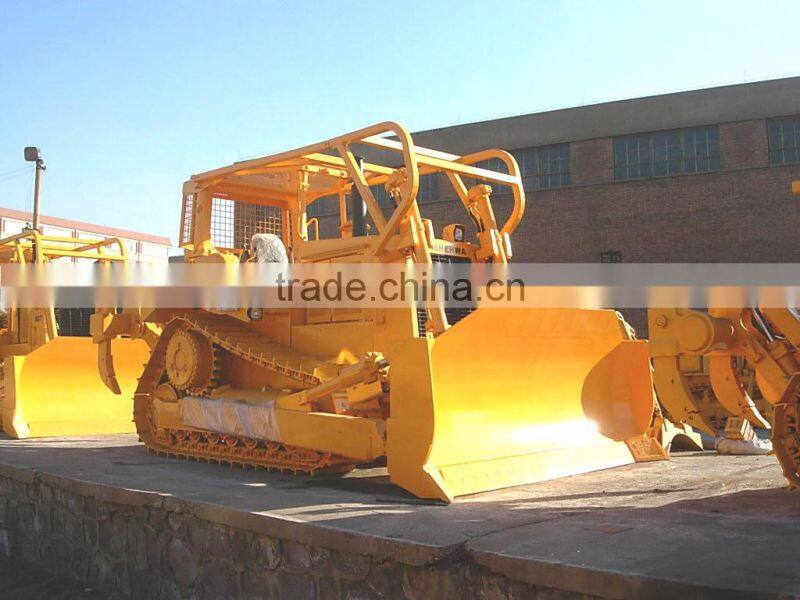

SD7 bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.

SD7-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.

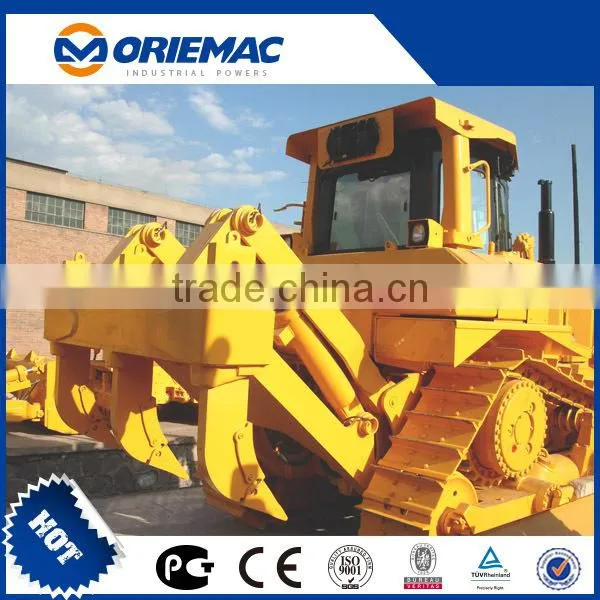

It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.

Specifications

Dozer                                                                          Tilt

(not including ripper) Operation weight (Kg)                                      23800                 Ground pressure(KPa)                                                          71.9

Track gauge(mm)                                                               1980

Gradient                                             30°/25°

Min. ground clearance (mm)                           404

Dozing capacity (m³)                                                               8.4

Blade width (mm)                                       3500

Max. digging depth (mm)                             498

Overall dimensions (mm)                                           5677×3500×3402

(including ripper)                           7616×3500×3402

Engine

Type                                                    NTA855-C280S10

Rated revolution (rpm)                                                          2100

Flywheel power (KW/HP)                                                      169/230

Max. torque (N•m/rpm)                                                     1097/1500

Rated fuel consumption(g/KW•h)                                                  ≤235

Undercarriage system

Type                         The track is triangle shape.

                             The sprocket is elevated elastic suspended.

Number of track rollers (each side)                                                   7

Pitch (mm)                                                                      216

Width of shoe (mm)                                                              560

Gear               1st         2nd         3rd

Forward (Km/h)       0-3.9          0-6.5           0-10.9

Backward (Km/h)       0-4.8         0-8.2           0-13.2

Implement hydraulic system

Max. system pressure (MPa)                                                     18.6

Pump type                                                  High pressure gears pump

System output(L/min)                                                           194

Driving system

Torque converter     Torque converter is power separating hydraulic-mechanic type

Transmission       Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.

Steering clutch.     The steering clutch is hydraulic pressed, usually separated clutch.

Braking clutch       The braking clutch is pressed by spring, separated       hydraulic, meshed type.

Final drive           The final drive is two-stage planetary reduction gear     mechanism, splash lubrication.
