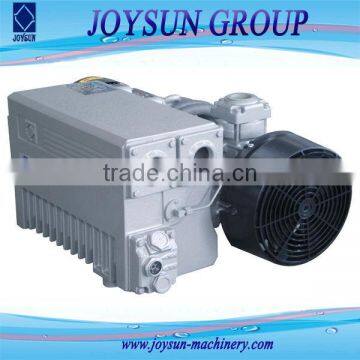

Help Center1# Sing Stage Rotary Vane Vacuum Pump,X Series
Related Products
-
X-25 Single Stage Rotary Vane Vacuum PumpUS$ 254 - 420MOQ: 1 Set -
Reliable Roots Vacuum Pump SetUS$ 1,000 - 10,000MOQ: 1 Set
-
1# Joysun Rotary Vane Vacuum Pump (X-10, 0.1-0.5mbar)US$ 1,000 - 10,000MOQ: 1 Set
-
1# X-63 Single Stage Rotary Vane Vacuum PumpUS$ 738 - 1,120MOQ: 1 Set
-
10000L/H 0.5HP X-10 Single Stage Rotary Vane Vacuum PumpUS$ 254 - 420MOQ: 1 Set
Specifications
1. Sing stage rotary vane vacuum pump2. 10-250m3/h
3. utmost pressure of 0.1mbar
4. suitable for woodwork, printing field
Principle of Vacuum:
Inside the round pump body with sucking and exhausting valves, there installed a centrifugal rotor trough with three vanes driven by centrifugal power. The vanes separate the pump inner space into three parts and the respective volume changes periodically while the rotor turns. The sucking, compressing and exhausting stages eliminate the air at the inlet and achieve the state of vacuum.
Good Characteristic:
1. High utmost vacuum rate, it can be less than 0.5mbar
2. High deflating speed
3. Low noise while working, lower than 67db
4. Strong capacity in deflating the vapor
5. Protecting environment; an oil fog clearer is set in the vacuum pump, and no oil fog in the exhaust air
6. Compact structure, scientific and reasonable design, and it is easy to install in the industry system
Application Range of Single-stage Rotary Vane Vacuum Pump:
Packaging, Sticking
--Packaging used by vacuum or inert gases for varied foods, metal items and electronic elements --Sticking for photographs and advertisement sheets
Lifting, Transportation, Sticking, Loading/Unloading:
--Lifting of glass plate --Sticking of board, plastic plank --Loading/Unloading of non-magnetism item --Loading/Unloading and transportation of paper sheets and paper boards in paper making and printing industry --Transportation of powder materials Drying, Air-eliminating, Dripping:
--Dipping and drying of electronic elements --Air-eliminating of moulds, dopes and vacuum furnaceOthers
--Laboratory Devices --Medical Treatment Devices --Freon Recycling --Vacuum Heat Treatment
Parameter
X-10/21/25
| ITEMS / MODEL | Units | X-10 | X-21 | X-25 |
|---|---|---|---|---|
| Rated Speed | M³/h | 10 | 21 | 25 |
| Utmost Pressure | mbar | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| Noise | dB(A) | 61 | 62 | 62 |
| Work Temperature | °C | 81 | 82 | 82 |
| Oil Consumption | L | 0.5 | 0.5 | 0.5 |
| Vapor Permitted Pressure | mbar | 40 | 40 | 40 |
| Suction Rate of Vapour | kg/h | 0.15 | 0.3 | 0.4 |
| Whorl of Inlet | inch | Rp3/4” | Rp3/4” | Rp3/4” |
| Motor Rated Power | kw | o.37 | 0.75 | 1.1 |
| Motor Rated Rotating Speed | Rpm | 1440 | 2880 | 2880 |
| Total Weight | kg | 17 | 18 | 19 |
| Vacuum Pump Size | cm | 46.5×23.2×20 | 47.3×23.2×20 | 48×23.2×20 |
X-40/63/100
| ITEMS / MODEL | Units | X-40 | X-63 | X-75 | X-100 |
|---|---|---|---|---|---|
| Rated Speed | M³/h | 40 | 63 | 75 | 100 |
| Utmost Pressure | mbar | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| Noise | dB(A) | 64 | 65 | 65 | 66 |
| Work Temperature | °C | 83 | 84 | 84 | 85 |
| Oil Consumption | L | 1.5 | 2 | 2 | 2 |
| Vapor Permitted Pressure | mbar | 40 | 40 | 40 | 40 |
| Suction Rate of Vapor | kg/h | 0.6 | 1 | 1.2 | 1.6 |
| Whorl of Inlet | inch | Rp1 1/4” | Rp1 1/4” | Rp1 1/4” | Rp1 1/4” |
| Whorl of Outlet | inch | Rp1 1/4” | Rp11/4” | Rp11/4” | Rp11/4” |
| Motor Rated Power | kw | 1.1/1.5 | 1.5/2.2 | 1.5/2.2 | 2.2/3 |
| Motor Rated Rotating Speed | Rpm | 1440 | 1440 | 1440 | 1440 |
| Total Weight | kg | 48 | 58 | 60 | 72 |
| Vacuum Pump Size | cm | 65×30×28 | 65×43×29.5 | 67×43×29.5 | 72×43×29.5 |
X-160/202/250/302
| ITEMS / MODEL | Units | X-160 | X-202 | X-250 | X-302 |
|---|---|---|---|---|---|
| Rated Speed | M³/h | 160 | 202 | 250 | 302 |
| Utmost pressure | Mbar | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| Noise | dB(A) | 71 | 73 | 73 | 75 |
| Work temperature | °C | 65 | 72 | 81 | 83 |
| Oil Consumption | L | 5 | 5 | 7 | 7 |
| Vapor Permitted Pressure | Mbar | 40 | 40 | 40 | 40 |
| Suction Rate of Vapour | kg/h | 2.5 | 4 | 4.5 | 5 |
| Whorl of Inlet | inch | Rp2” | Rp2” | Rp2” | Rp2” |
| Whorl of Outlet | inch | Rp2” | Rp2” | Rp2” | Rp2” |
| Motor Rated Power | kw | 4 | 4.5 | 5.5 | 7.5 |
| Motor Rated Rotating Speed | Rpm | 1440 | 1440 | 1440 | 1440 |
| Total Weight | Kg | 157 | 157 | 195 | 211 |
| Vacuum Pump Size | Cm | 85.5×49.5×43.5 | 85.5×49.5×43.5 | 98×56×44 | 101×56×44 |
