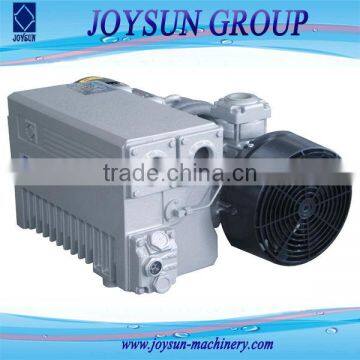

10000L/H 0.5HP X-10 Single Stage rotary Vane Vacuum Pump

Specifications

10000L/H 0.5HP X-10 Single Stage rotary Vane Vacuum Pump
1. rated speed:63m3/h
2. utmost pressure:0.5mbar

  10000L/H 0.5HP X-10 Single Stage rotary Vane Vacuum Pump

 Inside the round pump body with sucking and exhausting valves, there installed a centrifugal rotor trough with three vanes driven by centrifugal power. The vanes separate the pump inner space into three parts and the respective volume changes periodically while the rotor turns. The sucking, compressing and exhausting stages eliminate the air at the inlet and achieve the state of vacuum.



Good Characteristic:

1. High utmost vacuum rate, it can be less than 0.5mbar

2. High deflating speed

3. Low noise while working, lower than 67db

4. Strong capacity in deflating the vapor

5. Protecting environment; an oil fog clearer is set in the vacuum pump, and no oil fog in the exhaust air

6. Compact structure, scientific and reasonable design, and it is easy to install in the industry system Application Range of Single-stage Rotary Vane Vacuum Pump:



Parameter

ITEMS / MODEL	Units	X-10	X-21	X-25
Rated Speed	M³/h	10	21	25
Utmost Pressure	mbar	0.1-0.5	0.1-0.5	0.1-0.5
Noise	dB(A)	61	62	62
Work Temperature	°C	81	82	82
Oil Consumption	L	0.5	0.5	0.5
Vapor Permitted Pressure	mbar	40	40	40
Suction Rate of Vapour	kg/h	0.15	0.3	0.4
Whorl of Inlet	inch	Rp3/4”	Rp3/4”	Rp3/4”
Motor Rated Power	kw	o.37	0.75	1.1
Motor Rated Rotating Speed	Rpm	1440	2880	2880
Total Weight	kg	17	18	19
Vacuum Pump Size	cm	46.5×23.2×20	47.3×23.2×20	48×23.2×20











Mounting Dimensions

Diemensions	A	B	C	D	E	F	G	H	I	J	K	L	M
X-10	232	213	195	26	130	225	178	200	465	210	30	117	G3/4
X-21	232	213	195	26	130	225	178	200	473	210	30	117	G3/4
X-25	232	213	195	26	130	225	178	200	480	210	30	117	G3/4
