Specifications
new condition horizontal Yes fully automatic plastic box Injection Molding Machine1. CE certification
new condition horizontal Yes fully automatic plastic box Injection Molding Machine
We are a Chinese molding machine manufacturer and supplier offering PET plastic injection molding machine.
Features
1. This equipment is applied with a de-dew device to remove the dew on the mould and a chiller to cool the mould.
2. Also, it is equipped with a crusher which is used for recycling defective preforms.
3. It is available with integrated dehumidifier, dryer and loader or individual dryer, dehumidifier, and loader.
4. An optional robot can be used for collecting preforms.
5. This machine comes with clamping force of 80T~ 1000T.

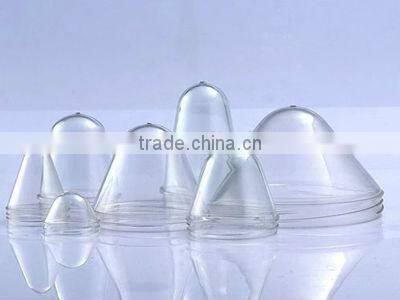

6. The weight of preforms ranges from 16g to 780g and the quantity of cavity is of 1~ 48.
7. The mixer and air compressor are optional.
Flow sheet
Injection Unit
1. Screw with optimum design enjoys features of good plasticity, high efficiency;
2. Big L/D ratio of plasticizing screw;
3. Adjustable back pressure control and melt decompression device;
4. Duel carriage cylinder to maintain consistent nozzle to platen alignment and nozzle pressure, precision and consistency;
5. Linear potent ion meter for mould platen and screw position controls;
6. Injection screw directly driven by a low speed high torque hydraulic motor is suitable for processing preforms. The left diagram is to inject the sketch map.
Clamping Unit
1. Optimize designed five fulcrums and double inclined toggles clamping unit has functions such as big force enlarge rate, high speed placid movement and large mould-open distance;
2. Having hard chromed on the surface, the tie bars is corrosion-resistant and wear resistant;
3. Mechanical and hydraulic eject device with one time or multiple changing processes;
4. Hydraulic motor driven mould adjustment accelerates mould-changing process;
5. Automatic centralized lubrication system;
Hydraulic And Control Unit
1. Easy operated 16BIT CPU multi-function computer;
2. LCD display panel, clear simple control makes it easy to operate;
3. Alarm message with using statement, easy to troubleshooting;
4. Chinese/English language toggle mode, input and output use photo-coupler to protect damage from out-side votary;
5. 50 sets mould data storage;
6. Close-loop PID tech, is used in temperature control with the advantage of high precision;
7. Shot counters for easier calculation;

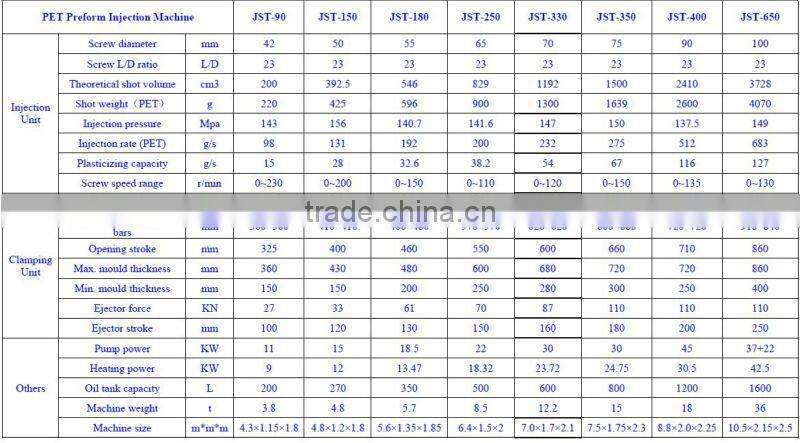

Paramter
Injection Unit
Clamping Unit Hydraulic Unit
Controlling Unit Lubricating system Oil motor
Product
Package by wood
Shanghai Joysun Machinery &Electric Equipment Manufacture is a joint venture company, what is located in east Zhangjiang Hi-tech Industry Park. Company is a High technology enterprise, has two branches in Dubai and Mexico. Company what is devoted to design and manufacture general machine and blowing machine is established in 1995. Now we have tens millions of sales. Our clients all over the world ,such as China , Mexico , Middle East ,Southeast Asia ,Africa, South America ,Russia and so on. Our production win universal praise which is high quality,high cost performance,care produce,easy operate and good after service.
