Specifications
Extrusion Blow Molding Machine1. PLC intelligent control system
2. imported proportional valve
3.long service life
Application of JKB Plastic Extrusion Blow Molding Machine:
JKBA Extrusion blow molding machine is used to produce all kinds of plastic bottles such as PVC, PE, PP, barrels and other containers in regular shapes. Our extrusion blow molding machines are characterized by high productivity, energy efficiency, good molding quality and pollution-free quality.
Flow Chart
Characteristics:
1. PLC+touch screen, making the operation easy. Automatic malfunction alarm with selfdiagnosis, making the malfunction clear at a glance.
2. Accumulator die head whose runner is made by high-quality mitrede alloy steel with morrorsurface treatment, material and colour qucik reload.
3. Unique "linear guide" to the clamping structure to ensure mold-lock uniform, knit line smoother.
4. Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20%-40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
5. Various functions are optional because of different technical requirements such as bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, manipulator, thickness control system, etc.
Configuration:
Siemens PLC, Italy pneumatic component, international famous electric component.
Parameter:
| ITEM | UNIT | JKBA82-25PC | JKBA80-30l | JKBA90-60L |
| Max. Product VOLUME | L | 25 | 30 | 60 |
| Dry Cycle | pcs/h | 600 | 650 | 500 |
| Screw Diameter | mm | 82 | 80 | 90 |
| Screw L/D Ratio | L/D | 38 | 25 | 25 |
| Screw Drive Power | KW | 30 | 37 | |
| Screw Heating Power | 4Φkw | 16.7 | 16 | 21 |
| Screw Heating Zone | Zone | 8 | 4 | 4 |
| HPDE Output | kg/h | 160 | 100 | 140 |
| Oil Pump Power | kw | 11 | 15 | 18.5 |
| Clamping Force | kn | 215 | 220 | 350 |
| Mold Stroke | mm | 240-620 | 400-830 | 500-1050 |
| Max.Mold Size | W*H(mm) | 600*700 | 600*700 | 700*1050 |
| Accumulator Capacity | L | 1.85 | 4 | 6.6 |
| Max.Die Diameter | mm | 150 | 300 | 350 |
| Die Heating Power | 4Φkw | 4.5 | 11.9 | 17 |
| No. of Heating Zone | Zone | 4 | 4 | 4 |
| Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Air Consumption | m³/min | 0.4 | 0.8 | 1 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 30 | 60 | 85 |
| Machine Size | L*W*H(m) | 6.2*2.3*4.5 | 4.23*2.3*3.5 | 4.75*2.5*3.9 |
| Machine Weight | Ton | 11.8 | 11.5 | 12.8 |
| ITEM | UNIT | JKBA100-90L | JKBA100-120L | JKBA120-160L |
| Max. Product VOLUME | L | 90 | 120 | 160 |
| Dry Cycle | pcs/h | 360 | 360 | 300 |
| Screw Diameter | mm | 100 | 100 | 120 |
| Screw L/D Ratio | L/D | 25 | 28 | 28 |
| Screw Drive Power | KW | 45 | 55 | 75 |
| Screw Heating Power | 4Φkw | 24 | 24 | 30 |
| Screw Heating Zone | Zone | 4 | 4 | 5 |
| HPDE Output | kg/h | 180 | 200 | 250 |
| Oil Pump Power | kw | 22 | 37 | 45 |
| Clamping Force | kn | 500 | 650 | 800 |
| Mold Stroke | mm | 550-1250 | 550-1400 | 600-1500 |
| Max.Mold Size | W*H(mm) | 800*1000 | 800*1250 | 1100*1500 |
| Accumulator Capacity | L | 12 | 14 | 18 |
| Max.Die Diameter | mm | 430 | 450 | 520 |
| Die Heating Power | 4Φkw | 20 | 21 | 25 |
| No. of Heating Zone | Zone | 5 | 5 | 5 |
| Blowing Pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Air Consumption | m³/min | 1.2 | 1.6 | 1.6 |
| Cooling Water Pressure | Mpa | 0.3 | 0.3 | 0.3 |
| Water Consumption | L/min | 100 | 150 | 180 |
| Machine Size | L*W*H(m) | 5.4*2.5*4 | 5.4*2.6*4.2 | 5.8*2.6*4.4 |
| Machine Weight | Ton | 16 | 19 | 22 |

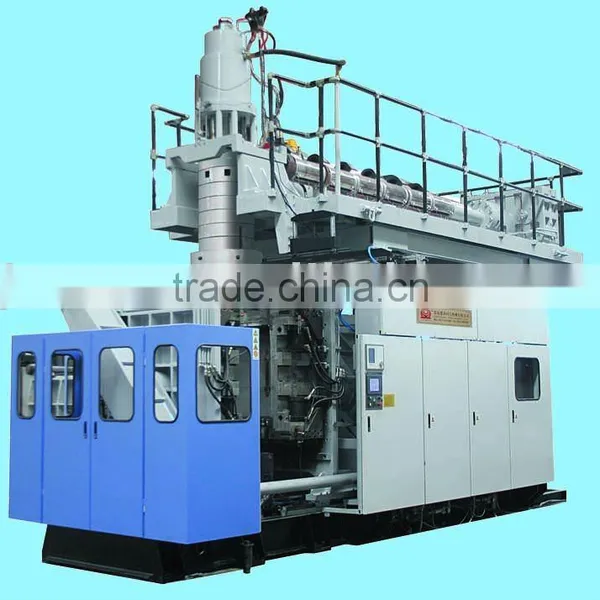

Machine Picture
Mould Picture
Production
