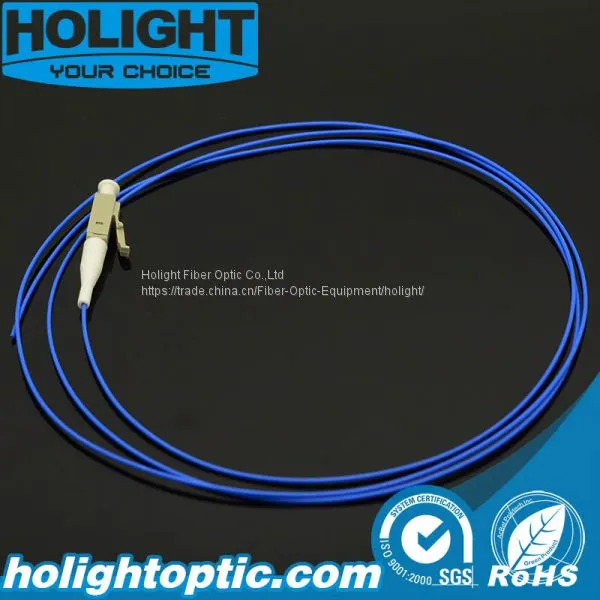

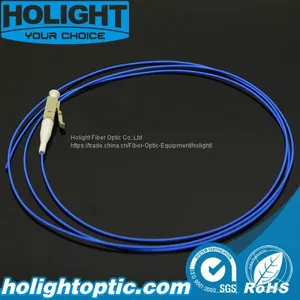

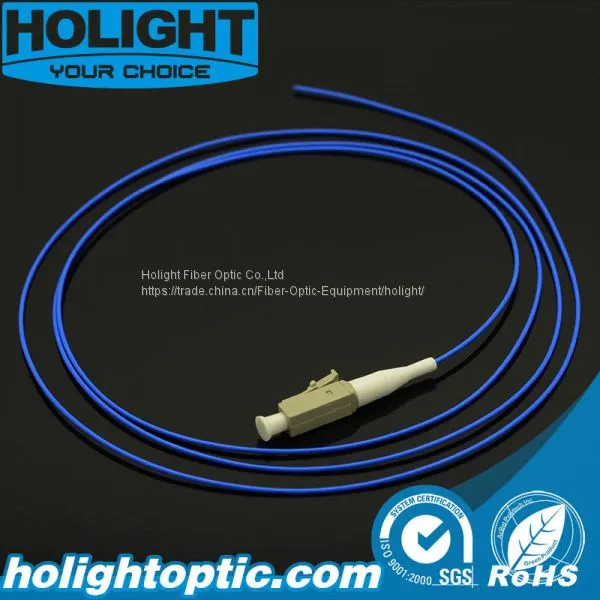

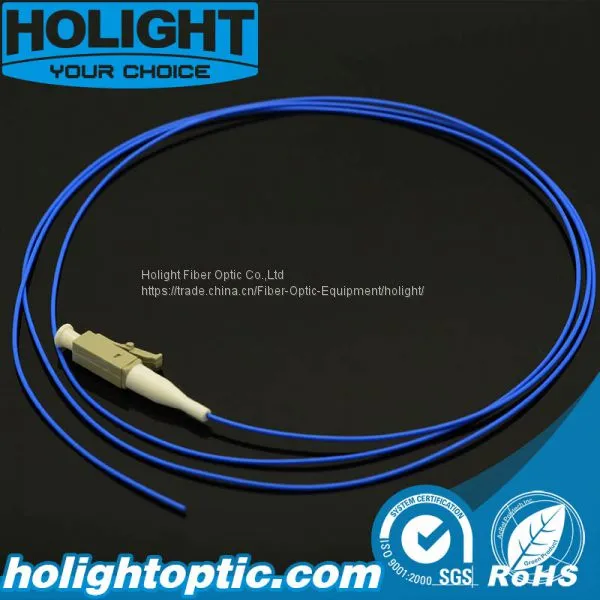

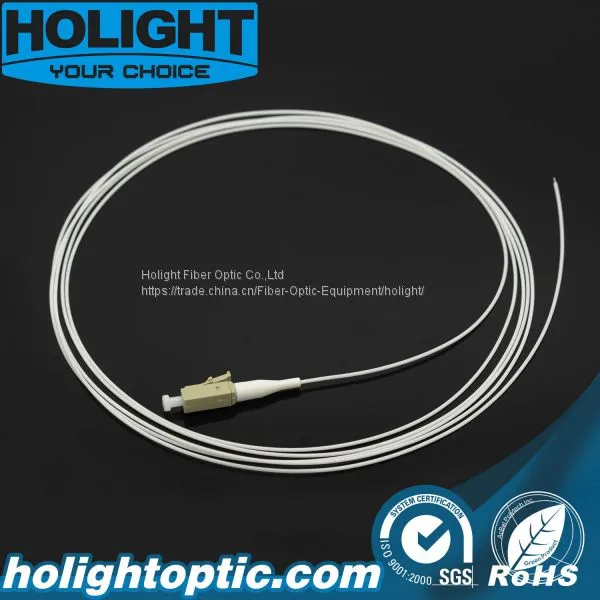

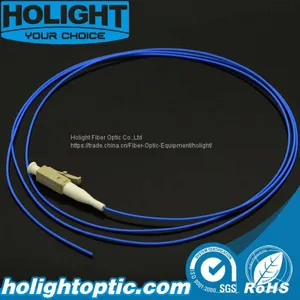

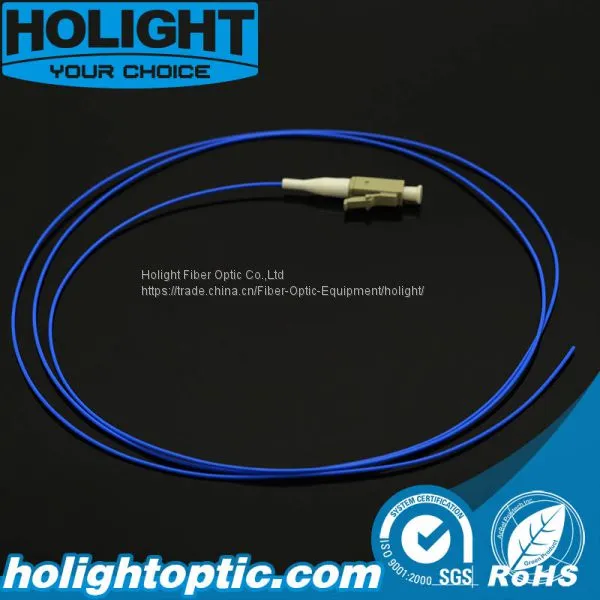

Fiber Pigtail LC mm Om1 Om2 0.9mm
US$ 0.3 - 0.8
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Holight
Place of Origin:
China
Model Number:
P09LG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
5 days
Related Products
Brand Name
Holight
Place of Origin
China
Model Number
P09LG
Description
APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
FEATURE
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard PC/UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.
| FOR PIGTAIL ORDERING INFORMATION | |||||||||
| Cable number |
One side conectors |
Polish type of conectors |
Fiber Type |
Boot (cable) Size |
Fiber Cable Length |
Fiber Cable Jacket |
Fiber Cable Color (Standard) |
||
| Simplex | LC | PC | 9/125μm (SM) | 0.9mm | Customized | LSZH | White (0.9mm) | ||
| - | SC | UPC | 50/125μm (MM) | 2.0mm | - | PVC | Yellow | ||
| - | ST | APC | 62.5/125μm (MM) | 3.0mm | - | OFNP | Orange | ||
| - | FC | - | - | - | - | - | Aqua | ||
| - | E2000 | - | - | - | - | - | - | ||
| - | MTRJ | - | - | - | - | - | - | ||
| - | MPO | - | - | - | - | - | - | ||
| - | MU | - | - | - | - | - | - | ||
| For example: Pigtail-LC 50MM 0.9mm - 1.5m LSZH White | |||||||||
