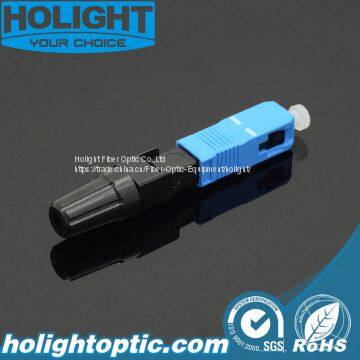

Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.
Application
1. Connections at the desk for LAN environments
2. Optical access network
3. Fiber to the Subscriber (FTTX) applications
4. Patch panels
5. Direct equipment termination
Feature
1. Factory-installed fiber stub
2. No epoxy or polishing required
3. Quick and easy fiber termination in the field
4. Eliminates cable excess length and pigtail splice storage
5. Cost effective
Specification
| Items | Technical Parameters |
| Applicable for | Drop cable 3.1*1.9m, Indoor cable |
| Optical fiber | SM(9/125G657A & G657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | ≥ 45dB |
| Fastening strength of naked fiber | > 5 N |
| Fastening strength of naked fiber holder | > 10 N |
| Tensile strength | > 50 N |
| Using temperature | -40~ 75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB; RL ≤ 5dB |
