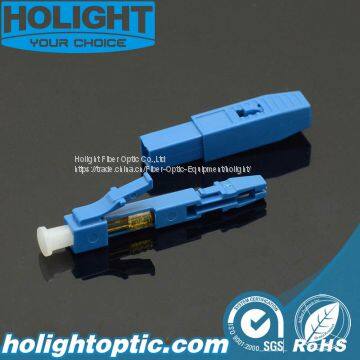

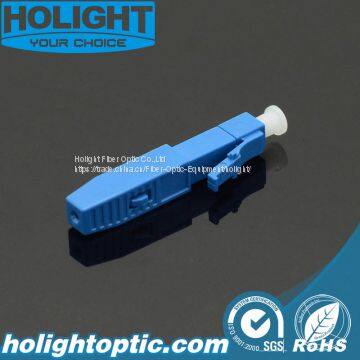

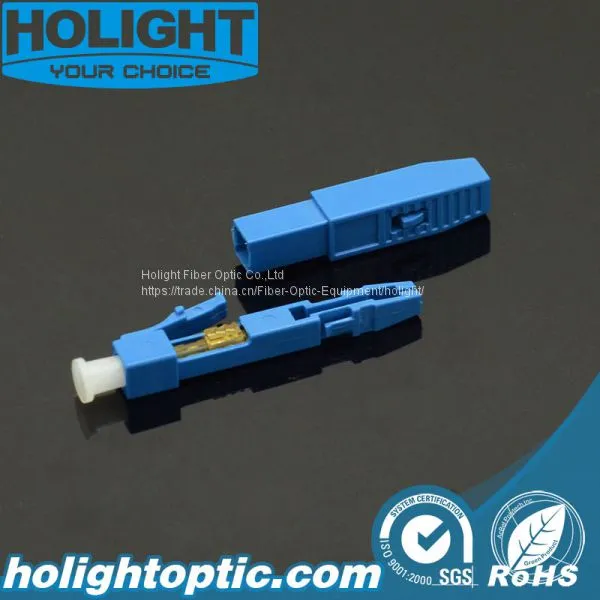

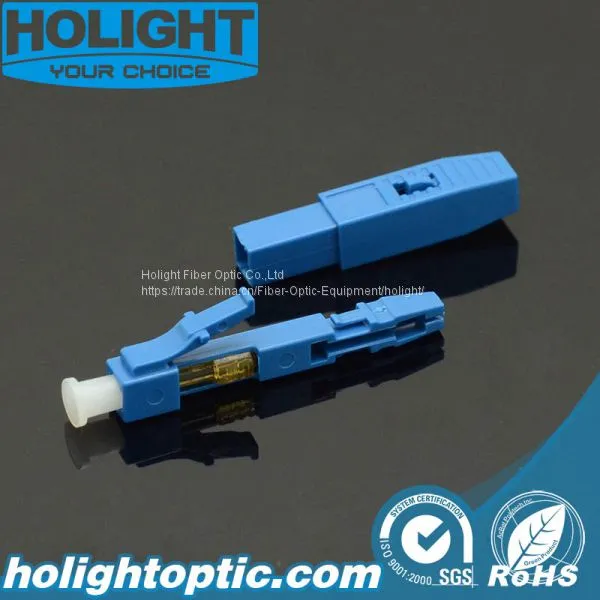

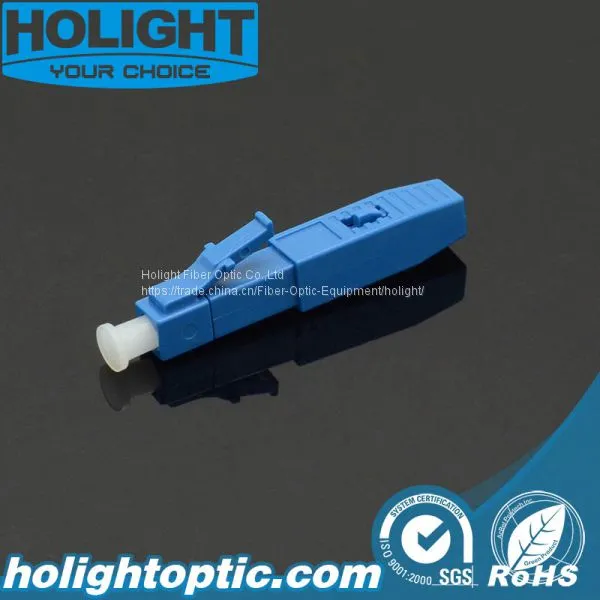

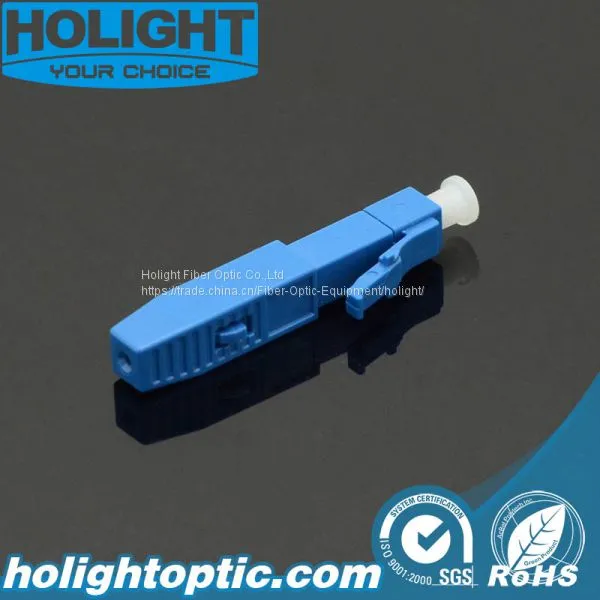

Field Assembly LC fast connector can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.
Feature
· Factory-installed fiber stub
· No epoxy or polishing required
· Quick and easy fiber termination in the field
· Eliminates cable excess length and pigtail splice storage
· Cost effective
Description
· Based on unique box-building crimping technology
· Axially firm fitting of optical fibers,reducing any performance degradation due to loss in the matching gel.
· Uninterrupted fitting and connecting technology,hence signals are free of impact from external force
· The naked fiber,tight buffer and cable,etc, can fully meet the enviromental requirments from the terminals customer.
· Integrated protection of the casing to withstand harsh outdoor environment
· High success rate and easiness in installation with average splicing time of 30sec
· Applicable for FTTx optical fiber splicing and for repairing any damaged lines to realize firm and reliable splicing of fibers.
Application
· Patch panels
· Distribution frames
· Maintenance or emergency restoration of fiber networks
· FTTH Outlets
· Connection at the desk for LAN environments
Specification
| ITEM | Technical Parameters |
| Applicable for | 0.9mm Fiber Cable |
| Optical fiber | 125μm ( G657A & G657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 30s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | UPC≤ -45dB, APC≤ -50dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >8 N |
| Tensile strength | >50 N |
| Using temperature | -40~ 75°C |
| On-line tensile strength (20 N) | IL ≤ 0.2dB; RL ≤ 5dB |
