Description

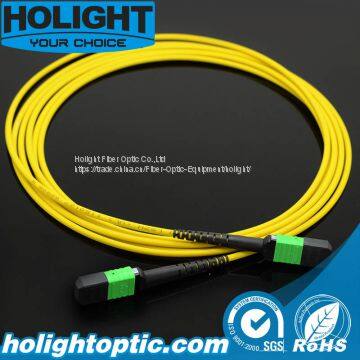

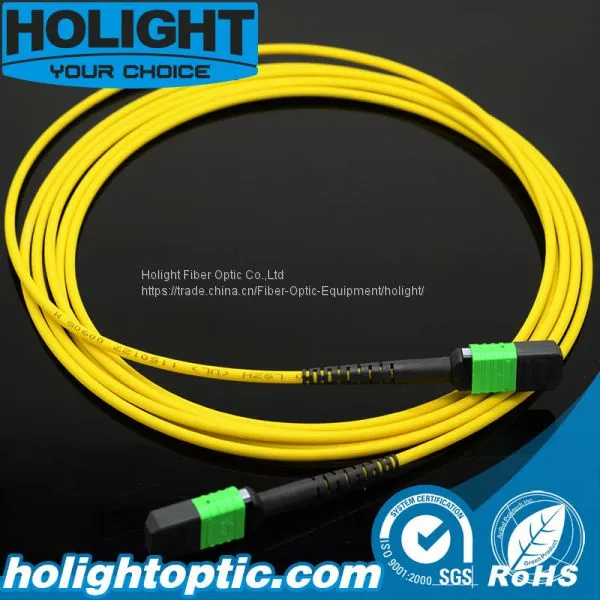

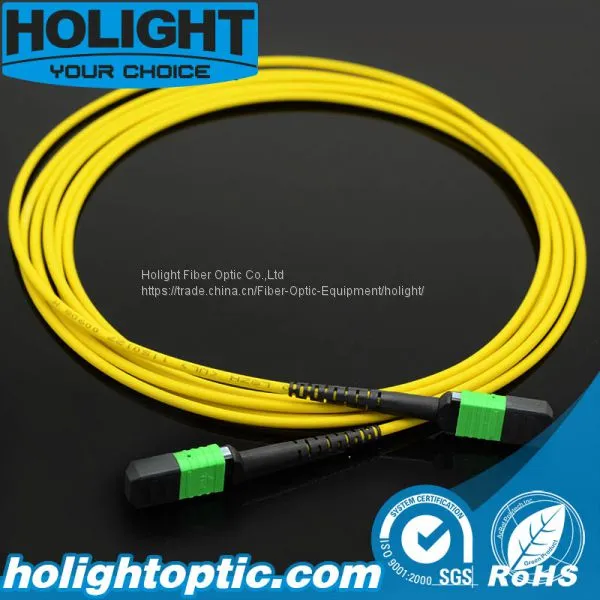

MPO/MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.
· The data centra application with high dense degree environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter, 40G / 100G SFP and SFP .
MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
· MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us!
Features
· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber.
| MPO/MTP Termination | ||||
| Type | Single mode(APC polish) | Multi mode(PC polish) | ||
| Fiber count | 8, 12, 24 etc. | 8, 12, 24 etc. | ||
| Fiber type | G652D, G657A1 etc. | OM1, OM2, OM3, OM4 etc. | ||
| Maximum Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
| ≤0.75 dB | ≤0.35 dB | ≤0.75 dB | ≤0.35dB | |
| Return Loss | ≥55 dB | N/A | ||
| Working Temperature | -40ºC ~ 80ºC | -40ºC ~ 80ºC | ||
| Test Wavelength | 1310nm | 850nm | ||
| All MM SM shall be tested for IL | ||||
Above performance refers to Optic standard grade performance, flexible specification is available to fit for different installation needs.
