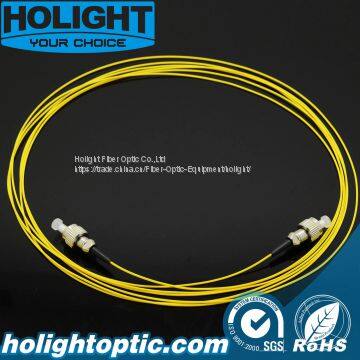

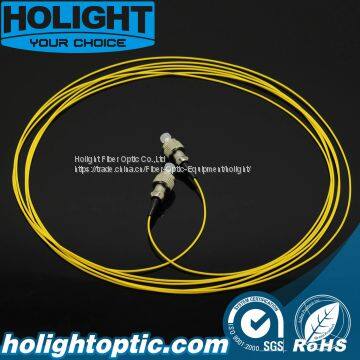

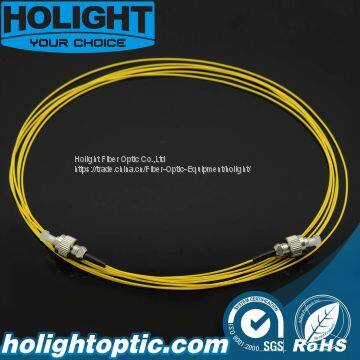

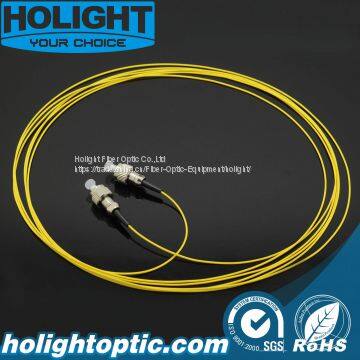

Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Fiber Optic Patch Cord FC to FC 0.9mm Sm Yellow
US$ 1 - 3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Holight
Place of Origin:
China
Model Number:
P02FF0920L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
5 days
Related Products
-
FC APC to FC PC Duplex Singlemode Fiber Optic Patch CordUS$ 1 - 3MOQ: 1 Piece -
E2000 APC to E2000 APC Duplex Fiber Optical Patch CableUS$ 2 - 10MOQ: 1 Piece
-
Fiber Optic Patch Cord E2000A to E2000A Simplex Sm YellowUS$ 2 - 5MOQ: 1 Piece
-
Optical Fiber Jumper Cable FC to E2000A Duplex Sm YellowUS$ 2 - 4MOQ: 1 Piece
-
LC APC to E2000 APC Duplex Sm Yellow Optical Fiber Patch CordUS$ 2 - 4MOQ: 1 Piece
Brand Name
Holight
Place of Origin
China
Model Number
P02FF0920L
APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
FEATURE
· FC-FC connectors;
· For pigtails, one side of FC only;
· Simplex or Duplex version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard PC/UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.
| SPECIFICATIONS | |||||||||||||
| Single mode | Multimode | ||||||||||||
| Insertion Loss | ≤0.2 dB | ≤0.2 dB | |||||||||||
| Return Loss | ≥50 dB (PC) ≥60 dB (APC) | - | |||||||||||
| Repeatability | ≤0.1 dB | ||||||||||||
| Interchangeability | ≤0.2 dB | ||||||||||||
| Durability | plug and unplug 1000 times | ||||||||||||
| Operating Temperature | -40°C ~ 85°C | ||||||||||||
| FOR PATCHCORD ORDERING INFORMATION | |||||||||||||
| Cable number | Both sides conectors | Polish type of conectors | Fiber Type | Boot (cable) Size | Fiber Cable Length | Fiber Cable Jacket | Fiber Cable Color (Standard) | ||||||
| Simplex | LC | PC | 9/125μm (SM) | 0.9mm | Customized | LSZH | Yellow | ||||||
| Duplex | SC | UPC | 50/125μm (MM) | 2.0mm | - | PVC | Orange | ||||||
| Fan-out (4f) | ST | APC | 62.5/125μm (MM) | 3.0mm | - | OFNP | Aqua | ||||||
| Fan-out (6f) | FC | - | - | - | - | - | - | ||||||
| Fan-out (8f) | E2000 | - | - | - | - | - | - | ||||||
| Fan-out (8f) | MTRJ | - | - | - | - | - | - | ||||||
| - | MPO | - | - | - | - | - | - | ||||||
| - | MU | - | - | - | - | - | - | ||||||
| For example: DX-FC/FC SM 0.9mm - 1m LSZH Yellow | |||||||||||||
