Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > 802.11b 802.11g Ieee802.11n 300m Wifi Adapter

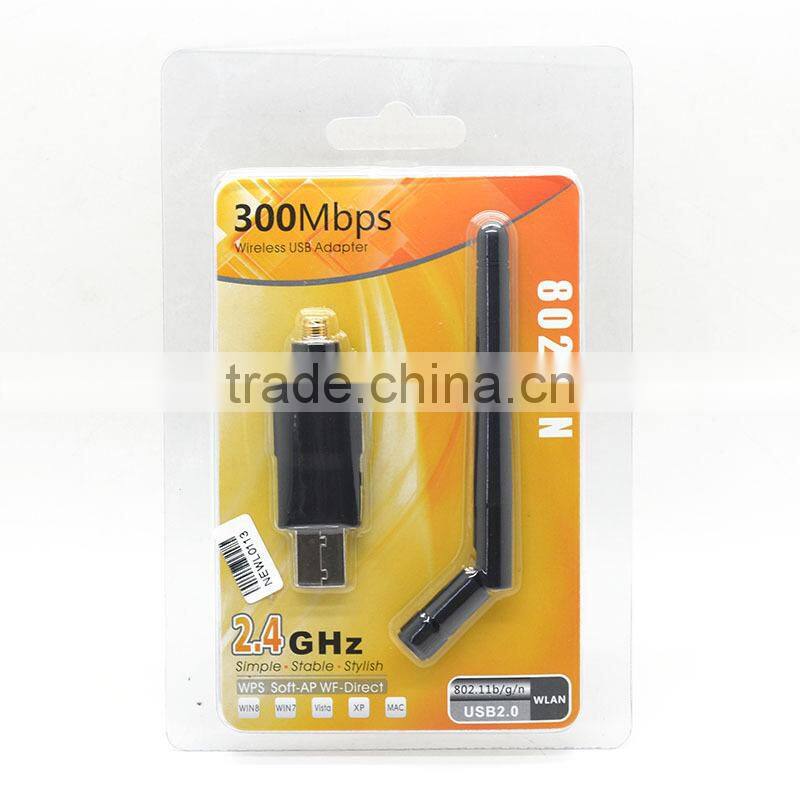

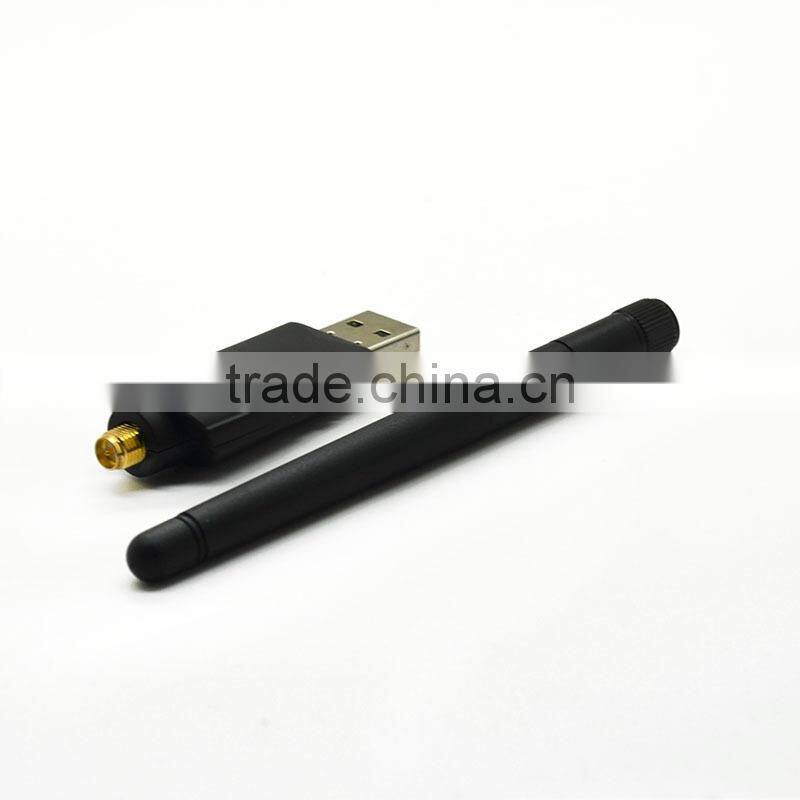

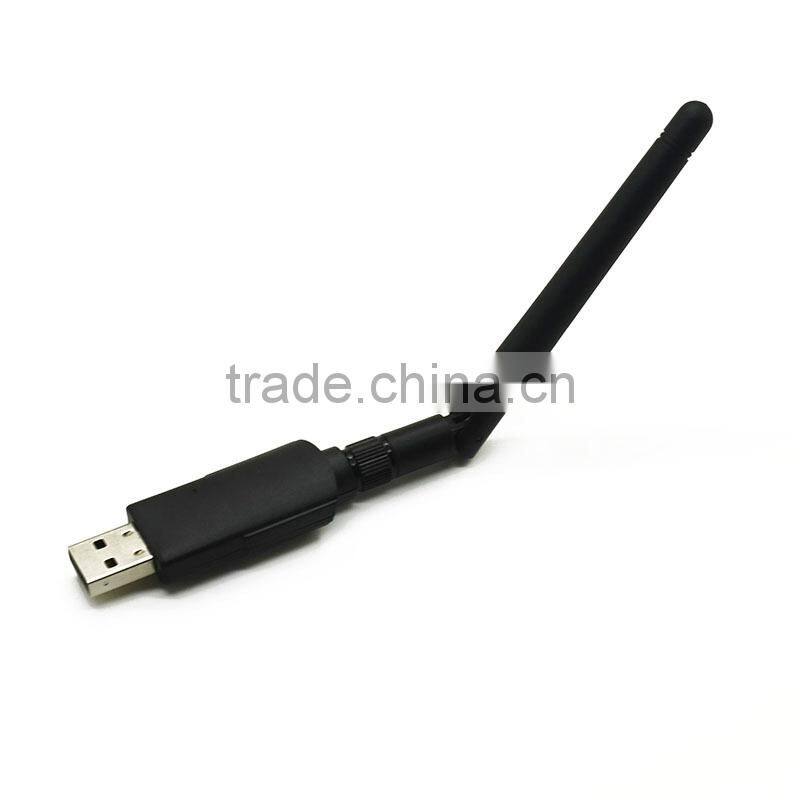

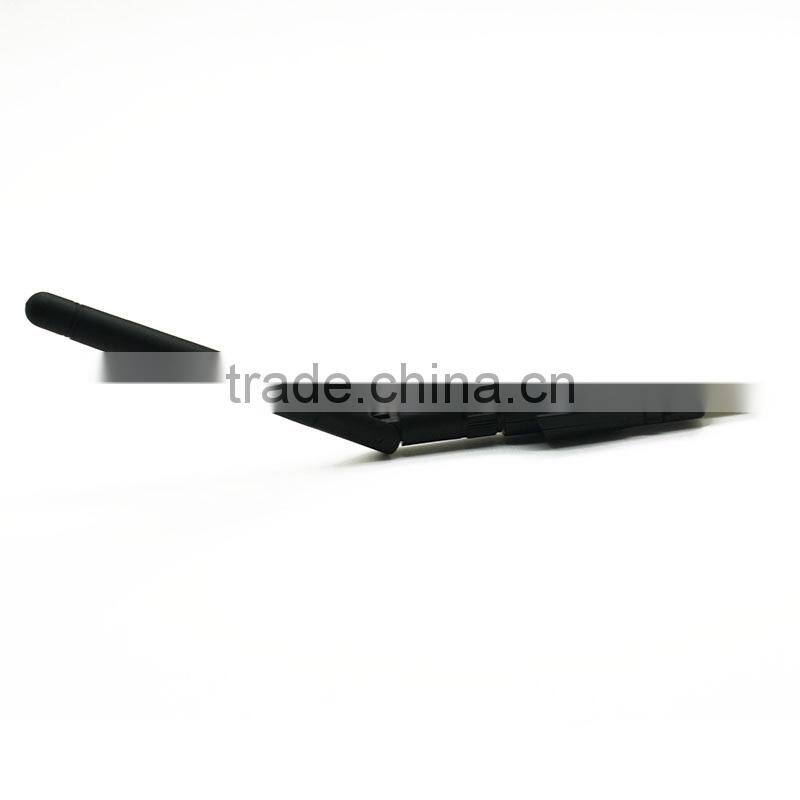

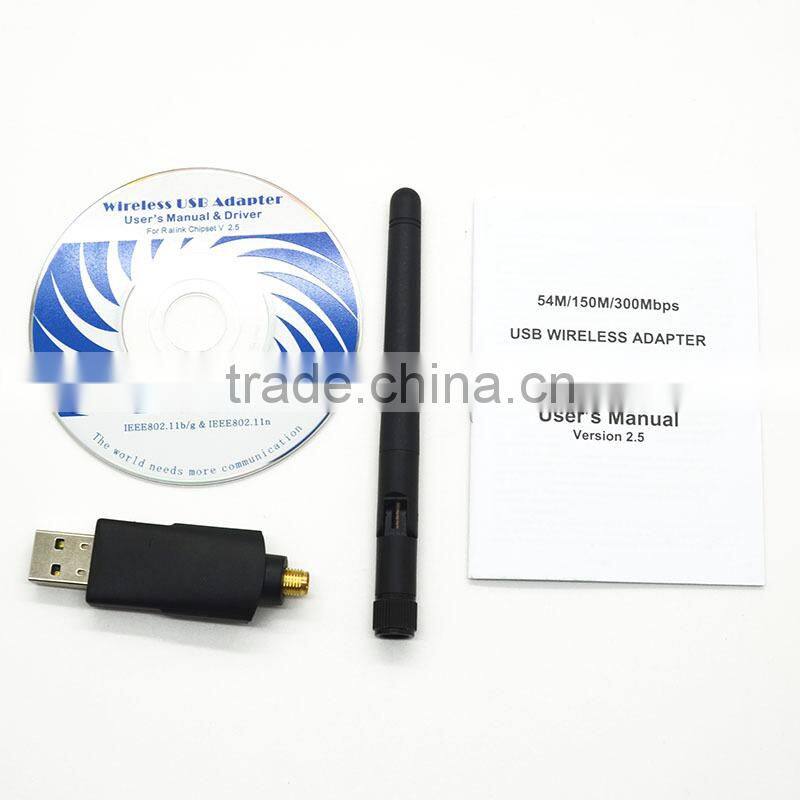

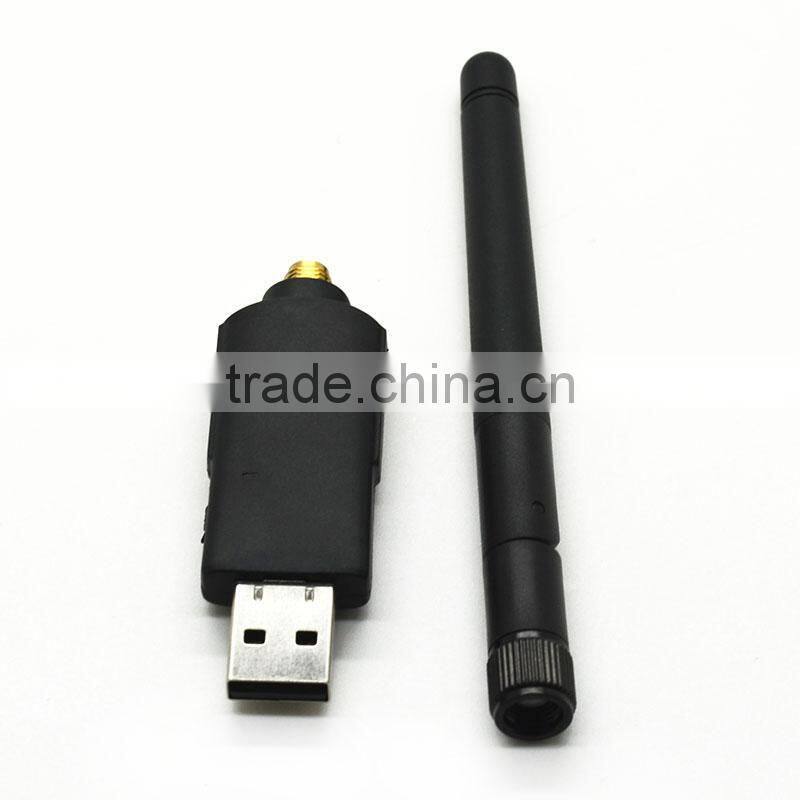

802.11b 802.11g Ieee802.11n 300m Wifi Adapter

Name: 802.11b 802.11g Ieee802.11n 300m Wifi Adapter
Brand: usb wifi adapter
SKU: 140675948
Availability: InStock

USBONLINEDIRECT Communication Co., Ltd. (SHENZHEN)

802.11b 802.11g Ieee802.11n 300m Wifi Adapter thumbnail-1

802.11b 802.11g Ieee802.11n 300m Wifi Adapter photo-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

usb wifi adapter

Model Number:

NEWL0113-0009

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name usb wifi adapter

Model Number NEWL0113-0009

Specifications

802.11b 802.11g ieee802.11n 300m wifi adapter :
1.300Mbps WiFi Adapter
2.with rotatable antenna
3.USB 2.0 Type

802.11b 802.11g ieee802.11n 300m wifi adapter

1. Introduction:

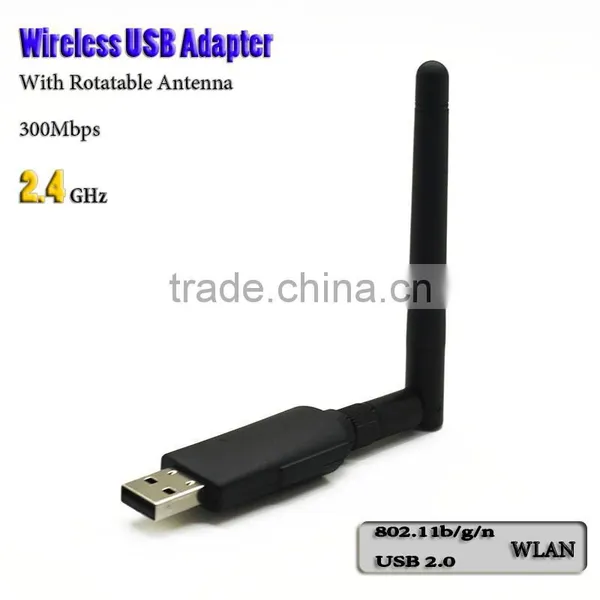

This mini profile WLAN adapter with rotatable antenna supporting IEEE 802.11 b/g/n standards with a Type A USB connector supporting USB 2.0 interface.

1.1 Scope

The GWF-1C6T is a highly integrated MAC/BBP and 2.4GHz RF/PA/LNA single chip with

300Mbps PHY rate supporting. It fully complies with IEEE 802.11b/g and 802.11n standards based on 2T2R MIMO technology with feature-rich wireless connectivity at high standards, delivering reliable, cost-effective throughput from an extended distance.

The GWF-1C6T is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance any time and in any circumstance.

The very small and compact WLAN adapter design is good for wireless connectivity when an external antenna is needed.

1.2 Features

2T2R Mode, with rotatable antennas;
20MHz/40MHz bandwidth;
802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps ;
802.11n: Support PHY rate up to 300Mbps.
Support Soft-AP; QoS-WMM, WMM-PS; WiFi Direct;
WPS button, LED indicates WiFi link&activity;
Multiple BSSID support.
Power management.

2. Product Information

2.1 Block Diagram

2.2 Outline information

3. Specification:

Wifi adapter Version:1.0
IEEE: 802.11 b/g/n 2T2R
PHY Rate:300Mbps WiFi Adapter(with rotatable antenna)
Main Chipset:Ralink RT5372L
Host interface:USB 2.0 Type A
LED Link/ Activity AntennasOne PCB antenna, one rotatable antenna.
Operation FrequencyISM band , 2412~2483.5MHz (Depends on country regions).
Typical Transmit Power
- 802.11b (CCK) 11Mbps: 18+/-1dBm
- 802.11g (OFDM) 54Mbps: 15+/-1dBm
- 802.11n (HT20@MCS7), 14+/-1dBm,(HT40@MCS15),14+/-1dBm
Receive Sensitivity

- 802.11b: -88+/-1dBm; 802.11g: -73+/-1dB
- 802.11n (HT20), -71+/-1dBm;802.11n (HT40), -68+/-1dBm
Operation System
Windows XP/Vista/7; Linux 2.6.X; Mac OS X
Security:WEP 64/128, WPS;WPA/WPA2 (TKIP,AES); WAPI
Voltage Range/Current
- DC 5.0V ± 5% / <300mA @802.11g
Physical Specification
Dimensions
- 63*21*11mm(without external antenna)
- Weight:18g
4. Environment

4.1 Temperature

4.1.1 Operating Temperature

Continuous reliable operation in ambient temperature: -10ºC to +50ºC.

4.1.2 Storage Temperature

The product is not damaged or degraded when keeping in -20ºC to +85ºC.

4.2 Humidity

4.2.1 Operating Humidity Conditions

The product should be capable of continuous reliable operation when subjected to relative humidity in the range of 20% to 80% (non-condensing) .

4.2.2 Non-Operating Humidity Conditions (including warehouse)

The product should not be damaged or degraded when kept in the place (where relative humidity range is in the range of 20% to 80%) for 36 hours.

5. Approvals and Certifications

RoHS and REACH process, FCC, CE undergoing.

6. Disclaimer

THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

We use reasonable efforts to include accurate and up-to-date information on this document; it does not, however, make any representations as to its accuracy or completeness of the information, text, graphics, links or other items contained within these materials. Your use of this Document is at your own risk. Ogemray, its suppliers, and other parties involved in creating and delivering this Document’s contents shall not be liable for any special, indirect, incidental, or consequential damages, including without limitation, lost revenues or lost profits.
