Wenzhou Cooking Equipment Type Jam Cooking Kettle,jacket Pot for Cooking

FOB Price

US$ 1,500 - 5,000 / Set

1 Set(Min. Order)

Port shanghai/ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BLS
Model Number	JCG	Type	Cooking Equipment
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

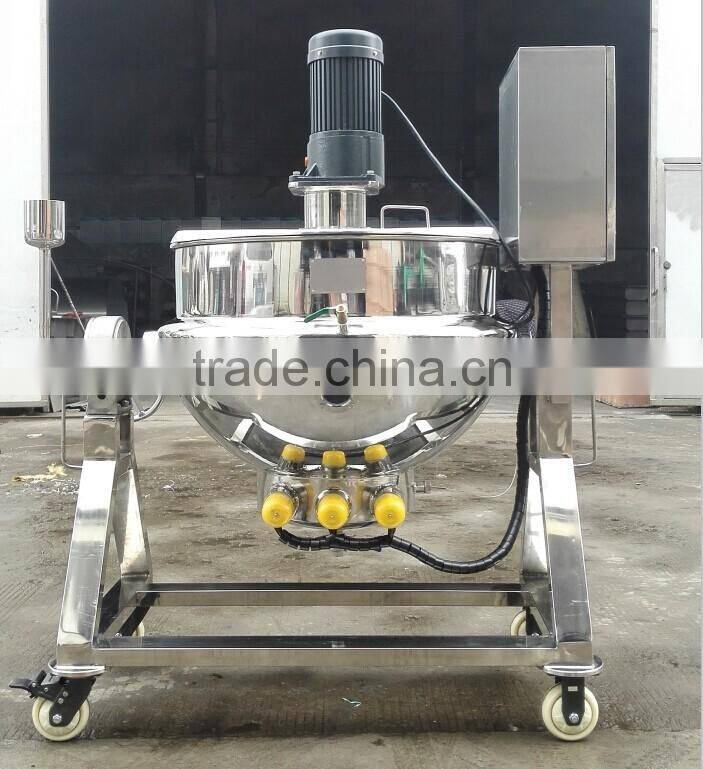

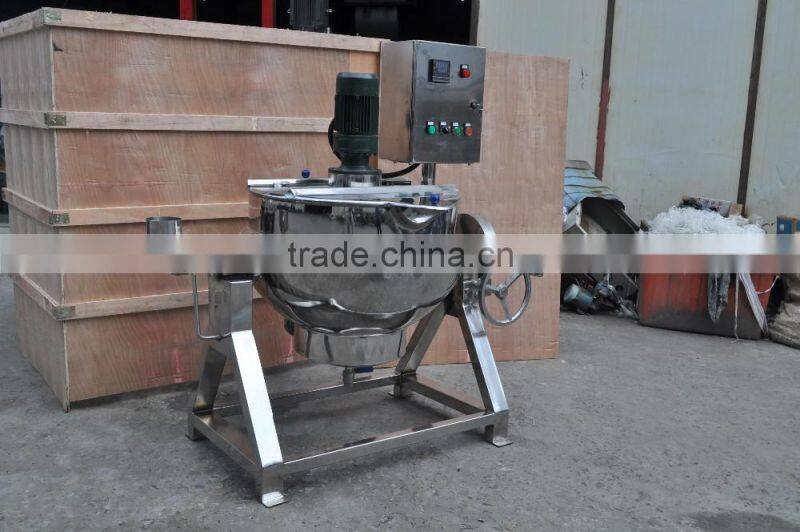

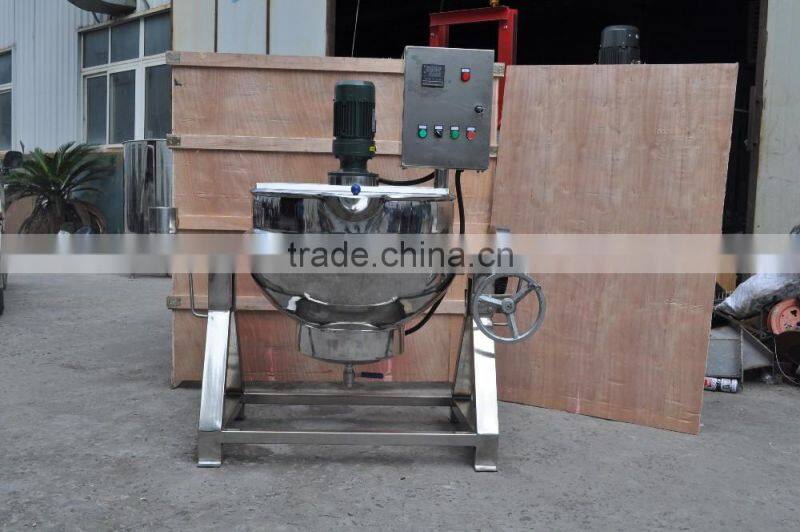

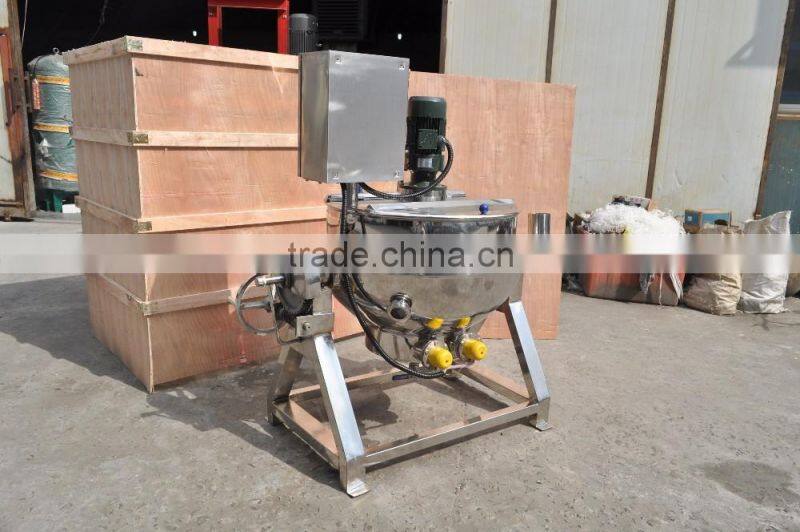

Wenzhou cooking equipment type jam cooking kettle,jacket pot for cooking

Material: stainless steel

Dirve mode: electricity

Standard: GMP

HOT SALE: customized (1. with no jacket/no heating or cooling; 2. with no agitator/no motor)

Product Name:	Cooking equipment type jam cooking kettle,jacket pot for cooking
Description:	Designed according to GMP standard, widely used for cooking feeding material in the food-processing, cosmetics and pharmaceutical industries
Construction:	Kettle, bracket, worm wheel and worm etc.
Heating method	By electricity (oils or water), by steam, by gas
Material:	SS304/SS316L
Capacity:	50L-1000L
Agitator Type:	With PTFE scraper
Mechanical seal:	SIC/SiC/EPDM(Standard)
Motor power:	0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	110-480V
Motor:	Siemens, ABB, LOCAL, 50hz/ 60hz
Surface treatment:	Inner polished and outside polished
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or as per the request of customers
Delivery details:	Usually within 25 working days after receiving T/T down payment

Model	Volume Diameter×Height	Form	Pressure (mpa)	Agitator Speed (r/min)	slope angel	Inlet&Outlet	Motor Power/ Heating Power
JCG-50	50 60×45	Tilting Stirring	0.3	36	90°	1/2”	0.75kw/8kw
JCG-100	100 70×50	Tilting Stirring Fixed	0.3	36	90°	3/4”	1.5kw/15kw
JCG-200	200 80×55	Tilting Stirring Fixed	0.3	36	90°	3/4”	1.5kw/15kw
JCG-300	300 90×65	Tilting Stirring Fixed	0.3	36	90°	3/4”	1.5kw/15kw
JCG-400	400 100×75	Tilting Stirring Fixed	0.3	36	90°	3/4”	1.5kw/15kw
JCG-500	500 110×85	Tilting Stirring Fixed	0.3	36	90°	1”	2.2kw/18kw
JCG-600	600 120×95	Tilting Stirring Fixed	0.3	36	90°	1”	2.2kw/18kw
JCG-1000	1000 1400×115	Tilting Stirring Fixed	0.3	36	90°	1”	3.7kw/30kw

Introduction of Wenzhou Industrial electric kettle for sugar, electric cooking kettle for candy

This machine is suitable for mixing, concentrating and decocting the material in pharmaceutical, foodstuff and chemical industry etc.

It is the best choose for sugar melting and jam making such as the matt jam and strawberry jam making, tomato sauce making and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.

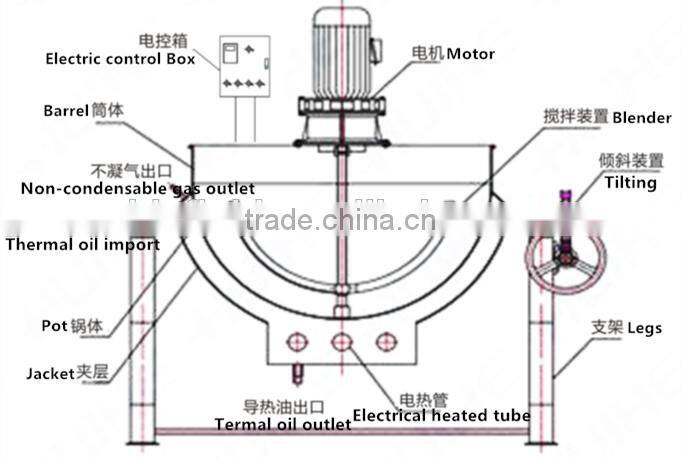

This machine is composed of kettle ,backet ,worm wheel and worm etc.

The melting machine can revolve with 180 degree.

The machine is made of stainless steel SUS304 and 316L, which has perfect corrsion-proof performance, and is highly endurable according to GMP requirements.

Blender also can be added according customer requirements.

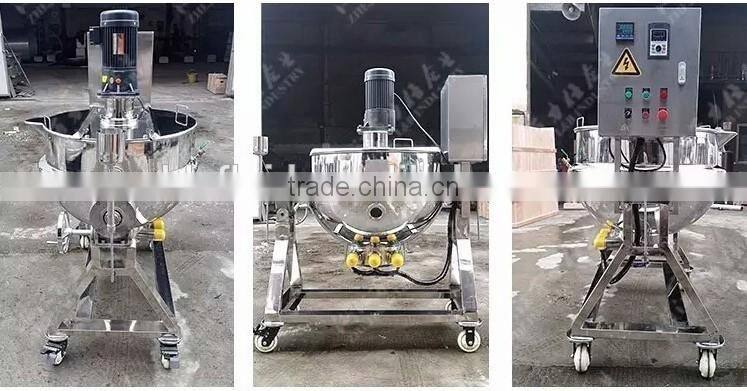

Detailed Image

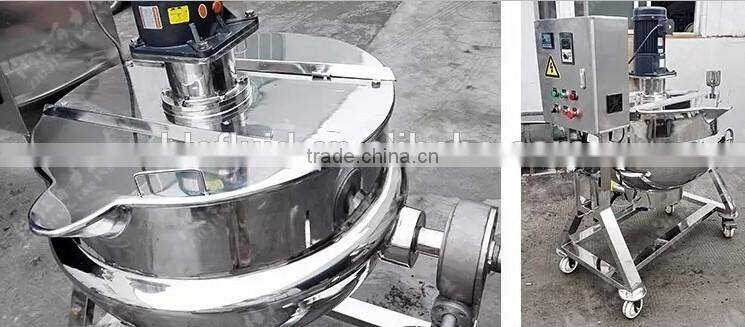

Agitator mixer :

1. Taiwan GPG motor

2. Dismountable engine base

3. Stainless steel bearing

4. Heat resisting seal ring(To prevent the steam into the bearing and speed reducer)

5. No positioning at the bottom of the shaft (Reduce the residual)

Full stainless steel oil cup:

the import of Heat conduction oil, when tilting, the oil won't leak.

swiveling mechanism:

standard configuration, worm wheel and worm are cast iron; SS304 can be Optional. Bracket adopt stainless steel.

Oil filler:

102 pipe diameter

Electrical heated tube:

adopt threaded connection form, convenient assembly.

Scraper:

adopt Import teflon material, easy to clean and disassemble, few dead angle, prevent viscous material from adhering on the wall.

Discharge hole:

adopt Half round design, easy to discharging and no dead angle.

Electric control box:

1. intelligent temperature controller, SS304 box

2. PT100 thermal resistance

3. Electric Components: Germany Schneider

Our company

Zhejiang L＆B Fluid Equipment co., Ltd

a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

Packing & Delivery

Certifications

FAQ

1. Q: How do I pay for my purchase order?
      A:   T/T

2. Q:  What's the MOQ of cooking equipment type jam cooking kettle,jacket pot for cooking?
    A:  Our MOQ of is 1 unit.

3. Q:What's the delivery time?
    A: It will take about 25 workdays to finish an order, but the exact time is according to actual situation.

4. Q: Can I have my own customized product?
    A: Of course, you products can be  customized for example color, logo, design, mark, etc.

5. Q: Do you have quality control?
    A: Yes, we attach great importance to quality control.

6. Q: How about the warranty control?
     A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.

Our Service

Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
Process	Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:	Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a	We will dispatch our Quality and Problems Appraisers to make a confirmation.
b	Have a negotiation of the compensation and sign agreements
c	Our After-Sales Department will perform the duties as the agreements
