Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler

Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler thumbnail-1
Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler thumbnail-2
Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler thumbnail-3
Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler thumbnail-4
Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler thumbnail-5
Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler thumbnail-6
Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler photo-1

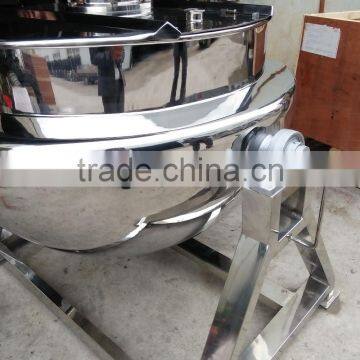

Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler photo-2

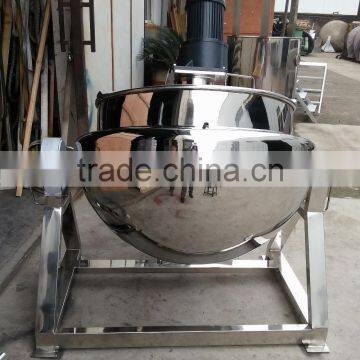

Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler photo-3

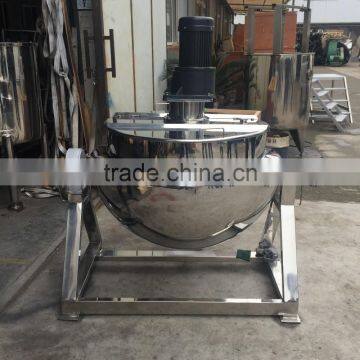

Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler photo-4

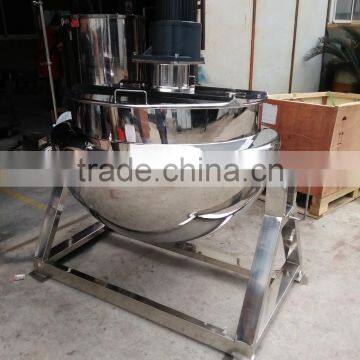

Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler photo-5
Wenzhou Snack Machines Steam Jacket Kettle/Jacketed Pan/Interlayer Boiler photo-6
US$ 3,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BLS
Model Number:
QJ
Contact Supplier Request Quote Chat Now
Zhejiang L And B Fluid Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BLS
Model Number QJ
Type Cooking Equipment
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Product Name:
Stainless snack machines steam jacket kettle/jacketed pan/Interlayer boiler
Description:
Designed according to GMP standard, widely used for cooking feeding material in the food-processing, cosmetics and pharmaceutical industries
Construction:
Kettle, bracket, worm wheel and worm etc.
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316L
Capacity:
50L-1000L

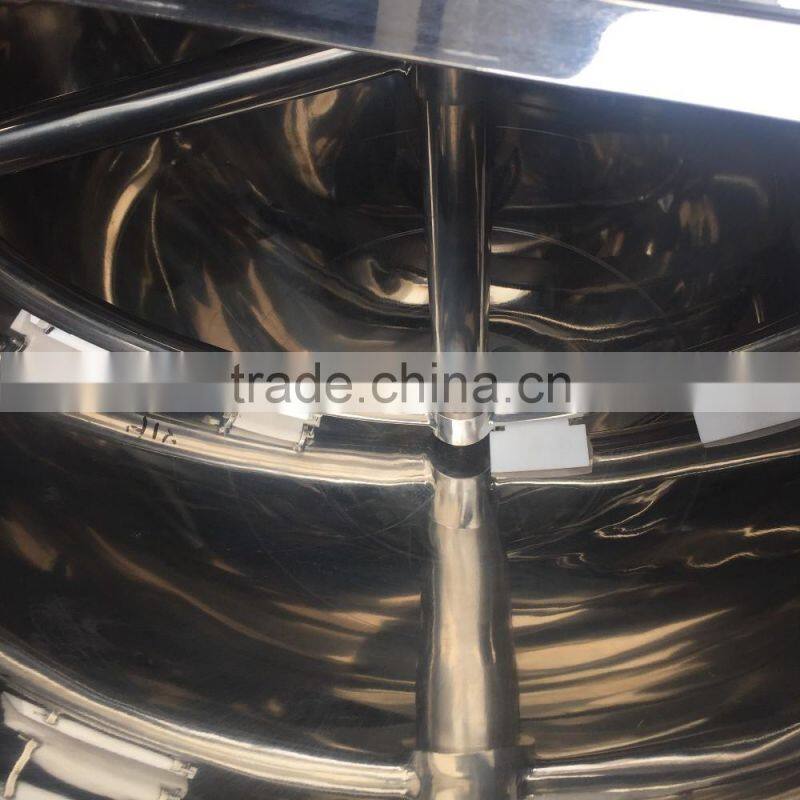

Agitator Type:
With PTFE scraper
Mechanical seal:
SIC/SiC/EPDM(Standard)
Motor power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V

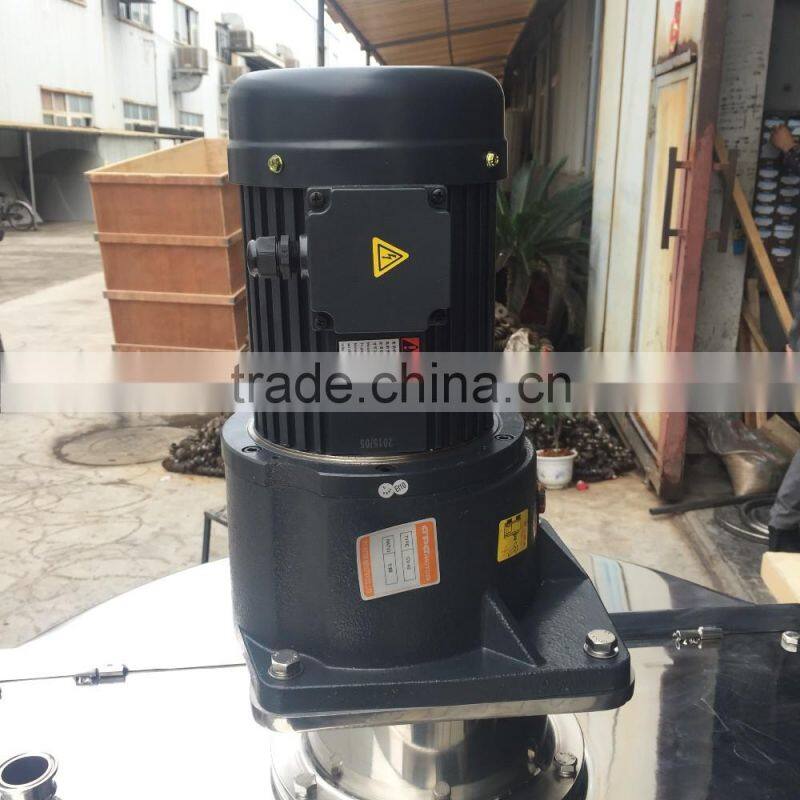

Motor:
Siemens, ABB, LOCAL, 50hz/ 60hz
Surface treatment:
Inner polished and outside polished
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case or as per the request of customers
Delivery details:
Usually within 25 working days after receiving T/T down payment

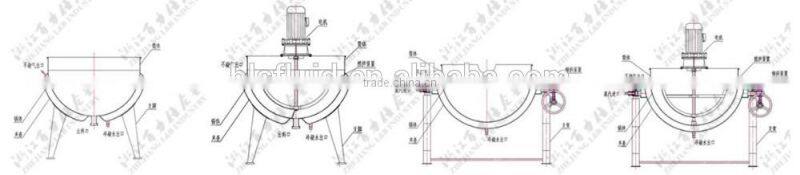

Detailed Images
Model
Volume Diameter×Height
Form
Pressure
(mpa)
Agitator Speed
(r/min)
slope angel
Inlet&Outlet
Motor Power
JCG-50
50

60×45
Tilting

Stirring
0.3
36
90°
1/2”
0.75kw
JCG-100
100

70×50
Tilting Stirring Fixed
0.3
36
90°
3/4”
0.75kw
JCG-200
200

80×55
Tilting Stirring Fixed
0.3
36
90°
3/4”
1.5kw
JCG-300
300

90×65
Tilting Stirring Fixed
0.3
36
90°
3/4”
1.5kw
JCG-400
400

100×75
Tilting Stirring Fixed
0.3
36
90°
3/4”
1.5kw
JCG-500
500

110×85
Tilting Stirring Fixed
0.3
36
90°
1”
2.2kw
JCG-600
600

120×95
Tilting Stirring Fixed
0.3
36
90°
1”
2.2kw
JCG-1000
1000

1400×115
Tilting Stirring Fixed
0.3
36
90°
1”
3.7kw
Packing & Delivery
Certifications
FAQ
Our Company

Zhejiang L＆B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
