Industrial Cooling and Heating SUS Sweet Melting Pot With Mixer

FOB Price

US$ 2,500 - 52,000 / Set

1 Set(Min. Order)

Port shanghai/ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BLS
Model Number	JCG	Type	Cooking Equipment
After-sales Service Provided	Overseas service center available

Product Description

Product Name:	Industrial Cooling and Heating SUS Sweet Melting Pot with mixer
Description:	Designed according to GMP standard, widely used for cooking feeding material in the food-processing, cosmetics and pharmaceutical industries

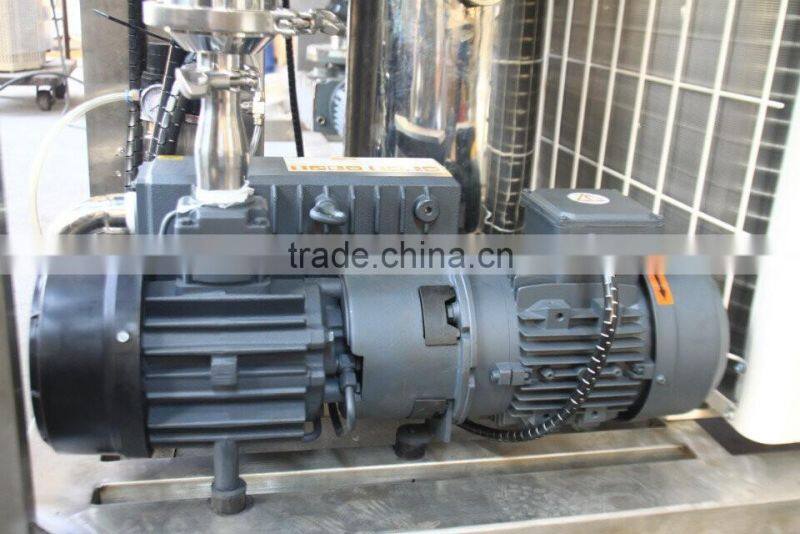

Construction:	Kettle, bracket, vacuume pump and chiller etc.
Heating method	By electricity (oils or water), by steam, by gas
Material:	SS304/SS316L
Capacity:	50L-1000L
Agitator Type:	With PTFE scraper
Mechanical seal:	SIC/SiC/EPDM(Standard)
Motor power:	0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	110-480V
Motor:	Siemens, ABB, LOCAL, 50hz/ 60hz
Surface treatment:	Inner polished and outside polished
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or as per the request of customers
Delivery details:	Usually within 25 working days after receiving T/T down payment

Model	Volume Diameter×Height	Form	Pressure(mpa)	Agitator Speed (r/min)	slope angel	Inlet&Outlet	Motor Power
JCG-50	50 60×45	Tilting Stirring	0.3	36	90°	1/2”	0.75kw
JCG-100	100 70×50	Tilting Stirring Fixed	0.3	36	90°	3/4”	0.75kw
JCG-200	200 80×55	Tilting Stirring Fixed	0.3	36	90°	3/4”	1.5kw
JCG-300	300 90×65	Tilting Stirring Fixed	0.3	36	90°	3/4”	1.5kw
JCG-400	400 100×75	Tilting Stirring Fixed	0.3	36	90°	3/4”	1.5kw
JCG-500	500 110×85	Tilting Stirring Fixed	0.3	36	90°	1”	2.2kw
JCG-600	600 120×95	Tilting Stirring Fixed	0.3	36	90°	1”	2.2kw
JCG-1000	1000 1400×115	Tilting Stirring Fixed	0.3	23	90°	1”	3.7kw

Detailed Images

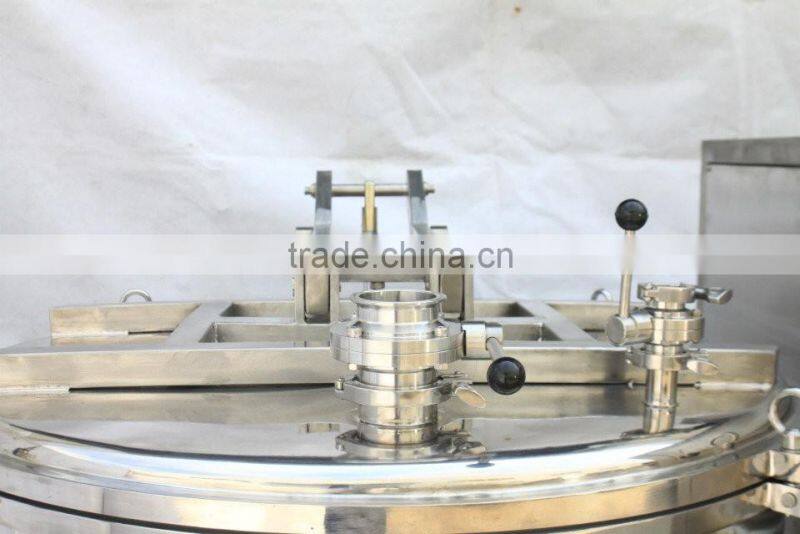

feeding inlet and sanitary cleaning ball

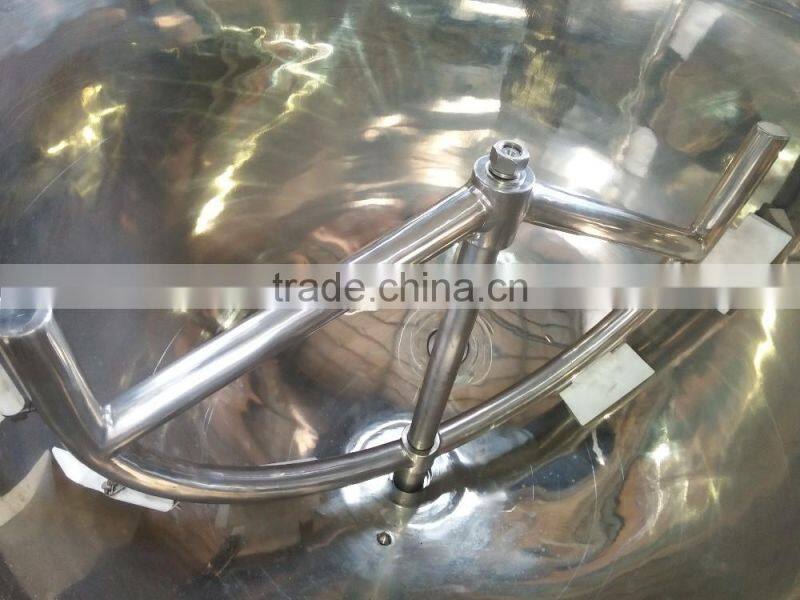

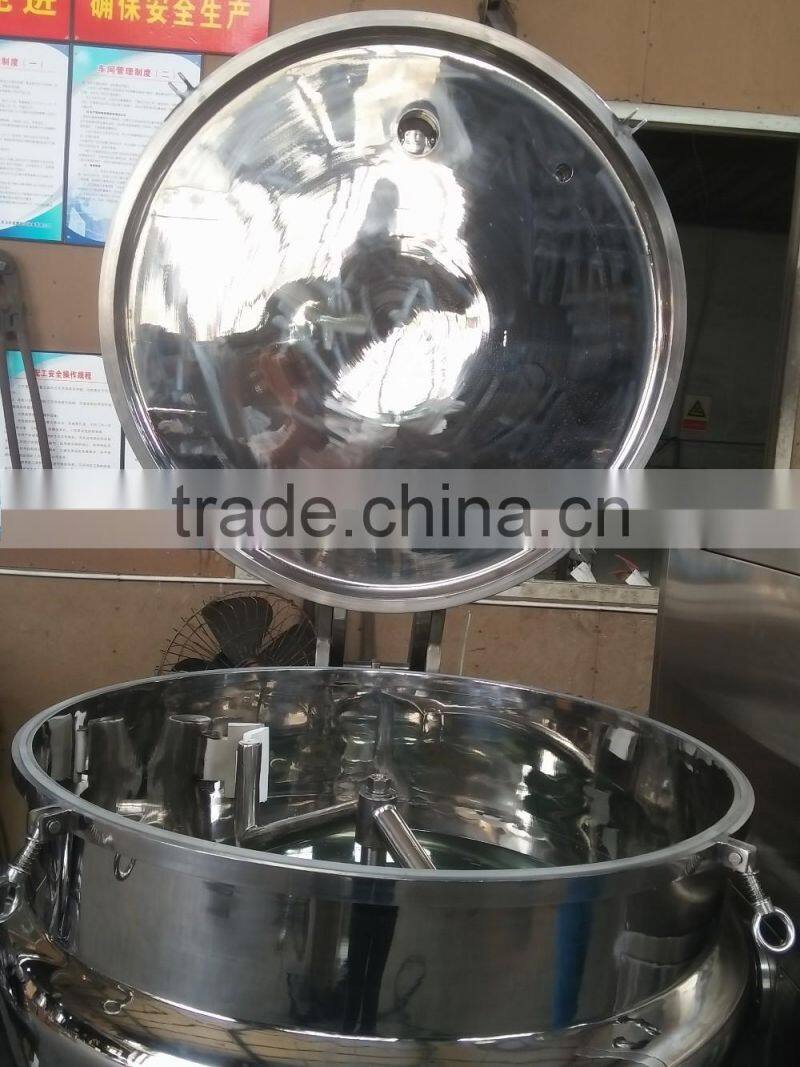

bottom PTFE scraper agitator

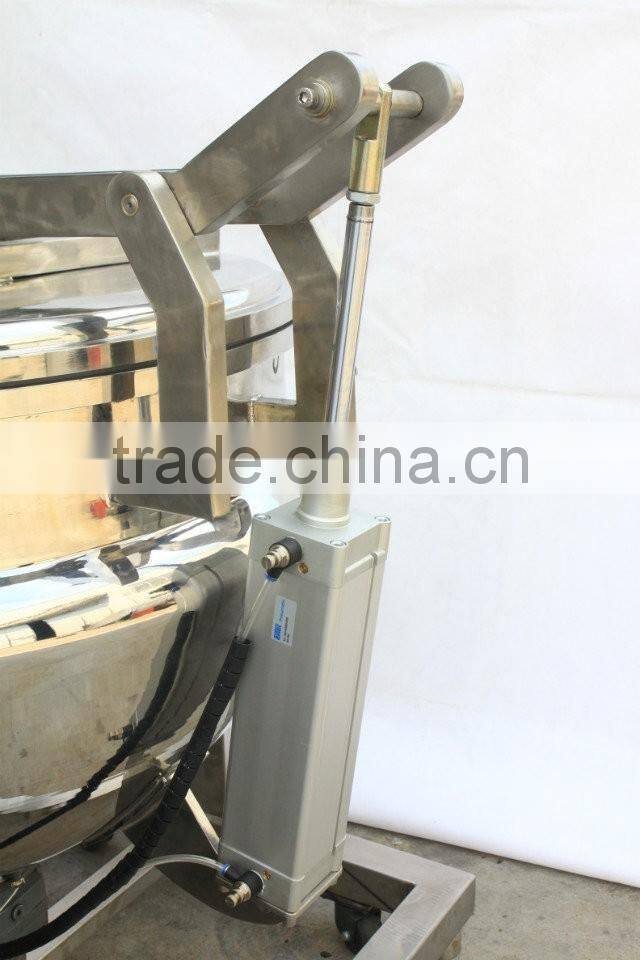

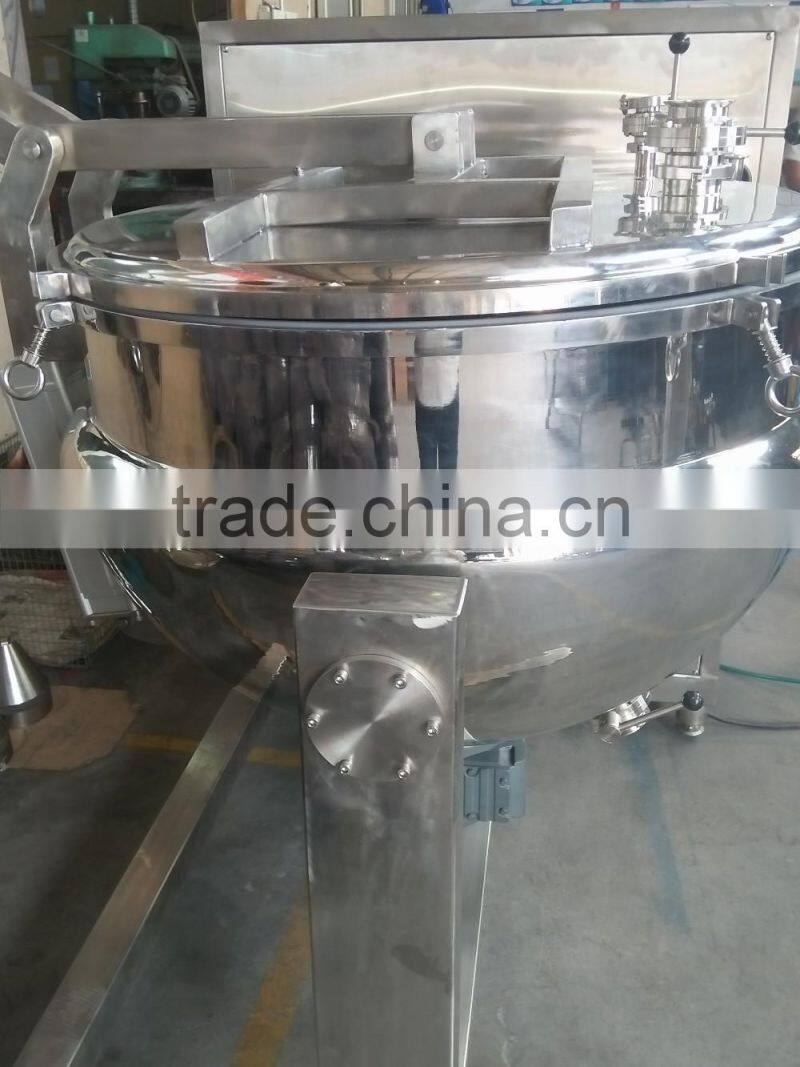

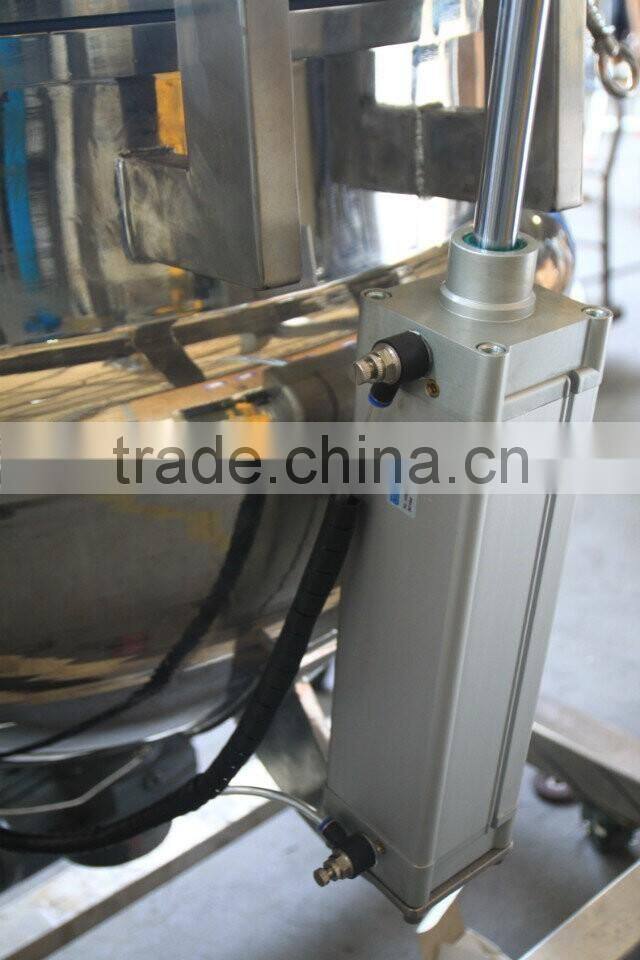

Pneumatic open cover, easy open.

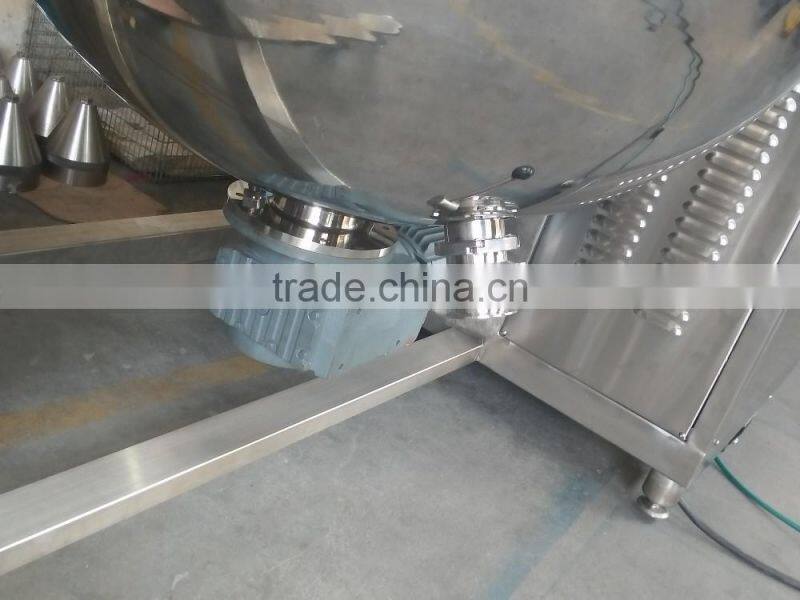

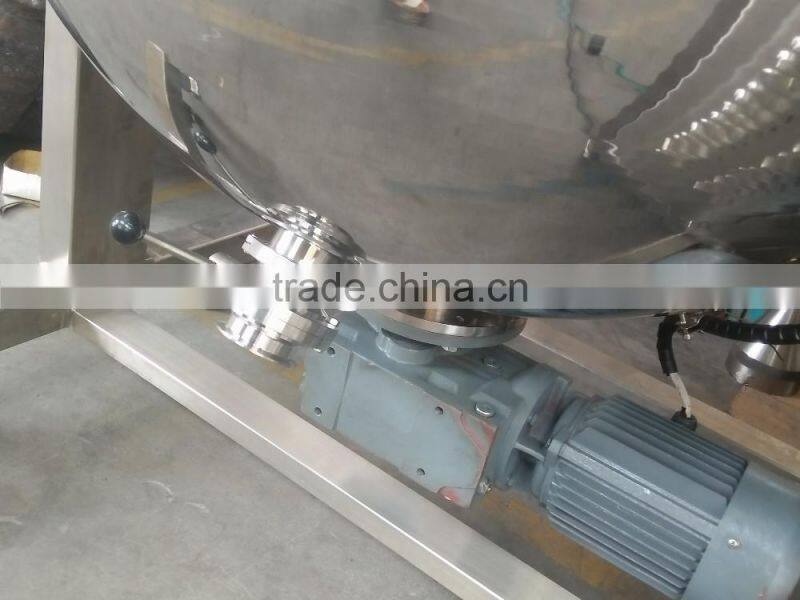

Bottom agitator and discharge.

electric control box with Schneider electric components

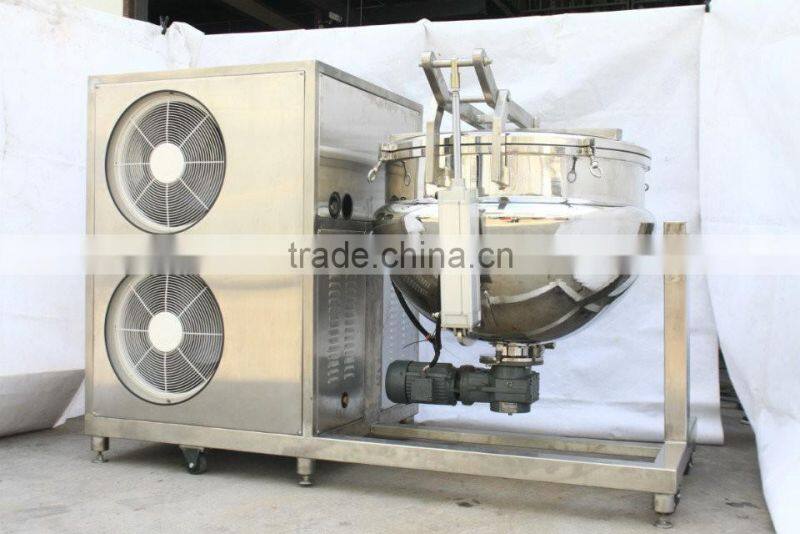

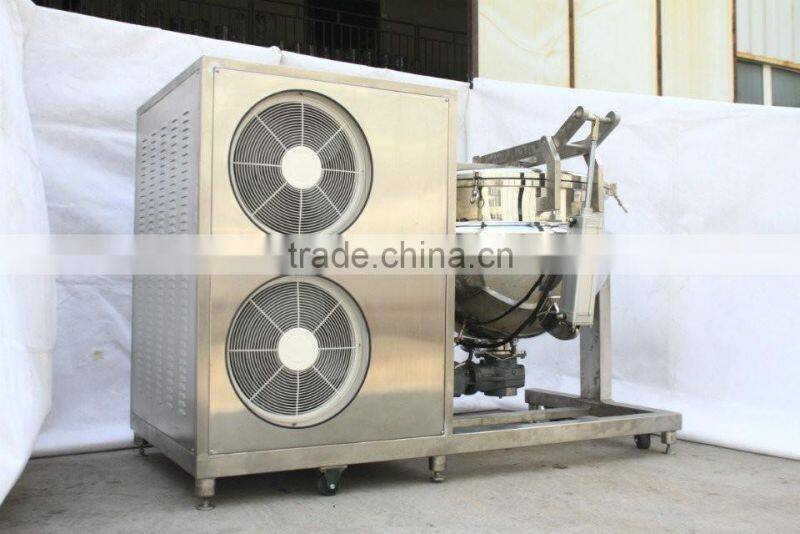

chiller system

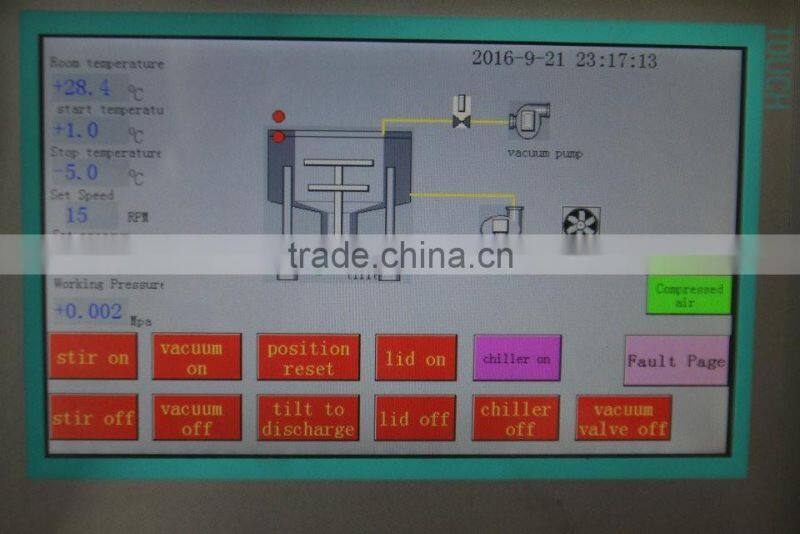

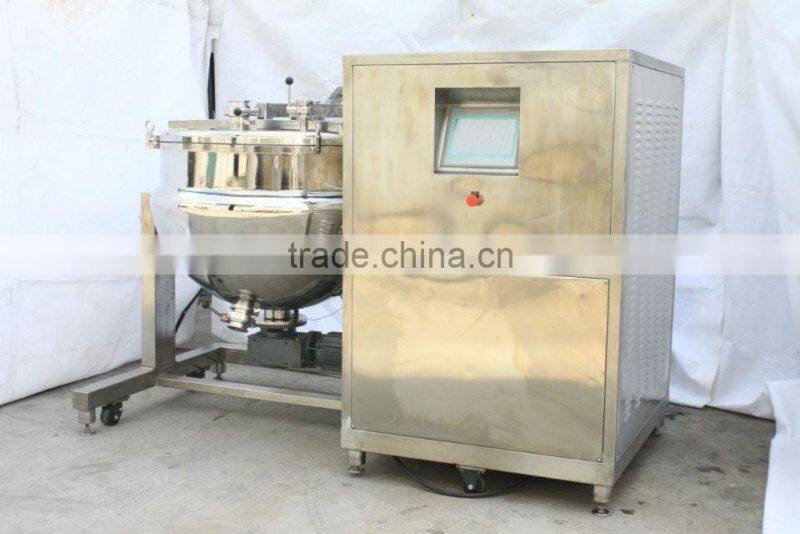

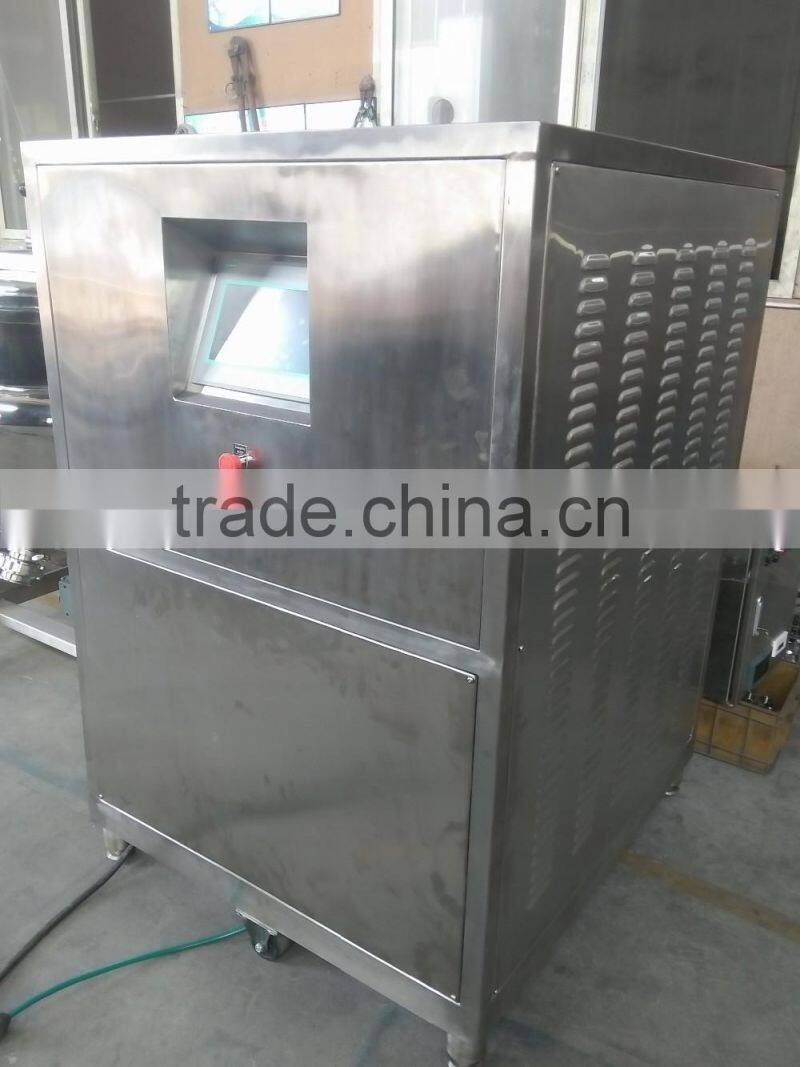

PLC control panel

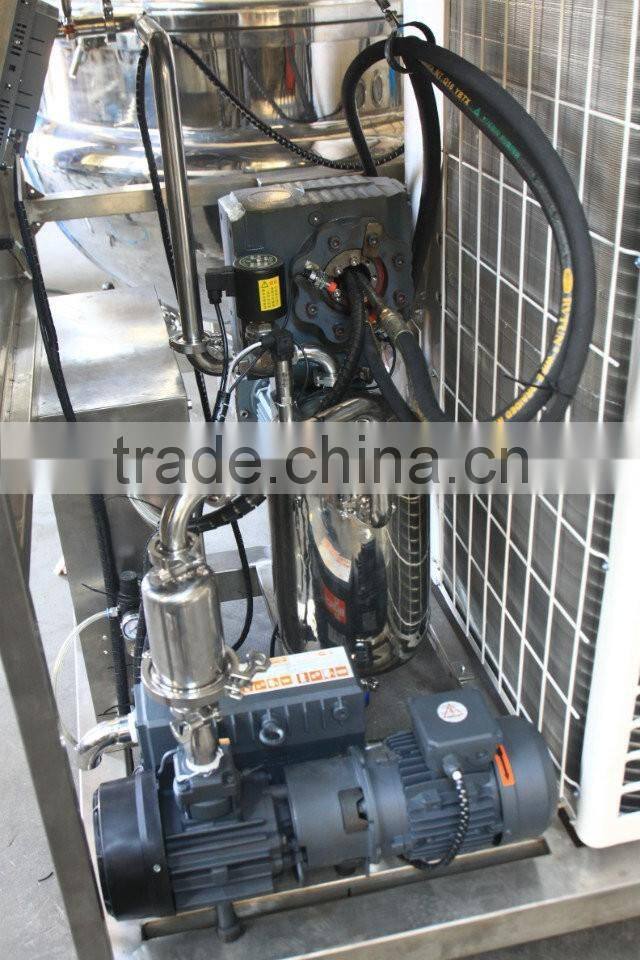

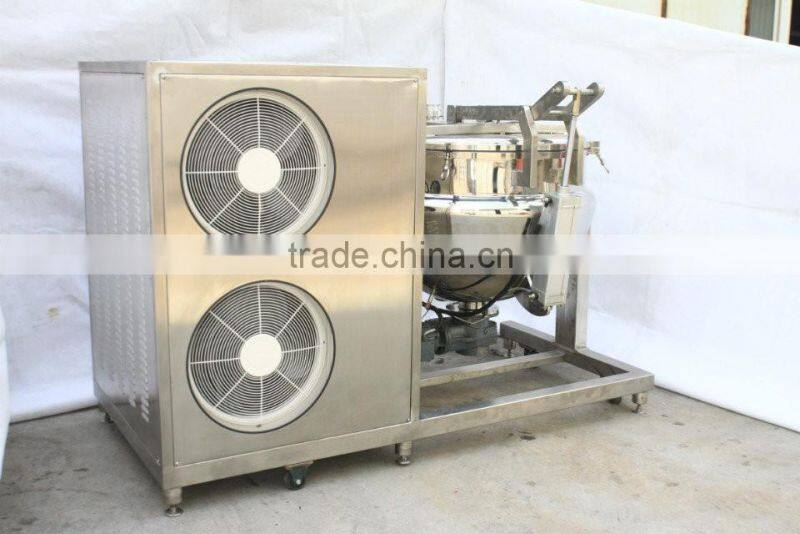

chiller system

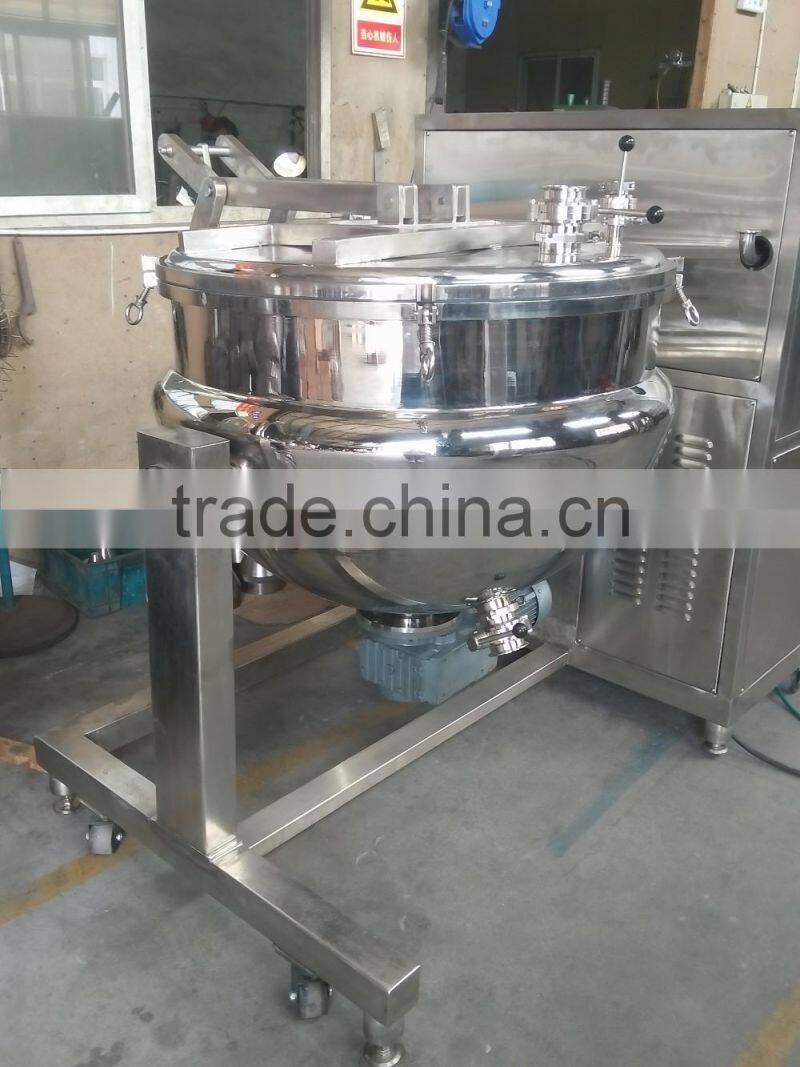

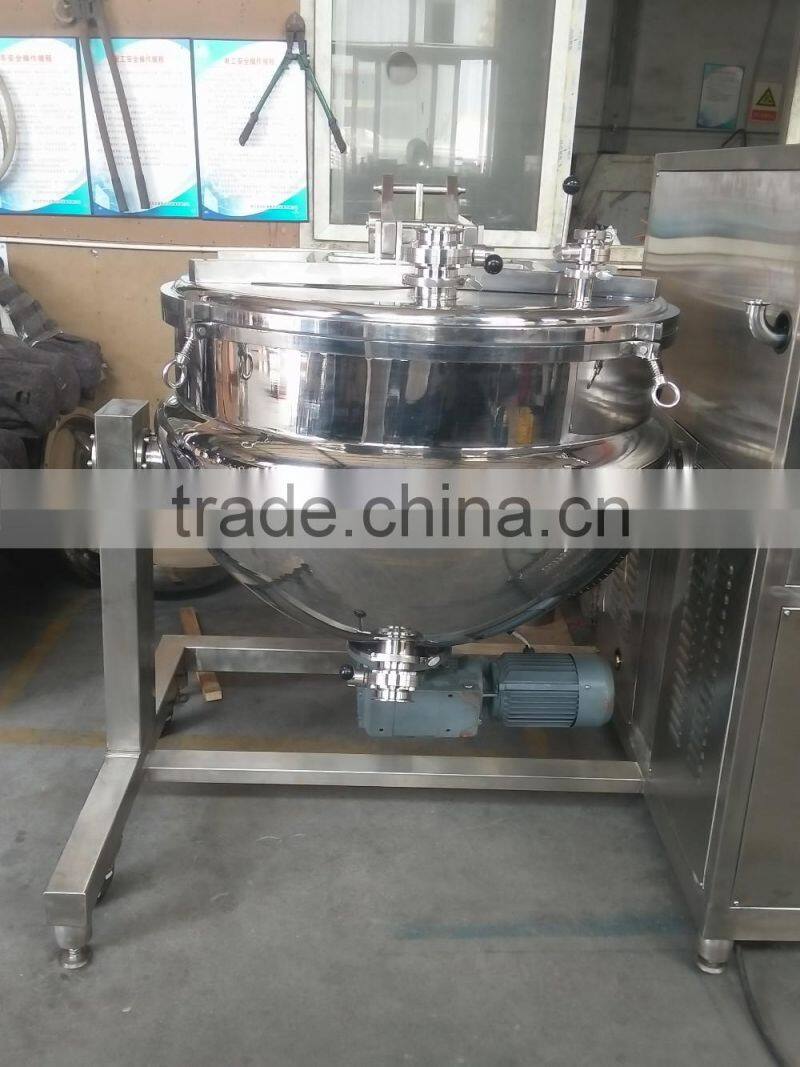

cooking kettle
