SUS Jacket Big Outdoor Industrial Steam Cooking Pots with mixer
- 500 Set / Sets per Month
- shanghai/ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Zhejiang Steel Kitchen Small 50L Cooking Equipment Jacket Kettle
-
stainless steel industrial jacketed cooking kettle with an agitator
-
Zhejiang Steam Jacket Brew Kettle with Agitator Tilting Jacketed Kettle
-
Zhejiang Industrial Tilting Gas Heating Jacket Kettle Jam Cooking Pot
-
Steel Mixer and Blender Large Electric Multi Cooking Pot
-
sugar paste /sugaring paste making machine
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BLS | |
| Model Number | QJ | Type | Other, Cooking Equipment, SUS Jacket Big Outdoor Industrial Steam Cooking Pots with mixer | |
| After-sales Service Provided | Overseas service center available |
Product Description
BLS steam tilting jam cooking kettle, jam cooking boiler
food industrial fruit and vegetable cooker
Features of jacket jam cooking boiler
1. Machine material: SS304/316L
2. Capacity:Normally is 50L-1000L but can be as your demand
3. Type: tilting or vertical
4. Heating model: electrical, Steam or Gas

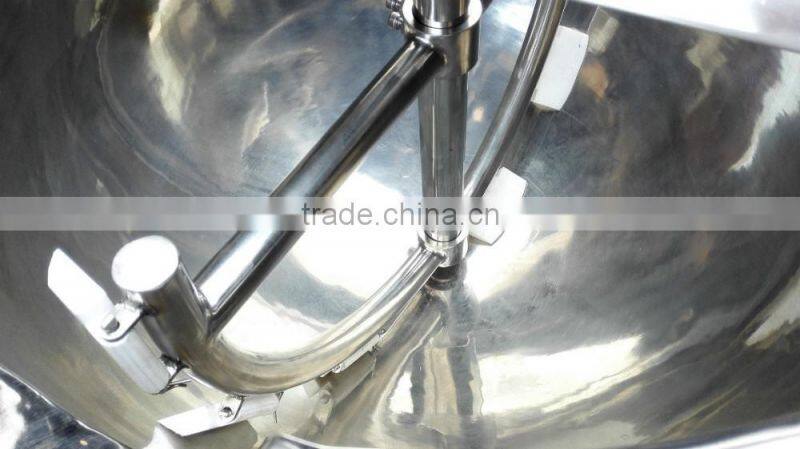

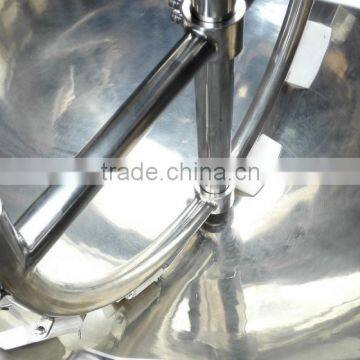

5. Agitator: available, standard is frame with scraper
6. Blending speed range: 20-25rpm(VFD is optional)
Introduction of jam cooking agitator kettle
This machine is suitable for mixing, concentrating and decocting the material in pharmaceutical, foodstuff and chemical industry etc.
It is the best choose for jam making such as the matt jam and strawberry jam making, tomato sauce making and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.

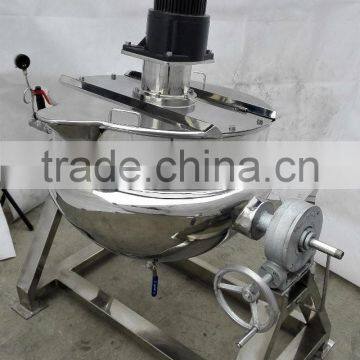

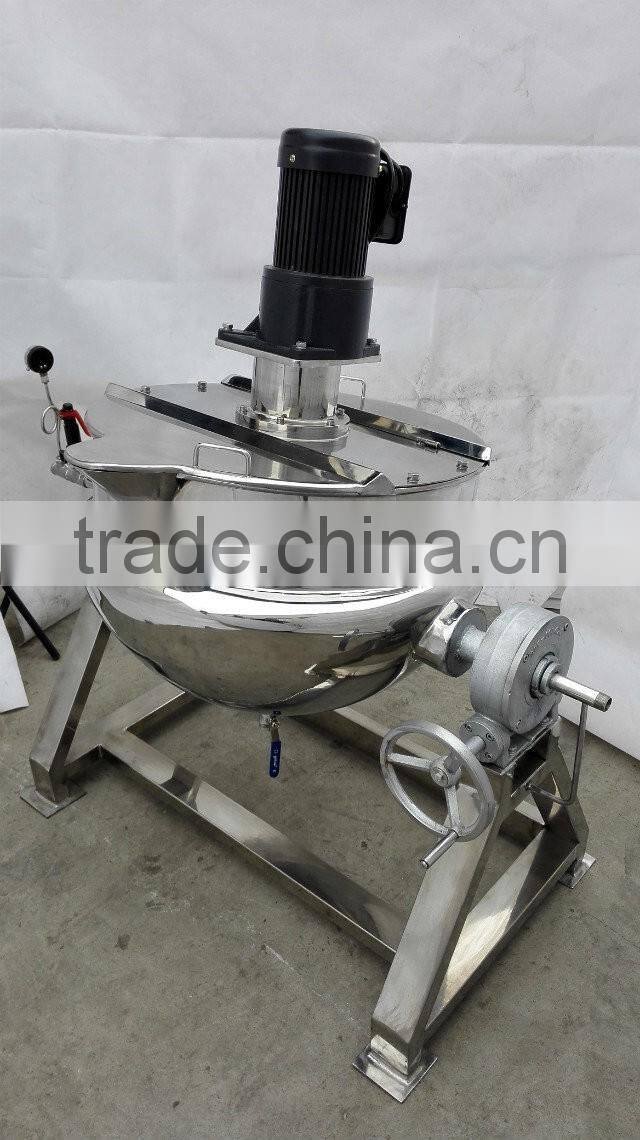

This jam making machine is composed of kettle ,backet ,worm wheel and worm etc.
The kettle can revolve with 180 degree.
The cooking machine is made of stainless steel SUS304,which has perfect corrsion-proof performance, and is highly endurable according to GMP requirements.
Blender also can be added according customer requirements.
Main technical parameters of steam tilting cooking kettle:
Model | Volume (L) | Working pressure in jacket(Mpa) | Evaporating quantity (kg/h) | Heating area (m2) | Energy consumption (kg/h) | Weight (kg) | Outline dimension (mm) | ||
Width | Height | Length | |||||||
QJ50 | 50 |
< 0.2 | 30 | 0.4 | 33 | 170 | 720 | 600 | 830 |
QJ100 | 100 | 40 | 0.45 | 44 | 190 | 800 | 650 | 950 | |
QJ150 | 150 | 50 | 0.76 | 55 | 210 | 1350 | 660 | 1000 | |
QJ200 | 200 | 65 | 1.0 | 72 | 230 | 1400 | 700 | 1100 | |
QJ300 | 300 | 75 | 1.15 | 90 | 320 | 1450 | 800 | 1100 | |
QJ400 | 400 | 100 | 1.44 | 110 | 360 | 1500 | 850 | 1140 | |
QJ500 | 500 | 150 | 1.90 | 165 | 485 | 1600 | 900 | 1150 | |
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
