Specifications

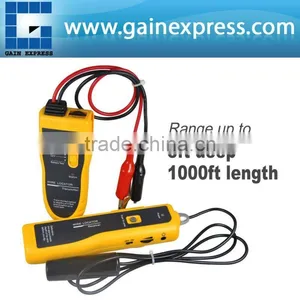

Locate non-energized wires path behind walls & underground, specific circuit breaker, pinpointing wires before drilling.The Underground Wire Locator is designed to locate the path of non-energized wires behind walls and underground. Also capable of locating a specific circuit breaker, pinpointing wires before drilling and verifying dig sites underground. The effective range is up to 3 feet deep and up to 1000 feet in length.

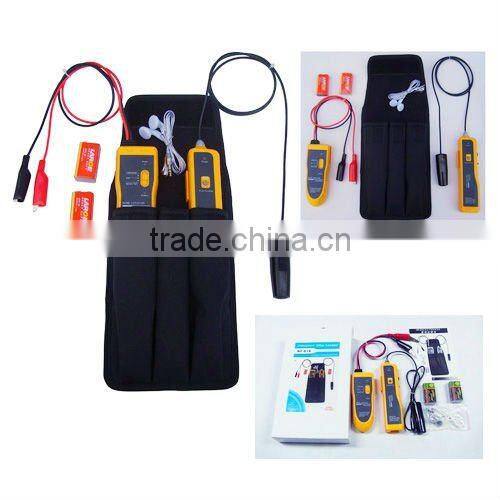

The unit consists of a transmitter equipped with a thumb wheel switch for turning the unit on and adjusting the output level on the front of the unit for use with the large alligator clip leads. Push the switch to select to test Cable Scan or Battery Test The transmitter is constructed of high impact plastic and is powered by one 9V battery. The receiver, equipped with a thumb wheel switch for turning the unit on and adjusting the receiver gain. The tracking antenna is attached to the receiver
with a 3ft long cable. Also is equipped with a White LED light and a external earphone. It is also designed to filter AC power related noise. The receiver is constructed of high impact plastic and is powered by one 9V battery.
The alligator clip leads are available to connect the transmitter to electrical wire, CATV coax, telephone drops, irrigation control wires or metallic pipes. This locating system is packaged in a toolkit & box with extra batteries,external earphone and
has operating instructions in the behind of the toolkit.
Features:
- Battery Test
- Locating & Tracking Buried Wires
- Measuring Depth
- Tracking Behind Walls
- Locating Circuit Breakers(Light Commercial & Residential Applications)
- Pinpointing Drill Sites
- Determining Which Receptacles are on Specific Circuits.
- Locating Alarm, Sound & Computer Wires
- Locating Hidden Receptacles
- White LED Flash Light
Specifications:
- Output Voltage (open circuit): 9Vp-p
- Output Frequency (nominal):
- Carrier : 447.5KHz
- Audio Modulati on: 900Hz
- Battery: 9 V DC
- Operating Temperature: -10 ~ 50°C / 14 ~ 122°F
- Storage Temperature: -17 ~ 75°C / 0 ~ 167°F
