Specifications

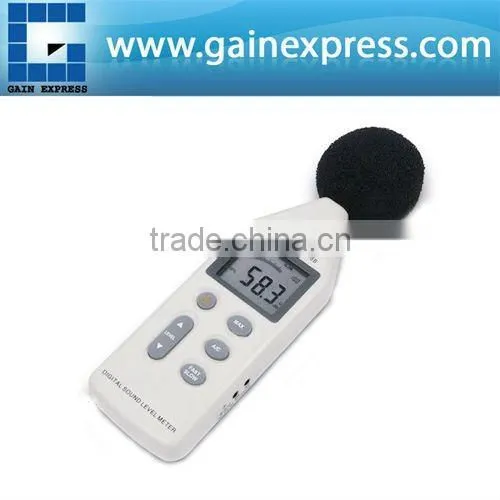

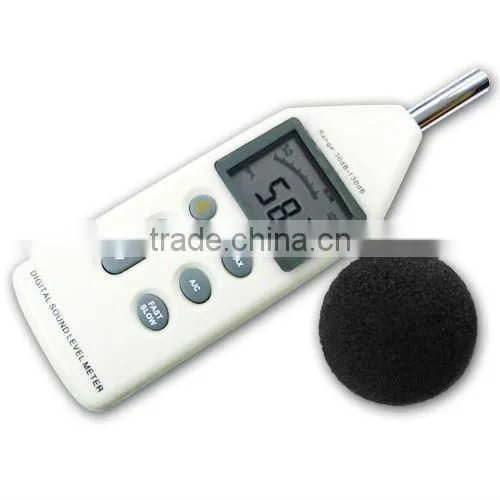

Sound level tester meter digital with carrying case and free battery large LCD screen with 4 digits display A and C pressureDigital multi-function Sound Level Meter designed to measure sound pressure level and are commonly used in noise pollution studies for the quantification of almost any noise, but especially for industrial and environmental. The device meets the measurement requirements of Safety Engineers, Health, Industrial Safety Offices and Sound Quality control in various environment. It features Bar-graph Indicating & Max Value Holding, built-in condenser mic and digital display. It accurately measures the sound level of just about anything from sound of level of environment to mechanic, vehicle, ship, loudness of computer fans and other noise with ±1.5 dB accuracy. It has the following advantages: 30~130dB range, with A/C weighting, fast/slow response, equipped with Max mode that captures and hold the maximum noise level, provides a windscreen for filter-out unwanted signals and a 9V battery with no extra charge. In almost all countries, the use of A-frequency-weighting is mandated to be used for the protection of workers against noise-induced deafness and the only weighting mandated by the international standard, the frequency weightings "C" being optional fitments.
We keep in mind that the safety of the user should always comes first. We made sure that our products has the CE marking that indicate conformity with the essential health and safety requirements set out in European Directives. SL-824 is also accredited by American National Standards Institute (ANSI) and the U.S. National Committee, the International Electrotechnical Commission (IEC) signifies that the device meets and comply with all the essential requirements of American National Standards. This handy, portable, lightweight and easy to use measuring instrument fits for industry, environmental protection, working, sanitation, teaching research and other departments.
Continuous high pressure levels can permanently damage the hearing capacity and even audio speakers. With all its useful features helps us achieve and maintain a healthy environment. It so simple to operate, ANYONE can use it!
Features:
- Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
- Durable and built to last long and approved by strict quality and safety standards
- Completely conforms to the IEC651 TYPE 2 and ANSI S1.4 TYPE 2 set standards
- Wide measurement range of 30-130dB and Instantaneous sound measure function
- With two equivalent weighted sound pressure levels, A and C
- With fast and slow dynamic characteristic modes

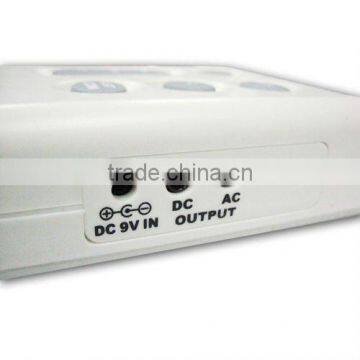

- AC and DC signed output for frequency analyzer level recorder, FFT analyzer, graphic recorder etc.

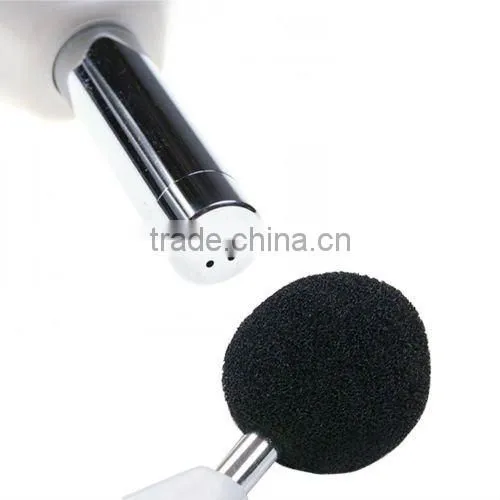

- Equipped with windscreen that filters the undesired or unwanted signal
- With Bar-graph Indicating & Max Value Holding with large LCD screen and 4-digit LCD display readings
- With Tripod mounting provision on the back of the unit for field use
- With FREE protective carrying case with contoured hardened foam inside fits the instrument securely. The device is sandwiched between hardened foam when closed to achieve optimum shock absorption
Specifications:
-
7 Sound Levels: 30 ~ 130 dB selectable using the Level Selecting Button switch
- level 1: 30 ~ 80dB
- level 2: 40 ~ 90dB
- level 3: 50 ~ 100dB
- level 4: 60 ~ 110dB
- level 5: 70 ~ 120dB
- level 6: 80 ~ 130dB
- level 7: 30 ~ 130dB
- Accuracy: ±1.5 dB
- Frequency Range: 31.5 Hz to 8.5k Kz
- Linearity Range: 50dB
- Measuring Level: 30~130dBA, 35~130dBC
- Frequency Weighting: A, C
- Digital Display: 4 digits
- Resolution: 0.1dB
- Display: 0.5 secretary
- Bar Graph: 50dB scale at 1dB step for monitoring current sound pressure level display period of 50mS
- Level Ranges: 30~80dB, 40~90dB, 50~100dB, 60~110dB, 70~120dB, 80~130dB, 30~130dB
- Over indicate over range: Under indicate less than lower limit of the range
- AC output: 0.707 Vrms at FS output impedance approx 600 Ω
- DC output: 10 mV / dB output impedance approx 100 Ω
- Time weighting: Fast / Slow
- Microphone: ½ inch electret condenser microphone
- Max: Maximum hold
- Power Supply: 6F22 9V alkaline cells (30 hrs life span) or DC 9V 100mA
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 10% to 70% RH
- Storage Temperature: -10°C to 50°C
- Storage Humidity: 10% to 80% RH
- Dimensions: 235mm(L) x 70mm(W) x 30mm(H)
- Weight: approx 350g

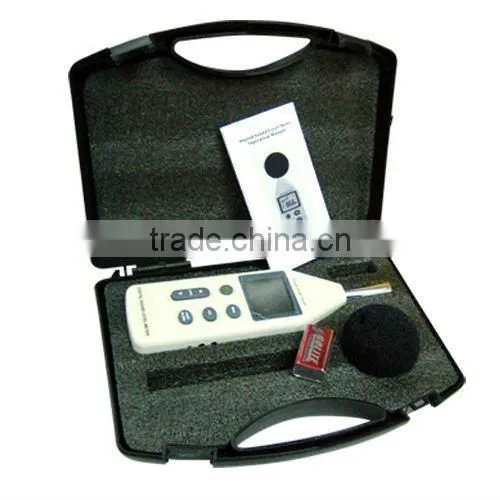

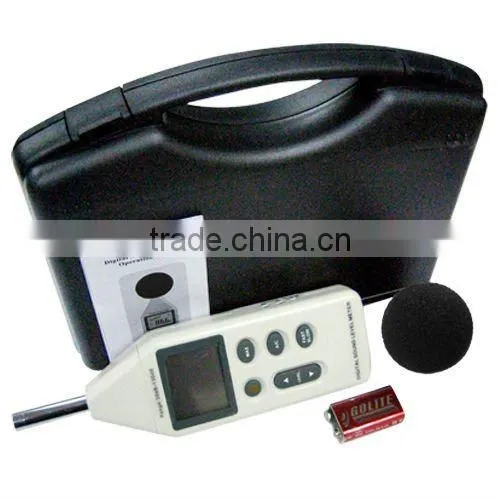

Set includes
- 1 x Digital multi-function Sound Level Meter
- FREE 9V 6F22 battery
- 1 x Sponge Ball or Windscreen
- 1 x Sturdy & Protective Carrying Case with hardened foam lining for maximum shock absorption
- 1 x English User's Manual
