MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm

MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm thumbnail-1
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm thumbnail-2
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm thumbnail-3
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm thumbnail-4
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm thumbnail-5
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm thumbnail-6
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm photo-1
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm photo-2
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm photo-3
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm photo-4
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm photo-5
MITECH MT150 Ultrasonic Thickness Gauges With 4.5 Digits LCD With EL Back Light 0.75~300mm photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Mitech
Model Number:
MT150
Contact Supplier Request Quote Chat Now
Gain Express Holdings Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitech
Model Number MT150

Specifications

0.75~300mm(in Steel); 1000~9999 m/s(Sound Velocity)
Calibration:Probe-Zero & Sound-Velocity
work mode:Single point & Scan mode

It's a digital ultrasonic thickness gauge w/ highly accurate reading results. Based on same operating principles as SONAR, the instrument is capable of measuring thickness of various materials w/ accuracy as high as 0.1mm.



2-Point calibration function (Probe-Zero & Sound-Velocity) allows greater accuracy over small ranges by calculating the probe zero & velocity.



Suitable for measuring  wide range of materials including metals, plastic, ceramics,composites, epoxies, glass & other ultrasonic wave well-conductivematerials.



Applicable for different types of transducer models for special application, including coarsegrain material & high temperature applications (NOTE: 1 transducer is included in the set).





Features:

  • Economical model
  • Compatible for different probes
  • High accuracy
  • Low-power design
  • 2-Point Calibration function:  Probe-Zero & Sound-Velocity
  • 2 work modes: Single point & Scan mode
  • Battery & Coupling status indicators
  • Auto sleep and auto power off function to conserve battery life
  • Memory function: data save, recall or delete
  • Beeping Alarm, on each measurement or the measured value exceeds the tolerance limit
  • EL Backlight: work conveniently even in dark areas
  • Allows system reset to restore factory defaults
  • Segment LCD
  • 2 years guarantee
  • CE certificate, Passed the European Directive Standard



Specifications:

  • Display : 4.5 digits LCD with EL backlight
  • Measuring Range : 0.75~300mm (in Steel)
  • Sound Velocity Range : 1000~9999 m/s
  • Resolution :  0.1mm
  • Accuracy : ±0.5%Thickness + 0.04mm, depends on materials and conditions
  • Units : mm or in for thickness value; m/s or in/μS for sound velocity
  • Four measurements readings per second for single point measurement, and ten per second for Scan Mode
  • Memory for up to 20 files (up to 99 values for each file) of stored values
  • Transducer :
    • Frequency : 5MHz
    • Diameter : 10mm
    • Measuring Range : 1.2 ~ 230.0mm (In Steel)
    • Lower Limit : Φ20 ~ 3.0mm
    • Description : Normal Measurement
  • Operating Temperature : -20 ~ 60°C
  • Storage Temperature : -30 ~ 70°C
  • Relative Humidity : ≤90%
  • Power Source : 2 x AA 1.5 Volt alkaline batteries
  • Battery Life : 100 hours typical operating time (EL backlight off)
  • Outline dimensions : 150mm × 74mm × 32mm
  • Weight : 245g

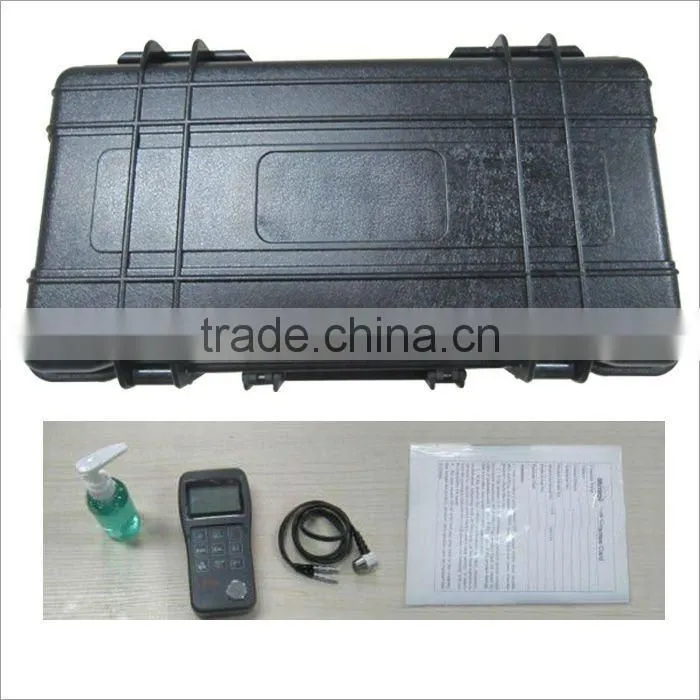

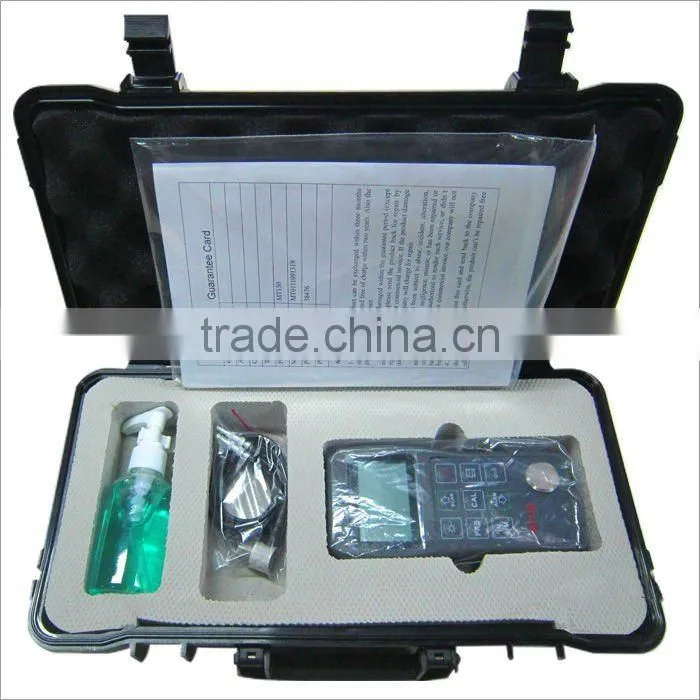

Set Includes:

  • 1 x Main Unit (Model No.: MT150)
  • 1 x Transducer (Model No.: N05/90°)
  • 1 x Couplant
  • Plastic Carrying Case
  • English Operating Manual
  • 2 x AA 1.5V Alkaline battery
  • Optional Items (not included in set):
    Please inform us if you want any of the following optional items to be included in your order.
    • Optional Transducer

Model

Freq. (MHz)

Diam. (mm)

Measuring Range

Lower Limit

Description

N02

2.5

14

3.0 ~ 300.0mm
(In steel)
40mm
(In Gray Cast Iron HT200)

20

For thick, highly attenuating, or highly scattering materials

N07

7

6

0.75 ~ 80.0mm
(in steel)

Φ15 ~ 2.0mm

For thin pipe wall or small curvature pipe wall measurement

HT5

5

14

3 ~ 200mm
(in steel)

30

For high temperature (lower than 300°C) measurement





MITECH MT150 Ultrasonic Thickness Gauges with 4.5 digits LCD with EL back light 0.75~300mm



MITECH MT150 Ultrasonic Thickness Gauges with 4.5 digits LCD with EL back light 0.75~300mm



MITECH MT150 Ultrasonic Thickness Gauges with 4.5 digits LCD with EL back light 0.75~300mm



MITECH MT150 Ultrasonic Thickness Gauges with 4.5 digits LCD with EL back light 0.75~300mm



MITECH MT150 Ultrasonic Thickness Gauges with 4.5 digits LCD with EL back light 0.75~300mm



MITECH MT150 Ultrasonic Thickness Gauges with 4.5 digits LCD with EL back light 0.75~300mm



MITECH MT150 Ultrasonic Thickness Gauges with 4.5 digits LCD with EL back light 0.75~300mm
