Handheld MITECH MCT200 Ultrasonic Thickness Gauge

Name: Handheld MITECH MCT200 Ultrasonic Thickness Gauge
Brand: Mitech
SKU: 140656290
Availability: InStock

Handheld MITECH MCT200 Ultrasonic Thickness Gauge thumbnail-1

Handheld MITECH MCT200 Ultrasonic Thickness Gauge photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Mitech

Model Number:

MCT200

Contact Supplier Request Quote Chat Now

Gain Express Holdings Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Mitech

Model Number MCT200

Specifications

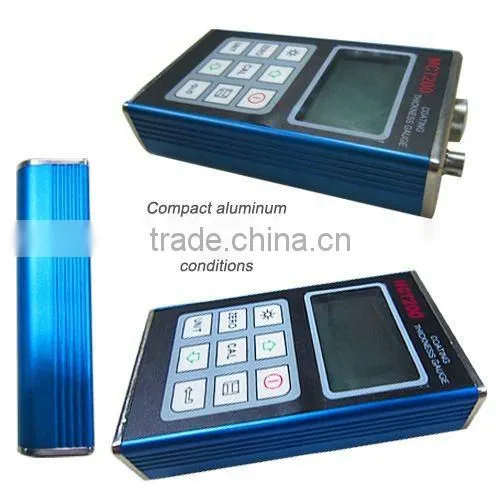

Compact aluminum outershell
USB Port
200 hours battery life
Large LCD Display

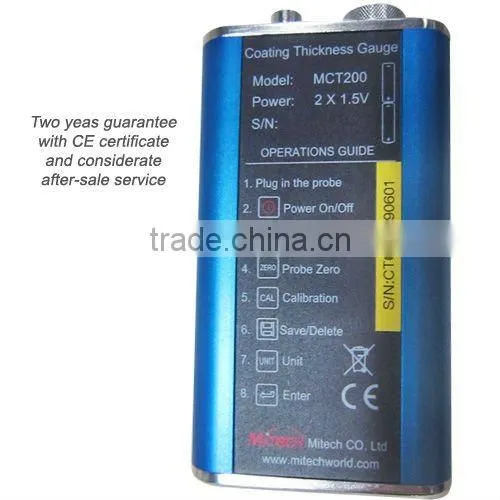

Two years guarantee with CE certification

This instrument is portable coating thickness gauge. It can test coating thickness swiftly & accurately w/out damage but also can test thin film thickness. It can be used widely in detecting fields as manufacturing industry, metal-processing industry, chemical industry, commodity inspection, etc.

Features

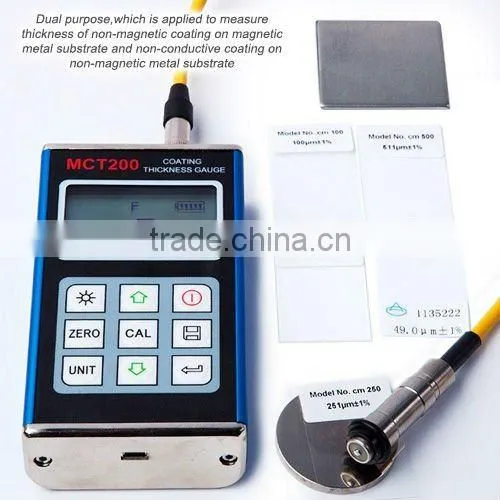

W/ different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate

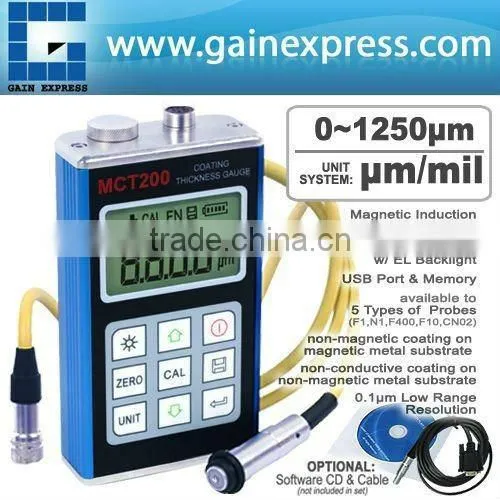

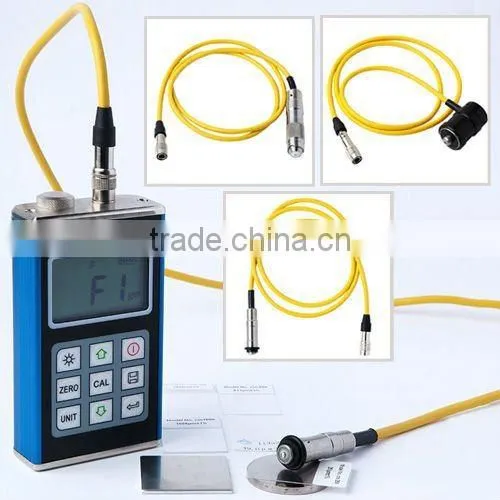

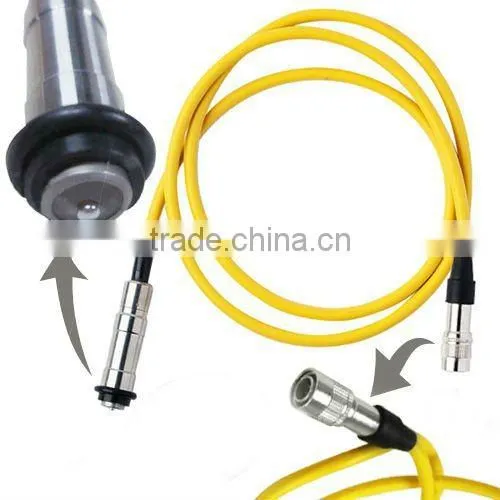

5 types of probes (F400, F1, F10, N1, CN02) are available for different application. F10 probe measures up to 10mm
2 measuring modes: single or continuous, changeable
2 calibration methods can be applied to the gauge; System error of the probe can be corrected with the basic probe calibration method

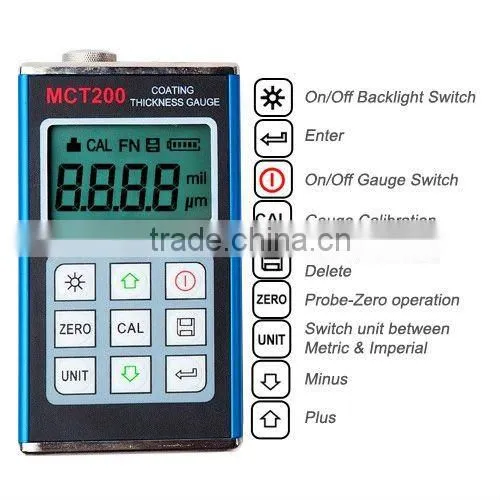

Measured values & user information are shown on large, easy-to-read LCD. Backlight ensures easy reading of screen data in poorly-lit conditions
Measuring status indicator showing measuring status
Gauges’ user-friendly measuring system permits auto storage of up to 1000 readings in 1 memory matrix for later statistical evaluation
Battery life indicator
Auto sleep & auto power off function

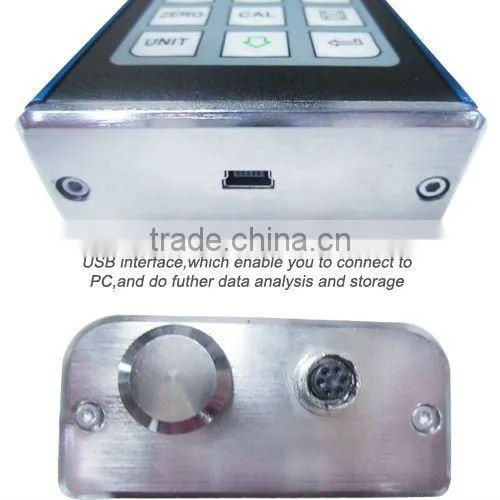

USB1.1 communication port. Optional software to process the memory data on PC
Compact aluminium case, suitable for use under poor working conditions

Specifications

Measuring principle: Magnetic induction & Eddy current
Measuring range: (0~1250) μm, depends on probes. maximum 10mm for the probe F10
Low range resolution: 0.1μm
Accuracy: ±(3%Thickness+1) μm, depends on probes & conditions
Display: 4 digits LCD w/ EL backlight
Memory for up to 20 files (up to 50 values for each file) of stored values
Unit system: Metric (μm) , Imperial (mil)
Power source: 2 AA 1.5V Alkaline Batteries. 200 hours typical operating time (EL backlight off)
Communication via USB1.1
Size:125x67x31mm
Weight:340g

Measuring Principles

Gauge adopts two thickness-measuring methods: magnetic induction method & eddy current method
insulating coatings on all non-ferrous metals & on austenitic stainless steels, e.g. paint, anodizing coatings, ceramics, etc. applied on aluminium, copper, zinc die-casting, brass, etc.
Operat Temp. ing Temp.: -10~50°C
Storage Temp. :-30~60°C
Relative humidity: ≤90%
The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium & heavy dust
