Home > Instruments & Meters > Test Instrument > Test Machine > Digital LED Laser Photo Non Contact Tach Tachometer 2.5 to 99,999 RPM Rotational Speed Test Range
Digital LED Laser Photo Non Contact Tach Tachometer 2.5 to 99,999 RPM Rotational Speed Test Range
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Generic
Model Number:
DM-6234P
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25kgs Water Resistant Digital Scale Hanging Fishing Luggage lb oz TareNegotiableMOQ: 1 -
Wrist Nuclear PM1208 (leather Strap) Gamma Master II, Radiation Watch Calibrated by Polimaster Ltd.(Belarus)NegotiableMOQ: 1
-
AM/FM Radio Station 12/24H Time Display Sleep Timer 220-240V Only / Technoline Digital Quartz Alarm ClockNegotiableMOQ: 1
-
2" TFT LCD Digital DVR Audio Video Car Vehicle Monitor/ Black Box Camera Recording USB + 2G SD Memory CardNegotiableMOQ: 1
-
Digital USB Pressure Manometer Differential Pressure GaugeUS$ 49.99 - 56.99MOQ: 1 Piece
Brand Name
Generic
Model Number
DM-6234P

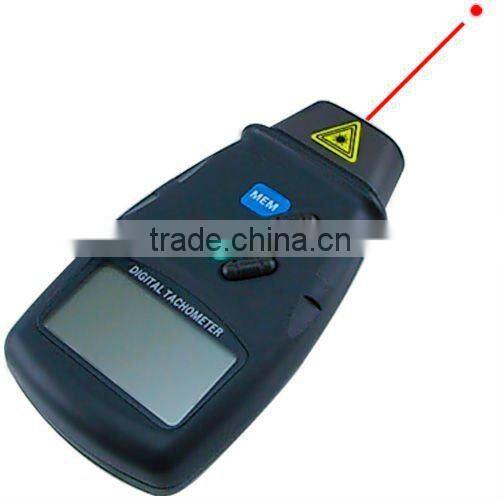

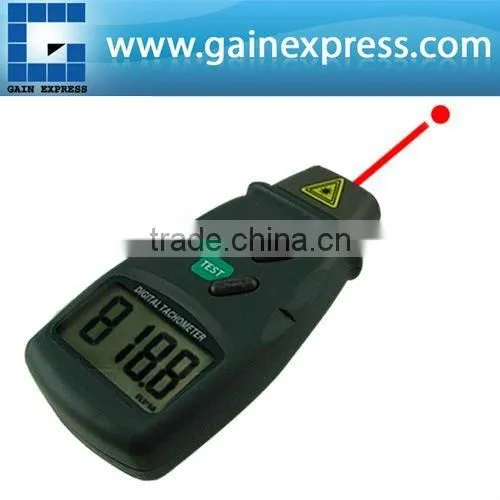

This high quality non-contact tachometer has wide measuring range and high resolution. With LED or Laser, it precisely measure Rotational Speed (RPM) without touching the rotating or moving object. Offering high ±0.05% accuracy, instantaneous response time, auto-select test range, low power consumption givinga longer battery life and long detecting distance of up to 500mm or 20 inches (with Laser).
Operation is very simple, just apply a reflective mark (included in package) onto the target object,then aim the beam at the mark and RPM will be seen on its5-digit clear LCD. Wide range of applications include measuringrotating speed of machine, motors, model cars, automotive,trucks, aircraft, light rail vehicles, wheels, lathe formetal or wood cutting work, for HVAC applications to measurefan speed and other application that needed rotational speedmeasurements.
Features
- Tested according to European international guidelines and standards (CE Marking)
- Wide measuring range of 2.5~99,999RPM
- High accuracy up to ±0.05%
- High Resolution
- Long detecting distance up to 500mm(20 inch) with Laser

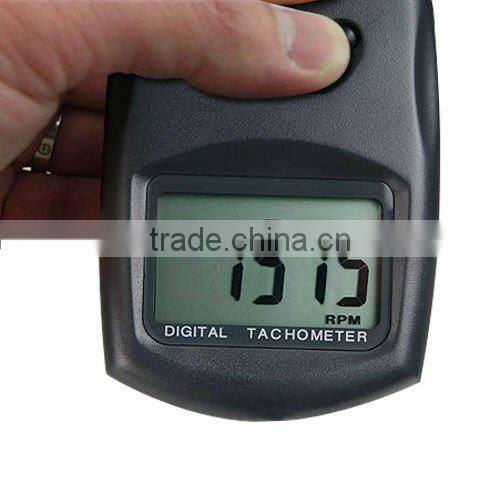

- Large 5 digits LCD Display
- Auto testrange select
- Use Microcomputer LSI circuit and crystal time base offering high accuracy and quick measurement time
- Highly accurate, displays exact RPM with no guessing errors
- With fraction of minute sampling time(0.8 sec)
- Maximum, Minimum and Last Measuredvalue
- Low battery indication
- Durable & Reliable
Specifications
- LCD Display : 5 digits, 18mm (0.7")LCD with Function Annunciation
- Test Range : 2.5 to 99,999 RPM(r/min)
- Resolution : 0.1 RPM (2.5 to 999.9RPM)
- 1 RPM (over 1,000 RPM)
- Accuracy : ±(0.05% + 1 digit)
- Sampling Time : 0.8 sec. (over60 RPM)
- Test range selection : Automatic
- Memory : Max. value, Min. valueand Last value
- Detecting Distance:
- 50~200mm / 2~10 inches (LED)
- 50~500mm / 2~20 inches (Laser)
- Time Base : Quartz Crystal
- Circuit : Exclusive one-chip of microcomputerLSI Circuit

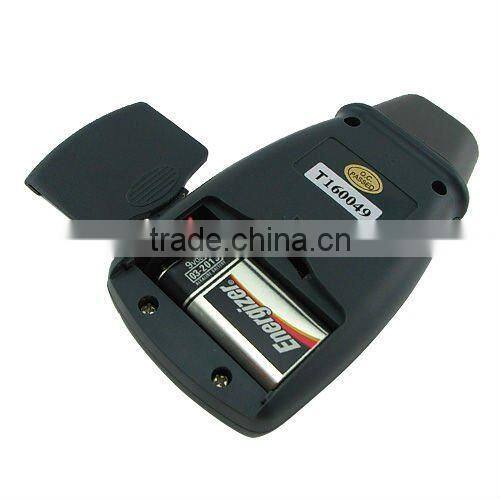

- Power Supply : 9V Battery (included)
- Power Consumption:
- Approx. 35mA (LED)
- Approx. 30mA (LED)
- Operating Temperature: 0~50°C (32~122°F)
- Size : 131 x 70 x 29 mm
- Weight : 160g (including batteries)

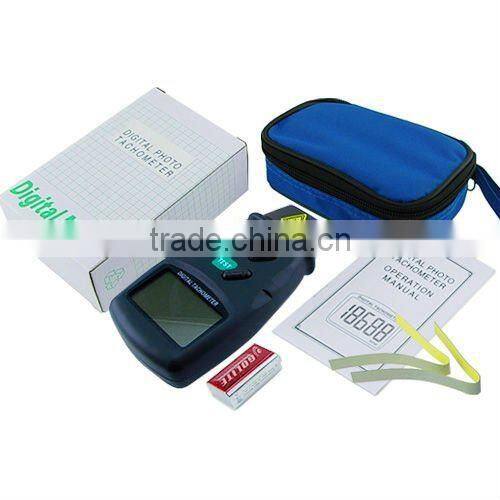

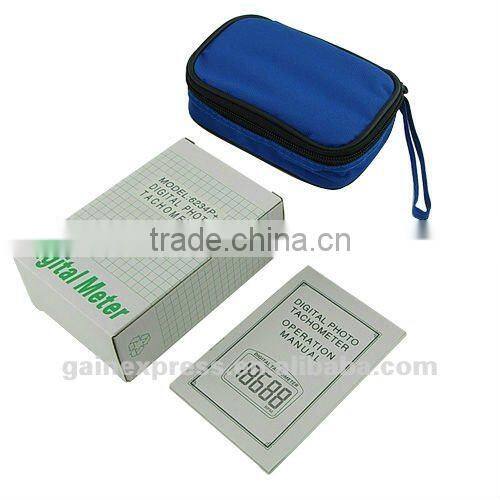

Set Includes
- 1 x DigitalTachometer
- 2 x 600mm Reflective Tape Mark
- 1 x 9V Battery (FREE)
- 1 x Protective Carrying Case
- English Quick Start Guide
- Standard Factory Package
