0~9999mm Defectoscope / Portable Mitech MFD-650C Portable Ultrasonic Flaw Detector
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MITECH
Model Number:
MFD650C
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20kg Digital LCD Display Hanging Balance Fish Luggage Weight ScaleNegotiableMOQ: 1 Piece -
Websitecam Multi-function IR-Cut Night Vision 10m Dome P2P Network Wireless Security IP Camera/ Wifi CameraUS$ 69 - 69MOQ: 20 Pieces
-
Digital LED Laser Photo Non Contact Tach Tachometer 2.5 to 99,999 RPM Rotational Speed Test RangeNegotiableMOQ: 1
-
25kgs Water Resistant Digital Scale Hanging Fishing Luggage lb oz TareNegotiableMOQ: 1
-
Wrist Nuclear PM1208 (leather Strap) Gamma Master II, Radiation Watch Calibrated by Polimaster Ltd.(Belarus)NegotiableMOQ: 1
Brand Name
MITECH
Model Number
MFD650C
Specifications
Gate AlarmA Scan Freeze
Weld Figure & Curved-Surface Correction Feature

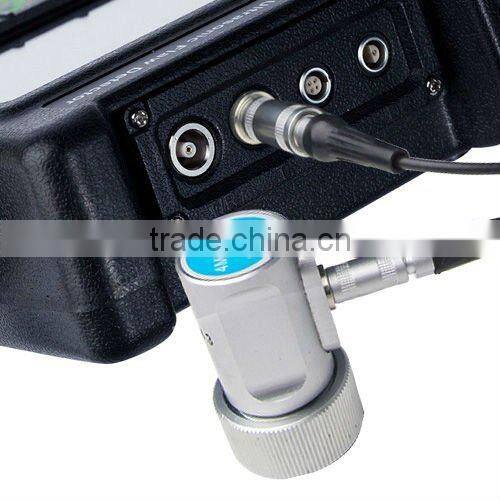

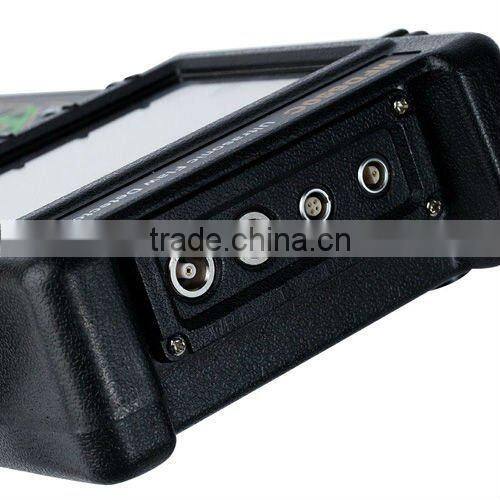

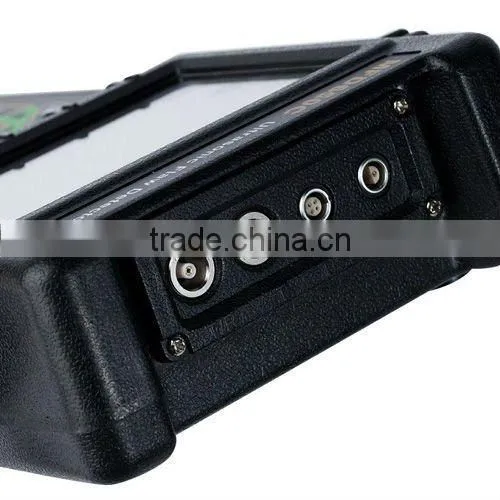

BNC / LEMO Connector
Echo Code; Store Function

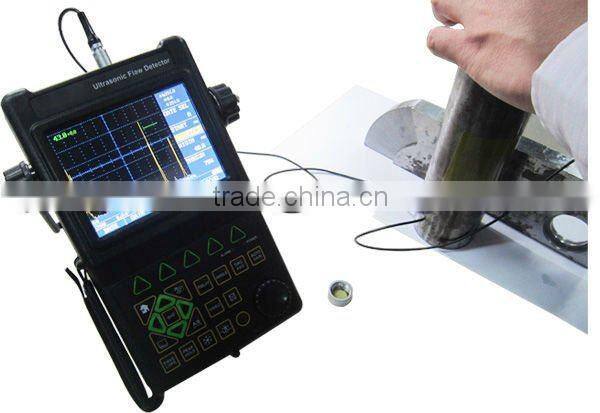

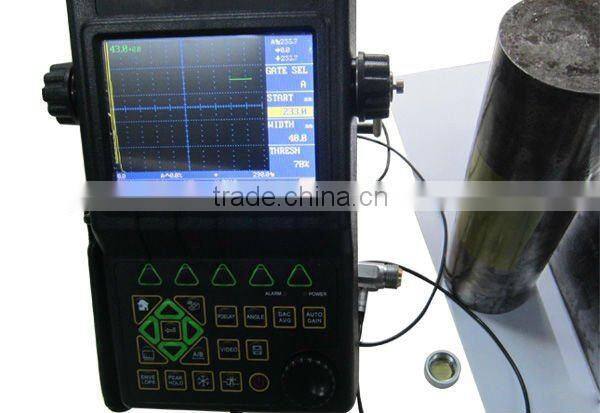

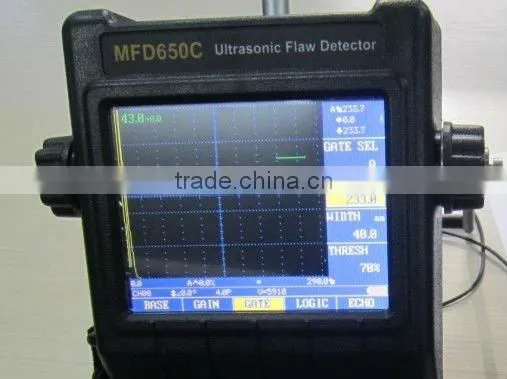

MFD650C Portable Ultrasonic Flaw Detector with hi-resolution color TFT LCD display. The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), it is easy to be dismantled and the battery module can be charged independently off-line. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.
The instrument can be widely used in locating and voids, disbands and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbine and structural components.
Features:
- RANGE: 0~ 9999mm (at steel velocity); range selectable in fixed steps or continuously variable
- PULSER
- Spike excitation with low, middle and high choices of the pulse energy
- Pulse Repetition Rate: manually adjustable from 10 to 1000 Hz
- Pulse width: Adjustable in a certain range to match different probes
- Damping: 200V, 300V, 400V, 500V, 600V selectable to meet different resolution and sensitivity need
- Probe work mode: Single element, dual element and through transmission
- RECEIVER
- Real-time sampling at 160MHz high speed enough to record the defect information
- Rectification: Positive half wave, negative half wave, full wave, and RF
- DB Step: 0dB, 0.1 dB, 2dB, 6dB step value as well as auto-gain mode
- ALARM
- Alarm with sound and light
- MEMORY
- Total 100 configuration channels store all instrument operating parameters plus DAC/AVG curve; stored configuration data can be easily previewed and recalled for quick, repeatable instrument setup. Total 1000 data sets store all instrument operating parameters plus A-scan. All the configuration channels and data sets can be transferred to PC via USB port
- FUNCTIONS
- Peak Hold
- Automatically searching the peak wave inside the gate and hold it on the display
- Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter
- Continuous Record: Record the display continuously and save it to the memory inside the instrument
- Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance
- Defect Sizing: calculate the defect size
- Defect Evaluation: Evaluate the defect by echo envelope
- DAC: Distance Amplitude Correction
- AVG: Distance Gain Size curve function
- Crack measure: Measure and calculate the crack depth
- B-SCAN: Display the cross-section of the test block
- REAL-TIME CLOCK
- Real time clock for tracking the time
- COMMUNICATION
- USB2.0 high-speed communication port
Specifications:
- Channels: 100 channels
- Range: (0 ~ 9999)mm
- Bandwidth: (0.2 ~ 20) MHz
- Material Velocity: (300 ~ 15000) m/s
- Dynamic Range: ≥ 36dB
- Vertical linear error: ≥ 2.5%
- Horizontal linear error: ≥ 0.1%
- Resolution: > 40dB (5P14)
- Sensitivity Leavings: 65dB (flat-bottomed deep hole 200mm 2)
- Rejection: (0 to 80)% Linear
- Noise level: ≥ 8%
- Power supply: DC 9V; lithium batteries work for 8 hours or more
- Ambient temperature: -20 ~ 50°C
- Relative Humidity: 20 ~ 95% RH
- Overall dimensions: 263 x 170 x 61mm
- With 2 years warranty

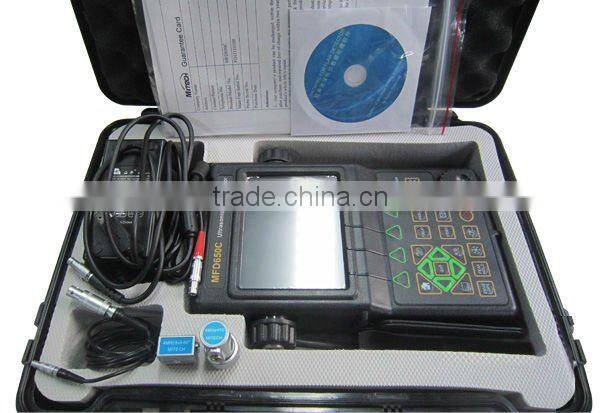

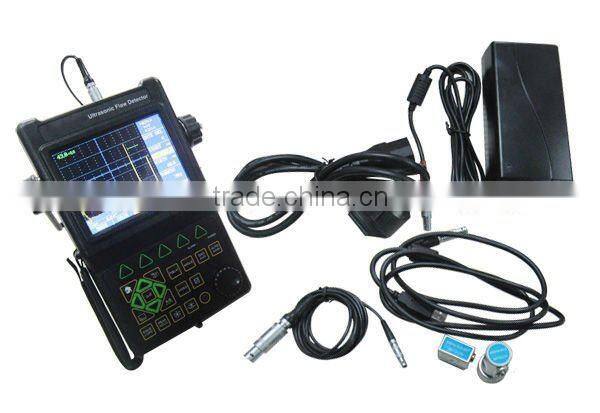

Set Includes:

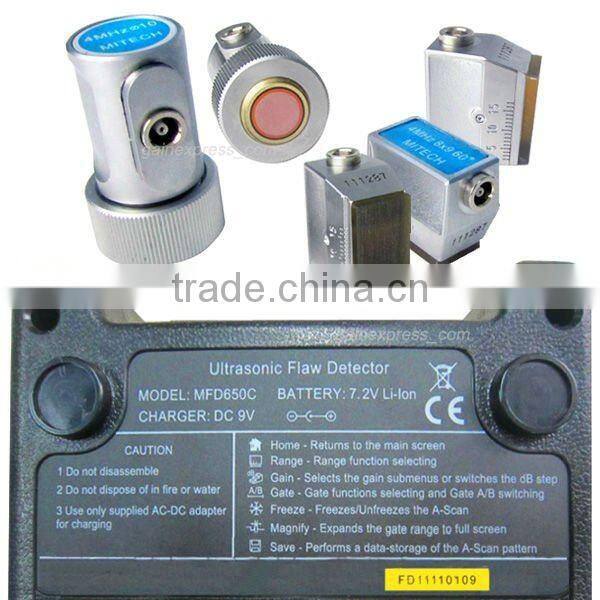

- 1 x Main Body
- 1 x Straight Beam Transducer

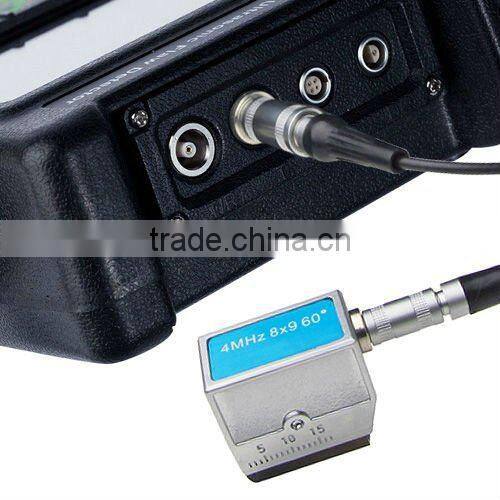

- 1 x Angle Beam Transducer
- 1 x Interconnect cable for the transducer
- 1 x Machine-probe Cable (Q9-Q9)
- 1 x Rechargeable Li-ion battery
- 1 x Power Supply/Charger unit
- 1 x Operating Manual
- 1 x Data pro software for MFD instrument
- 1 x USB cable
- 1 x Instrument Case
- Guarantee Card
- Product Certificate
- Packing Card
