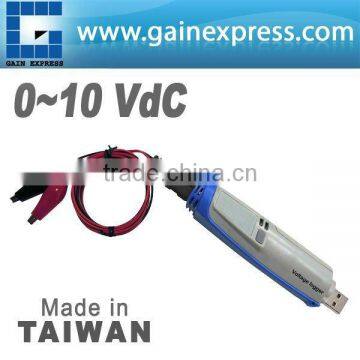

USB 0~10VdC Voltage Datalogger With 16K Memory Without LCD Display Made in Taiwan

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Taiwan, China

Model Number:

M01985435

Usage:

Other, Indoor / Outdoor

Gain Express Holdings Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Model Number M01985435

Usage Other, Indoor / Outdoor

Theory Other, Voltage Logger

Accuracy Voltage: ±2mV(0~10V),±5mV(0~30V) / Temp :±1°C/2°F / RH: ±5%(At 25°F)

Features:

USB datalogger shape with NEW DESIGN patent
Unique to integrate ambient Temp. and relative humidity monitoring and total records up to 16,000 points
Smart logger with tripod receptacle and wrist strip for long time recording and fix on the wall
Easy to connect to a current loop transmitter or device,
Software compatible with windows 98 / 2000 / XP / Vista/ 7
USB Interface for Set-up and Data Download.
Bright red ,green LEDs
Start and stop modes are selectable by pressing button or program (set up) from friendly software
Special design with flat button (key) design for preventing accidently touch to stop or activate logging function
Data can be saved, printed and exported to many other applications connecting to a current source sensor, connecting to a current sink sensor.
It complies with all essential health and safety requirements set out in European Directives (CE marking)
Made in Taiwan

Specifications:

Record data : Voltage 0~10VdC
No LCD display
Input : Single
Resolution : 1mV
Accuracy :
- Voltage : ±2mV(0~10V) , ±5mV(0~30V)
- Temp : .±1°C/2°F
- RH : ±5%(At 25°F)
LED (Red,Green)
Sample Interval : 0~59 seconds. 0~59 minutes, 0~6 hours selectable
Hi / Lo threshold setting
Logger mode : Immediately, Key start/stop , Schedule , Rollover when memory is full , Real-time
Memory Capacity : 16000
Power : 3.6 Lithium battery 1/2AA x 1 pc
Operating Temp. : 0~50°C(32~122°F)
Operating RH : <80%
Logger size : 135.7 x 28.5 mm
