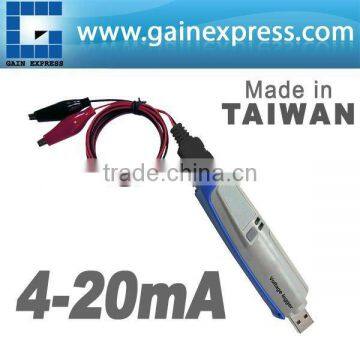

USB Current Loop 4-20mA Data Logger Without LCD Display 16K Memory Made in Taiwan
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Model Number:
M01985425
Usage:
Other, Indoor / Outdoor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USB Current Loop 4-20mA Data Logger With Temp.RH no LCD 32K Memory Made in TaiwanNegotiableMOQ: 100 Pieces -
USB Temperature Humidity Data Logger Without LCD 32K Memory With DP WB HI WGBT Function Made in TaiwanNegotiableMOQ: 100 Pieces
-
NO LCD Display USB Wall Mount Temperature and Humidity Data Logger 16K Made in TaiwanNegotiableMOQ: 100 Pieces
-
Handheld USB Temperature Data Logger 16K Memory NO LCD Made in TaiwanNegotiableMOQ: 100 Pieces
-
Portable USB Wall Mount Temperature Data Logger Without LCD Display 32K Memory Made in TaiwanNegotiableMOQ: 100 Pieces
Place of Origin
Taiwan, China
Model Number
M01985425
Usage
Other, Indoor / Outdoor
Theory
Other, Current loop data logger
Accuracy
+/-0.004mA
Features:
- USB datalogger shape with NEW DESIGN patent
- Store up to 16,000 points current loop from 4 to 20mA
- Smart logger with tripod receptacle and wrist strip for long time recording and fix on the wall
- Easy to connect to a current transmitter or automotive device, such as vehicle current, or other current source
- Software compatible with windows 98 / 2000 / XP / Vista / 7
- USB Interface for Set-up and Data Download
- Start and stop modes are selectable by pressing button or program (set up) from friendly software
- Special design with flat button (key) design for preventing accidently touch to stop or activate logging function
- Data can be saved, printed and exported to many other Applications
- It complies with all essential health and safety requirements set out in European Directives (CE marking)
- Made in Taiwan
Specifications:
- Record data : 4-20mA
- NO LCD display
- Resolution : 0.002mA
- Accuracy : ±0.004mA
- LED (Red, Green)
- Sample interval : 0~59 seconds 0~59 minutes, 0~6 hours selectable
- Hi / Lo threshold setting
- 5 Logger mode :
- Immediately
- Key start/stop
- Schedule
- Rollover when memory is full
- Real-time
- Memory Capacity : 16000
- Power : 3.6 Lithium battery
- Operating Temperature : -20~60°C (-40~140°F)
- Operating RH : <80%
- Logger size : 135.7 x 28.5mm
Set includes:
- 1 x USB current loop data logger
- 1 x 3.6 Lithium battery
- 1 x Instruction Manual
- Crocodile clips with leads wire
- 1 x CD software
- 1 x USB clear cap
