Measure Area Volume Pythagoras 60M/197ft Range Finder +/-1.5mm Accuracy Meter Feet Inches Units Digital Laser Meter Tool

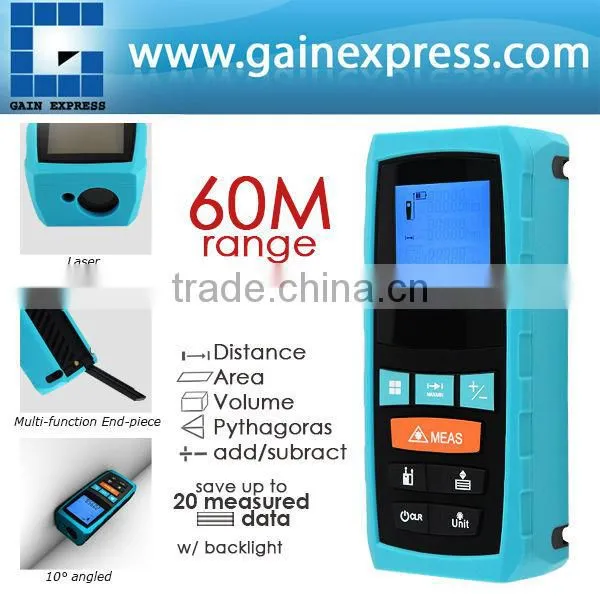

Measure Area Volume Pythagoras 60M/197ft Range Finder +/-1.5mm Accuracy Meter Feet Inches Units Digital Laser Meter Tool photo-1
Measure Area Volume Pythagoras 60M/197ft Range Finder +/-1.5mm Accuracy Meter Feet Inches Units Digital Laser Meter Tool photo-2
Measure Area Volume Pythagoras 60M/197ft Range Finder +/-1.5mm Accuracy Meter Feet Inches Units Digital Laser Meter Tool photo-3
Measure Area Volume Pythagoras 60M/197ft Range Finder +/-1.5mm Accuracy Meter Feet Inches Units Digital Laser Meter Tool photo-4
Measure Area Volume Pythagoras 60M/197ft Range Finder +/-1.5mm Accuracy Meter Feet Inches Units Digital Laser Meter Tool photo-5
Measure Area Volume Pythagoras 60M/197ft Range Finder +/-1.5mm Accuracy Meter Feet Inches Units Digital Laser Meter Tool photo-6
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Generic
Model Number:
DM-002-60
Measurement Accuracy:
+/-1.5mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Generic
Model Number DM-002-60
Measurement Accuracy +/-1.5mm
Measurement Range 0.1~60m

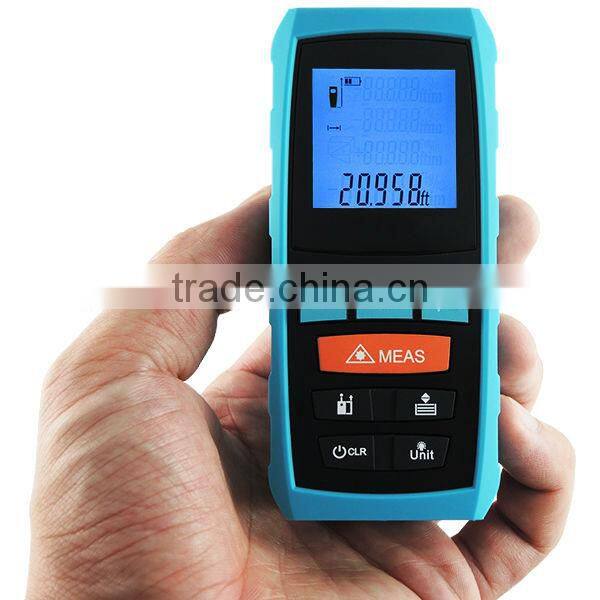

This handy 60m Laser Distance Meter is integrated with professional features such as Single or Continuous measurement, Area, Volume and Indirect measurement via Pythagorean Theorem. Has 10° inclination on sides for convenient reading when attached to a wall.

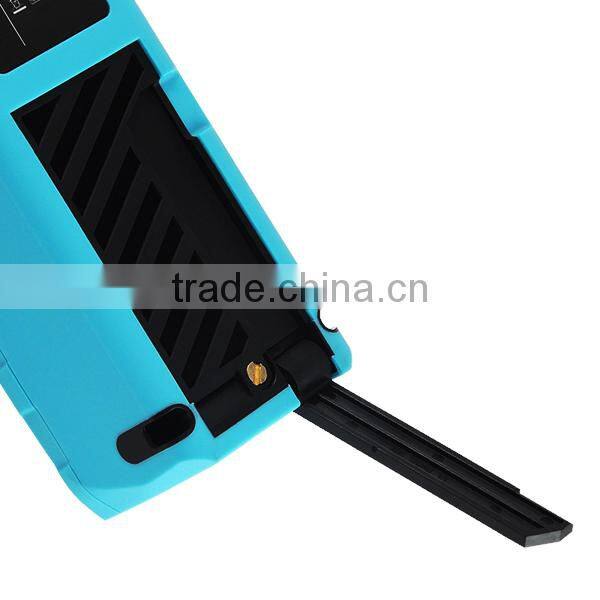

Covered by soft rubber designed for skid resistance and buffering. It has built-in multi-purpose end piece that help in measuring corners, gaps, in aperture or from wet floor, and mussy surface, you can get the right date with no need of any other tool.









Features:

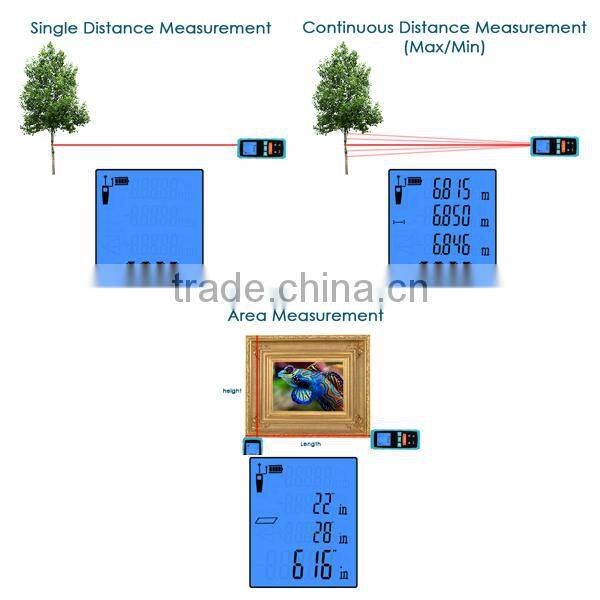

  • Measure distance, area, volume, add/subtract and Pythagoras
  • Single distance measurement
  • Continuous distance measurement
  • Maximum, Minimum and Last measured data value simultaneous display

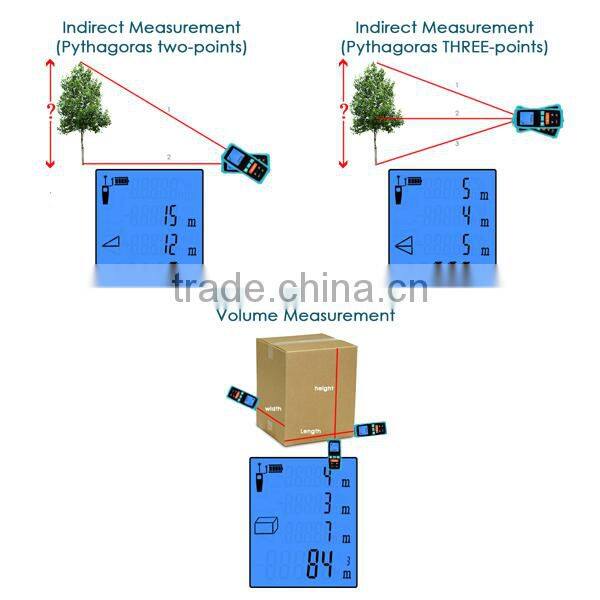

  • Indirect Measurement using Pythagorean Theorem
  • 2-point and 3-point pythagoras
  • Triangle area measurements

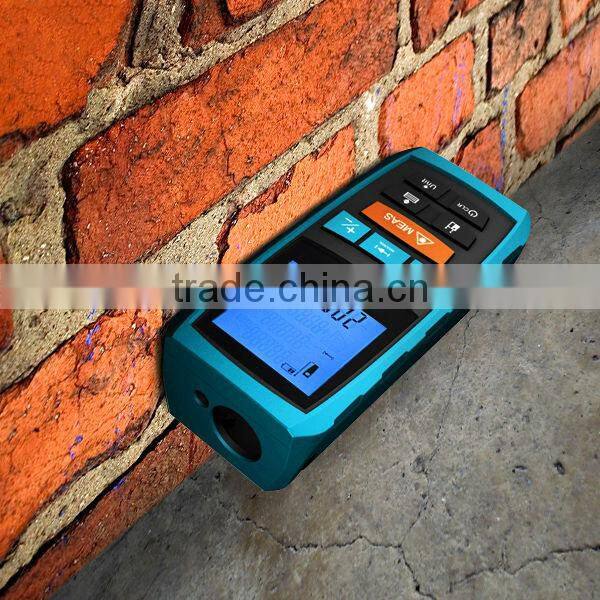

  • 10° inclination on sides for convenient reading when attached to a wall.
  • Auto/Manual power off
  • Backlight and Auto laser off functions
  • Stores or Saves / Recalls 20 measured data sets
  • 2 Reference Points: from Bottom or Top of the meter
  • Enhanced robustness with IP54 ingress protection
  • Beautiful, robust with impressive geometry
  • Covered by soft rubber and anti-skidding lines on the two sides, enabling a comfortable and reliable gripping


Specifications:
  • Measuring range: 0.1~60m
  • Accuracy: ±1.5mm
  • Measuring units: Meter (m) / Inches (in) / Feet (ft)
  • Laser Class: Class 2M II
  • Laser Type: 635nm, <mW
  • Single Distance Measurement: Yes
  • Continuous Distance Measurement (Min/Max): Yes
  • Area/Volume Measurement: Yes
  • Indirect Measurement (Pythagoras): Yes
  • Beep: Yes

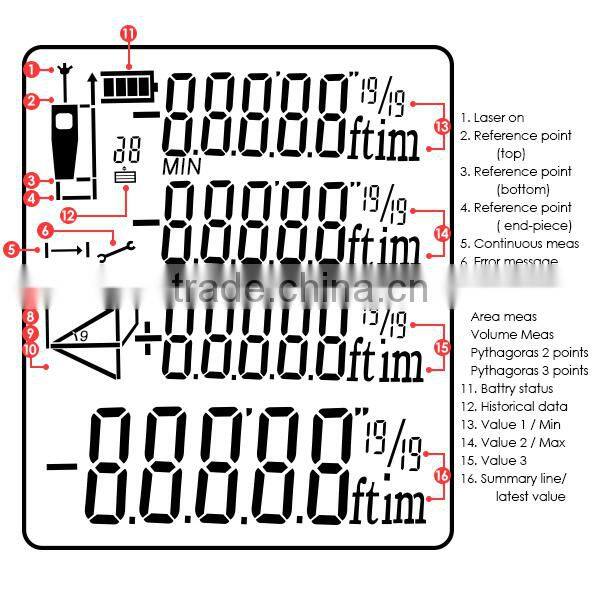

  • 4-line Display with Backlight: Yes
  • Historical Date: 20 sets

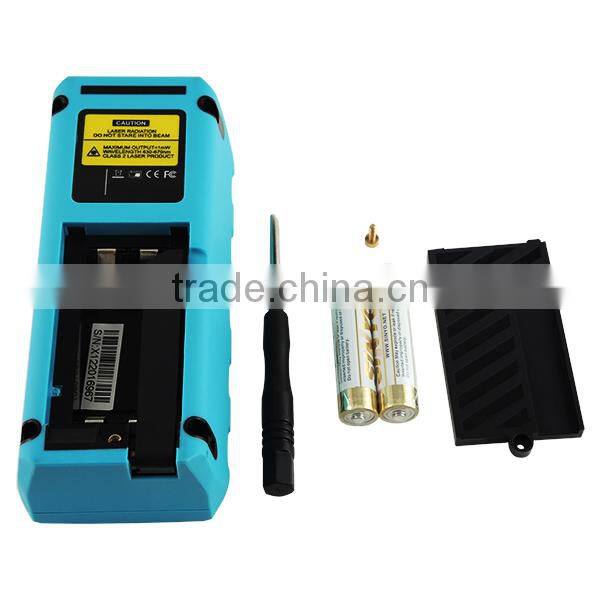

  • Battery type: 2 x AAA 1.5V Battery
  • Battery lifer: Up to 5,000 measurement times
  • Button Life: Over 1,000,000 times
  • Ingress protection: IP54
  • Operating temperature: 0~40°C
  • Storage temperature: -10~60°C
  • Auto Laser off: 30 seconds
  • Auto Instrument off : 180 seconds (3min)
  • Dimension: 115 x 52 x 32mm
  • Weight: 118g

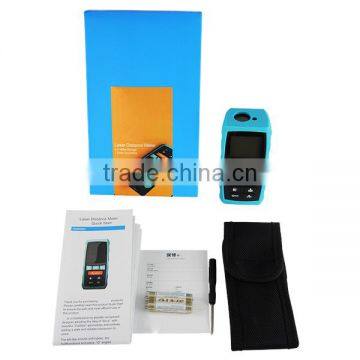

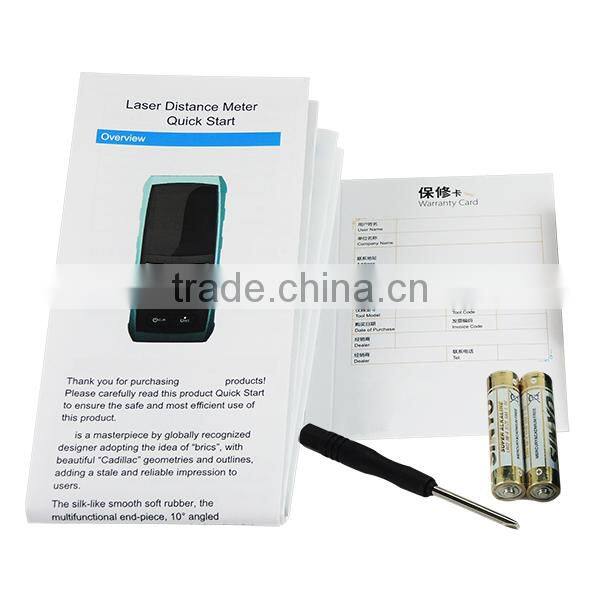

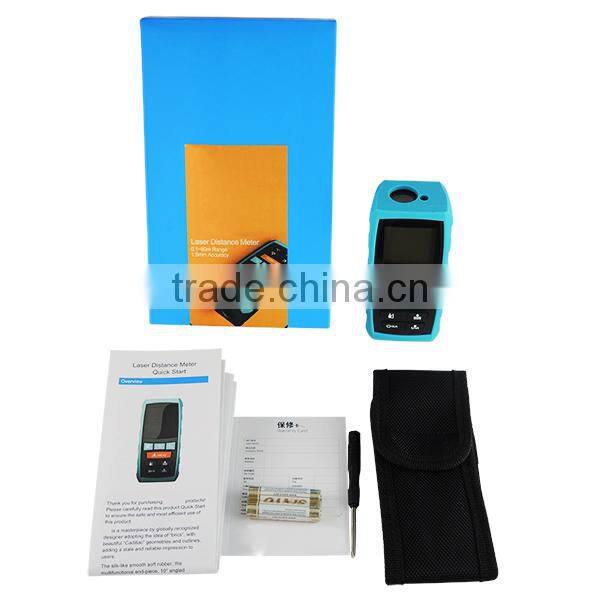

Set Includes:
  • 1 x 60m Laser Distance Meter
  • 1 x mini screw
  • 2 x 1.5V AAA Battery
  • 1 x Hand Strap
  • 1 x English User's Manual
  • Standard Packaging Box
