2in1 Digital Angle Finder Meter/ Protractor Stainless Steel With Moving Blade Ruler 360 Degree 400mm 0~999.9 Degree Range
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Generic
Model Number:
AG82305-200D
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Magnets and Spirit Level +/-180 Degree (0~360degree) Range +Data HOLD Function Digital 360 Degree Bevel Box / InclinometerNegotiableMOQ: 1 -
360 Degree 600mm + Stable Locking Function/ Portable Stainless Steel 2-in-1 Digital Angle Finder Meter Protractor RulerNegotiableMOQ: 1
-
Digital Bevel Box / Inclinometer / Protractor With Spirit Level Built-in Magnetic Base & Always Upright LCDNegotiableMOQ: 1
-
Digital 3in1Stud Detector Metal Voltage Cable Wood Finder Multi ScanNegotiableMOQ: 1
-
Digital Angle Finder Level Protractor Inclinometer Magnetic V-Groove 0~360 Degree With Backlight Industrial Automotive UseNegotiableMOQ: 1
Brand Name
Generic
Model Number
AG82305-200D

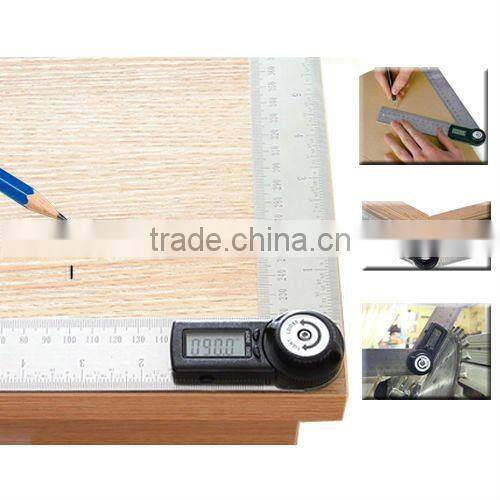

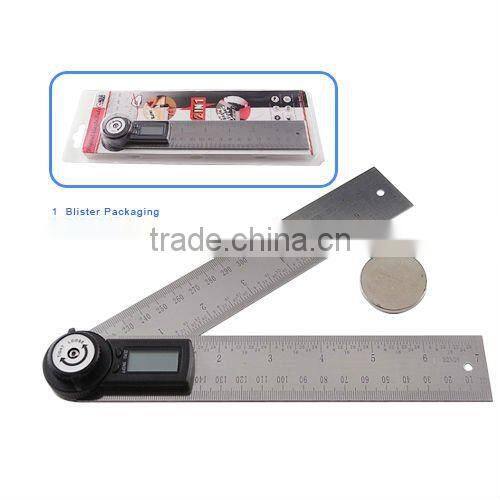

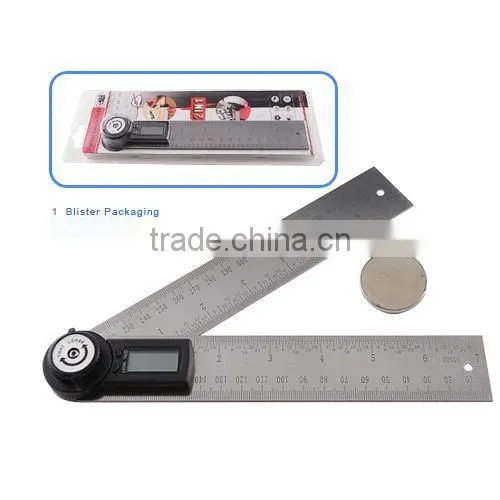

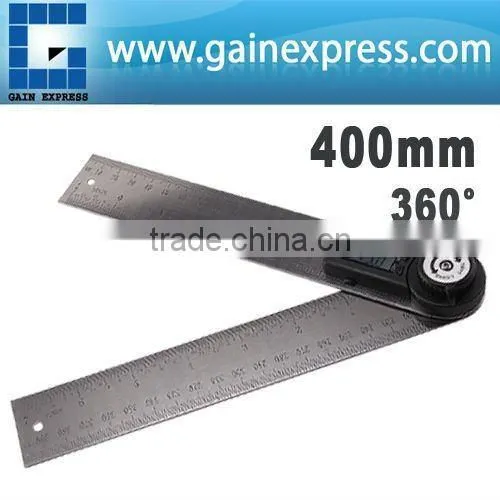

This is a 2-in-1 Stainless Steel ruler and digital angle finder with moving blade that calculates internal and external angles and measures length quickly and accurately. A convenient stable locking function can lock the measurement at any angle or position to transfer angle measurements..
It could be well used into various fields besides of Angle ruler, Straight ruler and Square Ruler and simple to mark points along two edges of a board or material simultaneously - especially useful for marking out mortise and tenon joints, stopped dadoes or any other cuts involving dual measurement on two 90° edges.
Features
- Quick 360° Digital Angle Gauge
- Measure angle and length (metric and imperial scale)
- Easy to measure all kinds of angle and draw lines
- Up to 400mm ruler measurement range

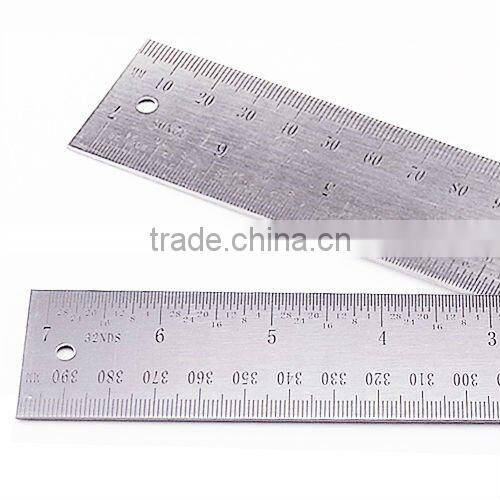

- Scaled at 1/32" imperial intervals on one side and 1mm metric on the other
- High resolution of 0.1° and easily transfer miter angles with no calculations
- Digital display measures 1" wide by 1/2" high
- Zero Setting function
- Automatically shut off function in 6 min
- Long Battery Life (more than 5000 hours in continuous use)
- Stable locking function, lock measurement at any angle
- Well used into various fields Angle Ruler, Straight Ruler and Square Ruler
- Ruler made of stainless steel for durability and rust protection for years of use
Specifications
- Standard: CE, RoHS, PAHs
- Measuring Range: 0~999.9° (More than 999.9° incorrect display)
- Accuracy: ±0.3°
- Resolution: 0.1°
- Ruler measurement range: 200mm (7 inches) each arm/blade
- Working Temperature: 0~50°C (32~122°F)
- Working Humidity: less than or equal to 85% R.H.
- Working Current: less than or equal to 50µA (More than 5000 hours in continuous use)

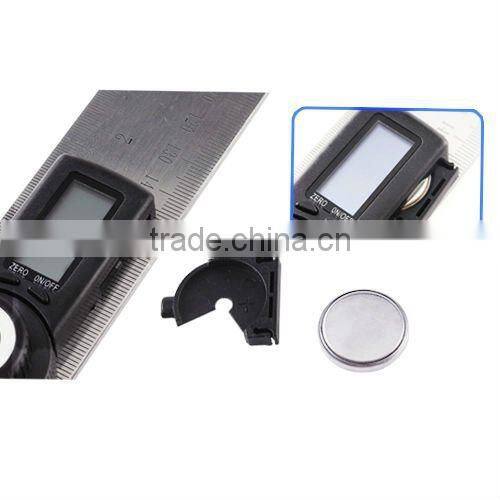

- Power: 1 x CR2032 3V Lithium Battery (Included)
- Dimension: 400 x 35 x 20mm
-
Weight: about 162g
Set Includes
- 1 x 2-in-1 Angle Finder
- 1 x 3V CR2032 Lithium Battery (FREE)
- English Instruction Manual

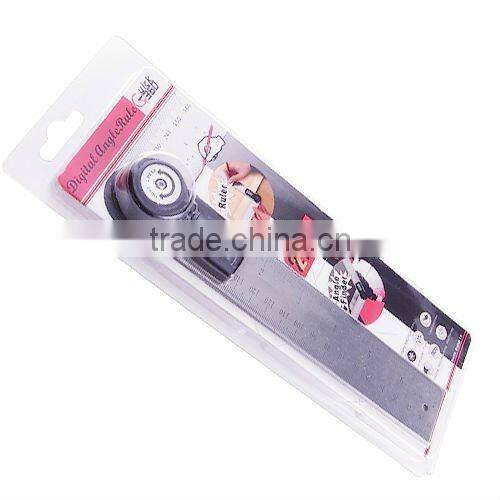

- Standard Factory Package
