Digital Bevel Box / Inclinometer / Protractor With Spirit Level Built-in Magnetic Base & Always Upright LCD
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Generic
Model Number:
810-100SS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital 3in1Stud Detector Metal Voltage Cable Wood Finder Multi ScanNegotiableMOQ: 1 -
Digital Angle Finder Level Protractor Inclinometer Magnetic V-Groove 0~360 Degree With Backlight Industrial Automotive UseNegotiableMOQ: 1
-
Digital Angle Gauge Meter Protractor 360 Degree Magnets Base Level Slope Bevel Box InclinometerNegotiableMOQ: 1
-
Digital LCD Tread Magnetic Self Standing Aperture 80mm Hand Routers Depth GaugeNegotiableMOQ: 1
-
Digital Bevel Box Gauge Angle Protractor With 3 Strong Disk Magnet Waterproof InclinometerNegotiableMOQ: 1
Brand Name
Generic
Model Number
810-100SS

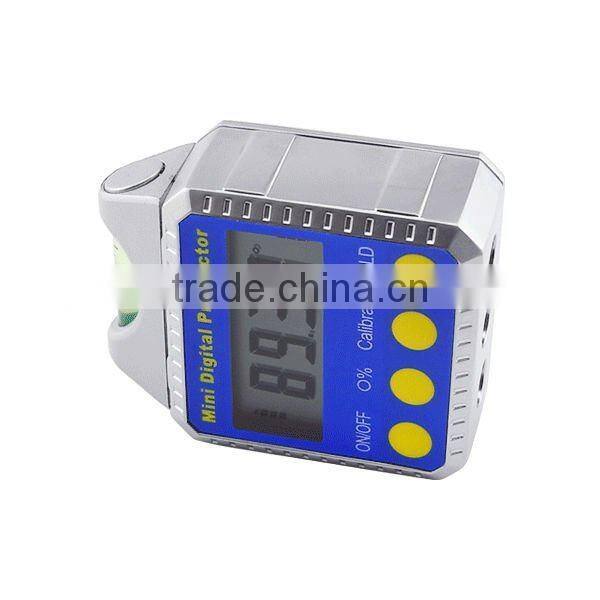

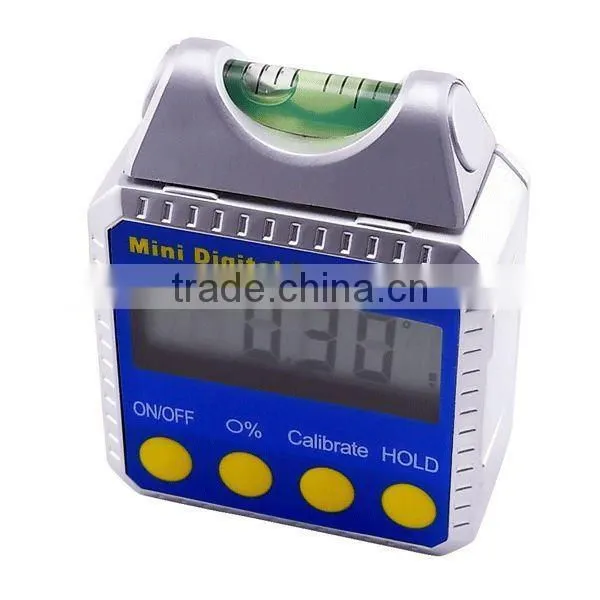

A revolutionary inclinometer provides angle measurement within ±180° (0 ~ 360°) range in wide variety of application. Featuring the large and clear LCD with results always in upright position at any given angle and the built-in Spirit Level so that it can indicate whether a surface is plumb or level. The state-of-the-art sensor and microprocessor circuit provides unsurpassed accuracy throughout the protractor's 360° range. In addition, placing the meter on a reference surface zero will give a result of the measured angle within 0.1° accuracy. The built-in strong magnets on the base enables it to be fixed securely on to any magnetic surface for easy and fast bevel angle setting.
Works great with miter and table saws.
Applications
- Platform monitoring
- Drainage angles and run-off slopes
- Grader and tractor work alignment
- Setting blade angle of Circular Saws
- Tool setting on Lathes
- Setting work piece angle for milling
- Setting blade angle of Miter Saws
- Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
Features:

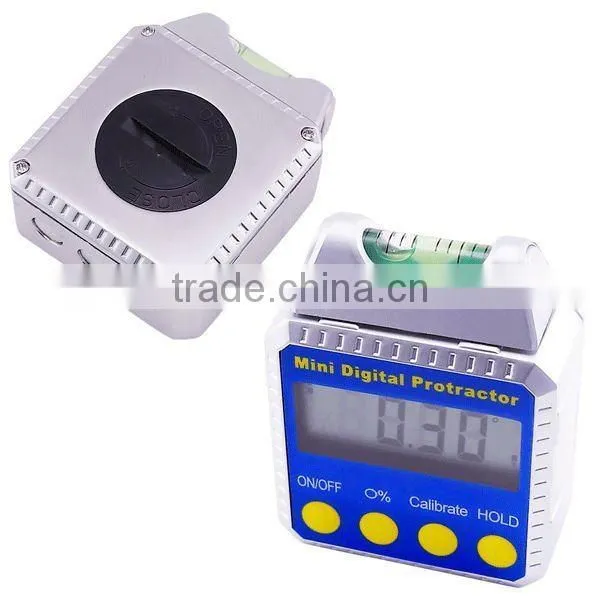

- Display remains upright to enable viewing at all angles

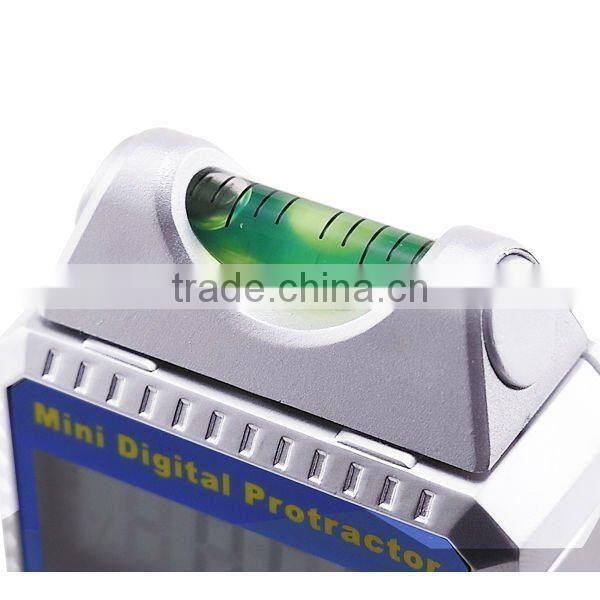

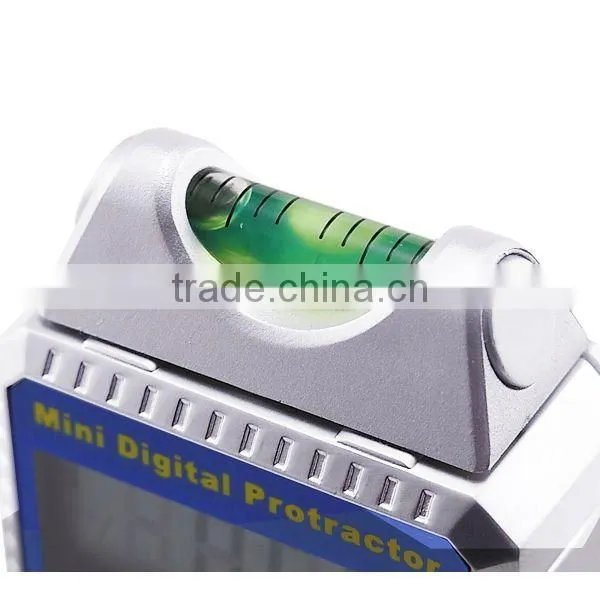

- Large and Clear spirit level via
- Absolute and relative measurements conversion
- Degree and Percentage of slope in conversion
- Measuring range of 4 x 90° with ±0.3° repeatability
- Large and clear LCD display with 0.1° resolution
- Data hold function
- Calibrates to any reference surface with calibrate button

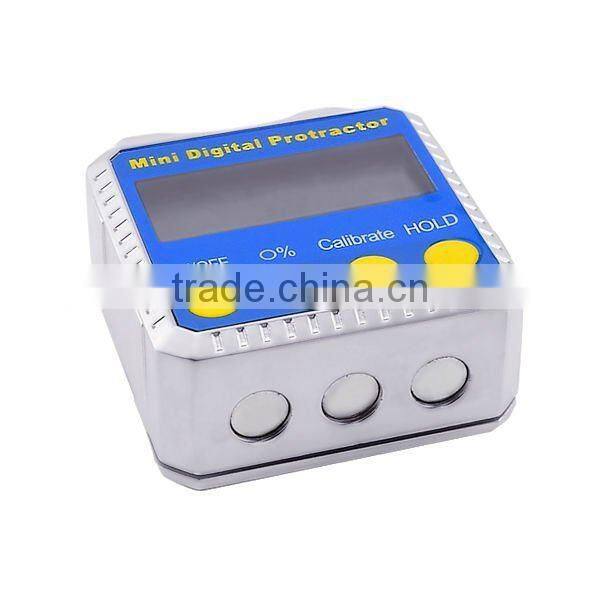

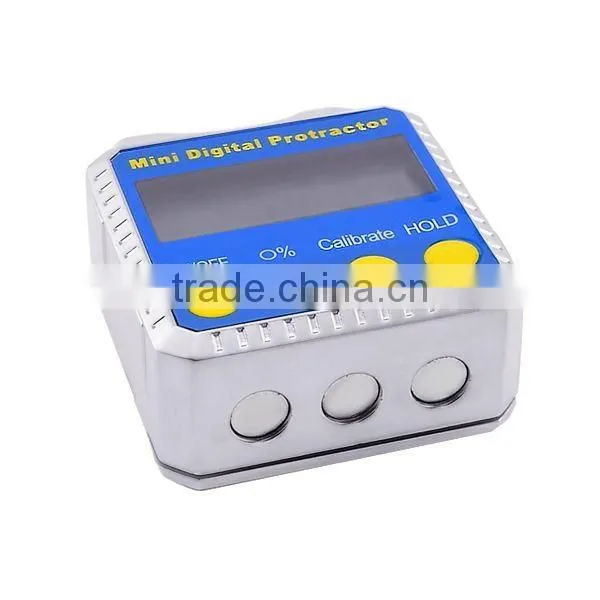

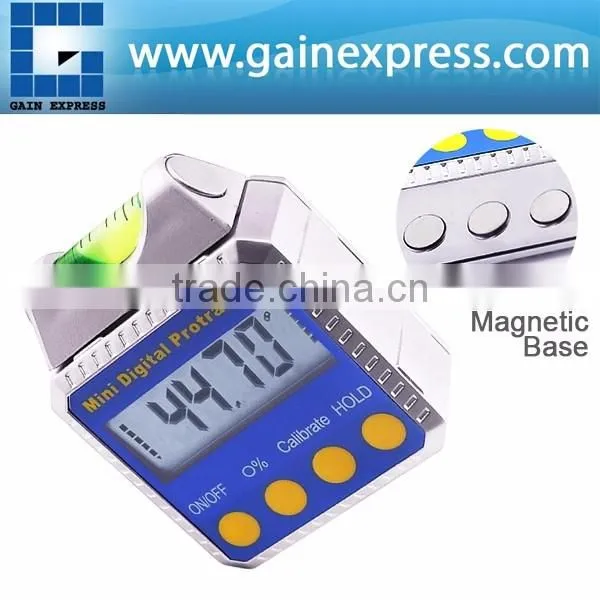

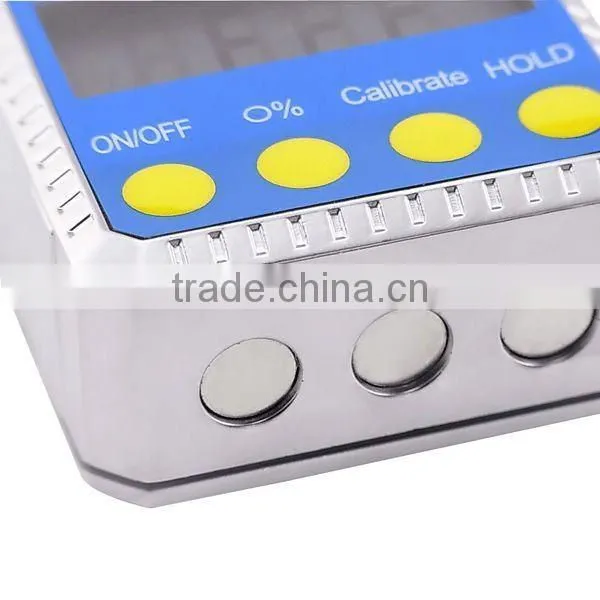

- Three magnets on the base to secure attachment to any magenetic surface and hands free readings
- Display enter state of absolute angle measurement everytime you switch it on (even if batteries are changed)
- Compact size allows you to take it anywhere
- Precise, quick & highly accurate measurement
- 2 years Warranty
- Essential for a wide range of applications:
- Platform monitoring
- Drainage angles and run-off slopes
- Grader and tractor work alignment
- Setting blade angle of Circular Saws
- Tool setting on Lathes
- Setting work piece angle for milling
- Setting blade angle of Miter Saws
- Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
Specifications:
- MeasuringRange: 4 x 90°
- Resolution: 0.1°
- Repeatability: ±0.3°
- Working Temperature: 0 ~ 40°C
- Relative humidity: 40 ~ 80%

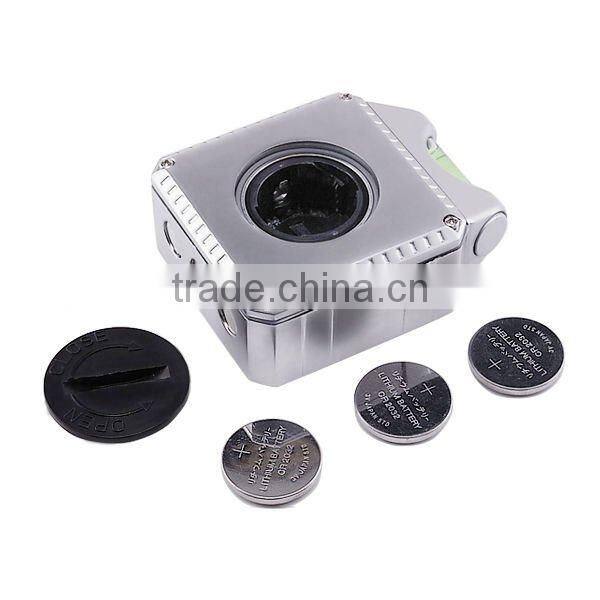

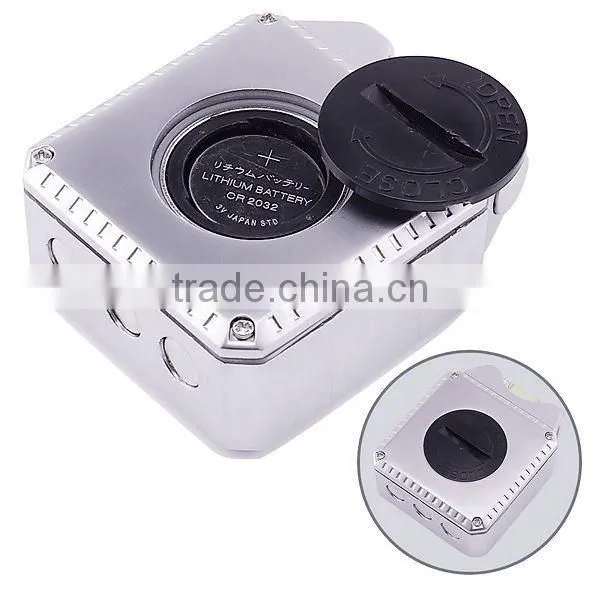

- Power Supply: 3 x 3V CR2032 Battery (included)
- Size: approx. 51 x 65 x 27mm (2.01' x 2.56' x 1.06' inch)
- Weight: 129 g (including batteries)

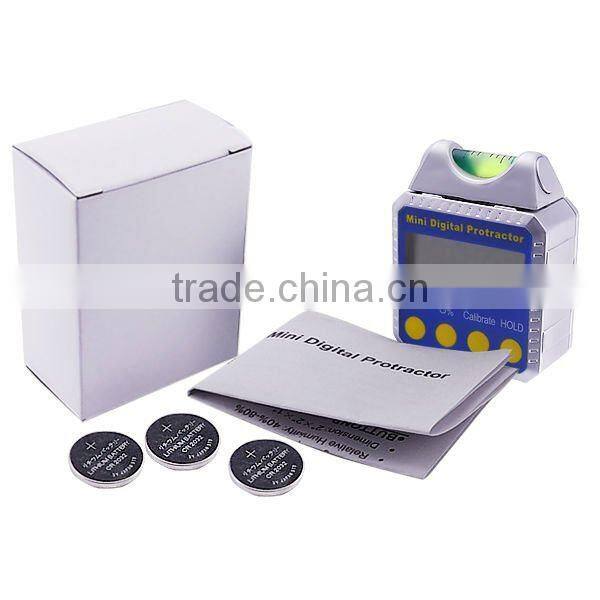

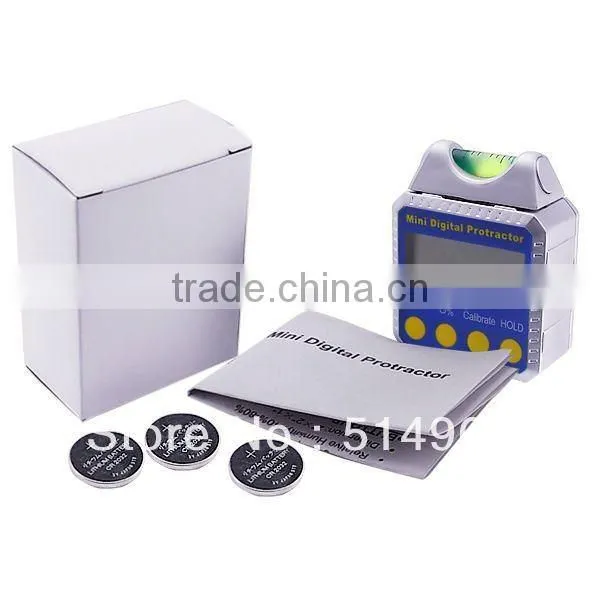

Set Includes:
- 1 x Bevel Box with Spirit Level
- 3 x 3V CR2032 Batteries (installed)
- 1 x English Instruction Manual
- Standard Factory Package
