(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans

Qingdao Peng Sheng Electrical Appliance Co., Ltd.
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans thumbnail-1
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans thumbnail-2

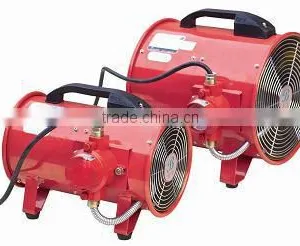

(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans thumbnail-3
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans thumbnail-4
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans thumbnail-5
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans thumbnail-6
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans photo-1
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans photo-2

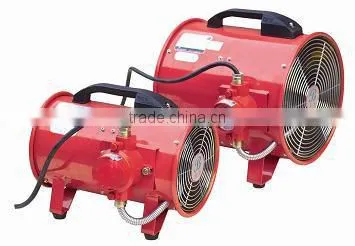

(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans photo-3

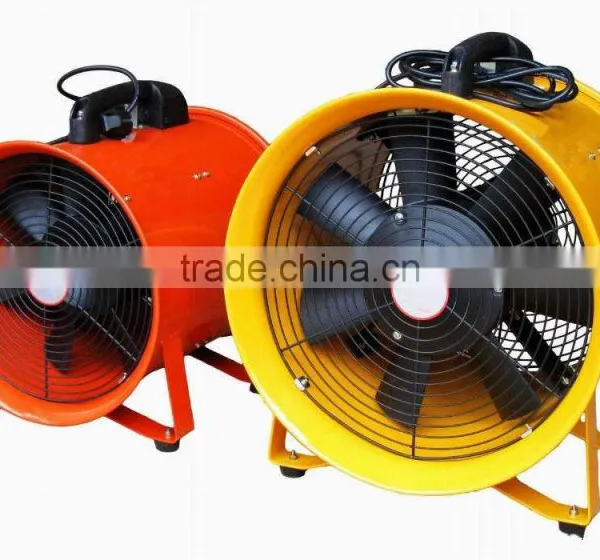

(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans photo-4
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans photo-5
(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans photo-6
US$ 35 - 85 MOQ: 10 Sets
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Other, Hand portable axial fan
Blade Material:
Other, Aluminum
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Other, Hand portable axial fan
Blade Material Other, Aluminum
Place of Origin Shandong, China
Brand Name PengSheng
Model Number SHT-30
Voltage 220V/380V
Power 520W
Air Volume 65m3/min
Speed 280rpm
Certification CCC, CE, Other, CCC, CE, ISO9001
After-sales Service Provided Overseas service center available

(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans

Product Description
1.Typical Feature and Application
High efficiency, low noise, low temperature rise
Easy to move, easy to use
Suitable for exhausting waste gas in welding workshop, drying the cleaning floor, also can be used in the place with bad ventilation condition
Model No.:8 inch,10 inch, 12 inch, 14 inch

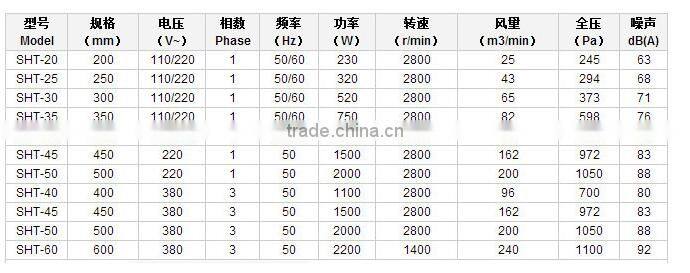

2. Performance Range
Fan TypePortable Axial Fan
CertificateCE,CCC
Electricity Current TypeAC(Alternating Current)
Voltage220V
Frequency50HZ
Power0.37KW-1.1KW
Speed2800RPM
Air Volume3780m³/h up to 7350 m³/h
Static Pressure145Pa up to 265Pa
Motor Standard Motor

3.Composition
Fan Housingfan housing, fan casing manufactured with mild steel or galvanized sheet  steel. Casing covers the overall length of motor and impeller. It is welded with mild steel plate  Casing can also provided with foot mounting arrangement to install fan on the ground.
Impellerthe punch forming blades are made of aluminum or galvanized steel.
MotorStandard Motor, cast Iron with pure copper

(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans(SHT) 12'' Hand Portable Axial Air Movers and Axial Fans

Before set up the fan, check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts.
When the fan is rotating, check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing, it can not higher than ambient temperature 40 °c
 If the fan has very severe shock, hitting ,and bearing temperature rise rapidly, please stop the fan right away.


5.Fan Certificate and Quality Control



Our Advantage

1.Small volume, high air volume, high efficiency, low noise, light vibration,easy to installation and so on.

2.Widely applied for the ventilation in dwellings, industrial constructions and labs, in environment with strict limit to noise, or in air conditioning, air purifying and freezing industries etc.

3.The fan adopts mold production through static and dynamic balance adjustment, and its surface adopts high-grade electrostatic spraying treatment.

4.The gas delivered by the series of fan cannot have sticky matters, and is noncorrosive, non-flammable and non-explosive.

FAQ



 Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?



1.Good quality, Competitive price, Fast delivery.

2. We have a R&D team who have average 10 years experience in designing and producinfans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !



3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.



4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.



5. If you have any problems or suggestions about our products  or service, you can contact me  or our sales manager whenever you want. We will give you a satisfying reply.

Contact Way

If you can't find the datas you need, pls send us your performance requirements,

we will provide you customized design service in 8 hours.

       Skype            :qdpsdq.dong

       Mobile          :+86 13079292921

       My name      : Anthony Lu
