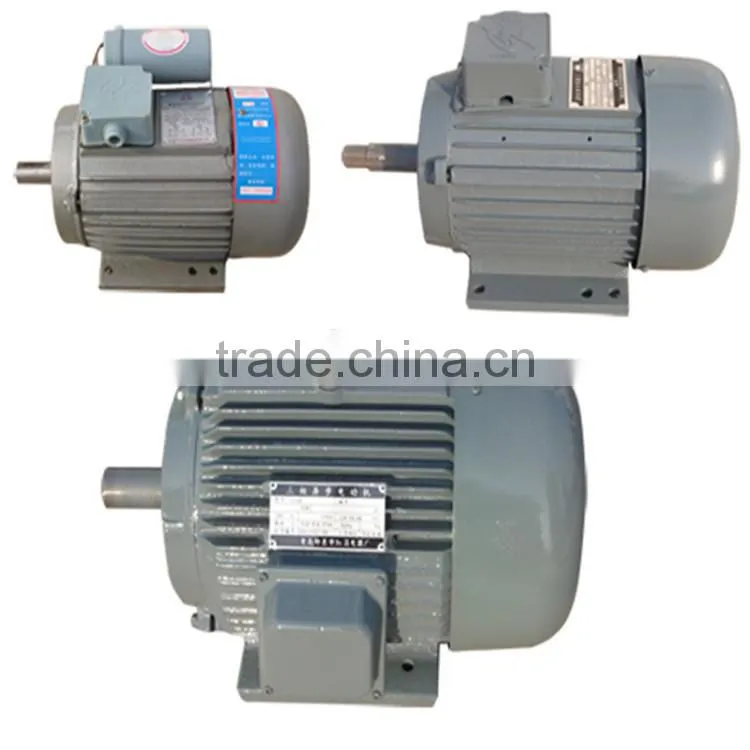

0.12~200kw Electric Motor With CE Certificate

Qingdao Peng Sheng Electrical Appliance Co., Ltd.
0.12~200kw Electric Motor With CE Certificate thumbnail-1
0.12~200kw Electric Motor With CE Certificate thumbnail-2
0.12~200kw Electric Motor With CE Certificate thumbnail-3
0.12~200kw Electric Motor With CE Certificate thumbnail-4
0.12~200kw Electric Motor With CE Certificate thumbnail-5
0.12~200kw Electric Motor With CE Certificate thumbnail-6
0.12~200kw Electric Motor With CE Certificate photo-1

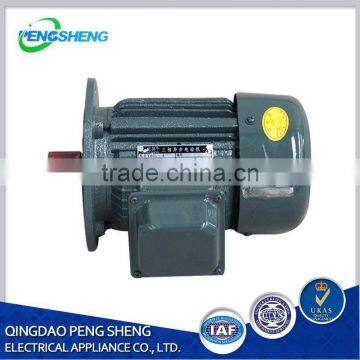

0.12~200kw Electric Motor With CE Certificate photo-2

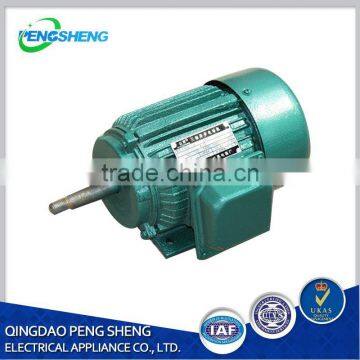

0.12~200kw Electric Motor With CE Certificate photo-3

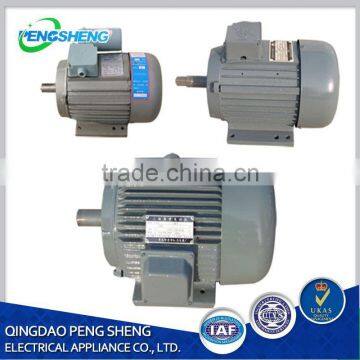

0.12~200kw Electric Motor With CE Certificate photo-4
0.12~200kw Electric Motor With CE Certificate photo-5
0.12~200kw Electric Motor With CE Certificate photo-6
US$ 10 - 125 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PengSheng
Model Number:
Y-132S-4
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PengSheng
Model Number Y-132S-4
Type Asynchronous Motor
Frequency 1350-2880r/min, 50/60HZ
Output Power 0.75-315kw
Protect Feature Explosion-proof
Phase Three-phase
Certification CCC, CE, Other, CCC, CE, ISO9001
AC Voltage Other, 220/380V
Place of Origin Shandong, China
Efficiency IE 2

0.12~200kw Electric Motor with CE Certificate



Product Description



1. CE / ISO Certified;.

2. Brilliant new materials adopted, 100% no refurbished parts and top quality copper winding.

3. Professional Design in structure, IE2 high efficiency, C&U bearing and SKF bearing both available.

4. Novel fine Finish with good technique.

5. Professional engineers team and full set of precision processing machines, Customization available.

6. Insulation class: F, E, H, B, all available.

7. Color customization workable for certain quantity.

8. Quality-oriented workshop management system, not quantity-oriented;

9. 100% Finished products inspection, 100% quality approval.

Y2 series motors are defined as totally-enclosed, fan cooling and squirrel cage type; and noted for their novel design, beautiful modeling, low noise, high efficiency, large torque, excellent starting performance, compact structure, easy maintenance and etc.



 Working Condition

Shell Protection Class: IP54 or IP55, Cooling Method: IC411, Working Way: Continuous duty (SI), Rated Voltage: 380V Insulation class: F / H / E Rated Frequency: 50HZ /60HZ Connection: Y-shape for 3KW and below, while<img src="/img/pb/714/835/863/863835714_539.jpg" alt="Extruder Motor of IE2 High Efficiency (CE, TUV, SGS)" ori-width="14" ori-height="19">-shape for 4kw and more.

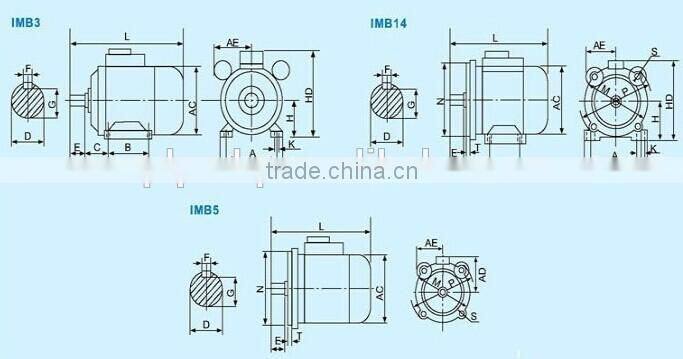

installation

0.12~200kw Electric Motor with CE Certificate



technique data

Motor Type

Rated Power

Current

Speed

(r/min)



Power Factor



Efficiency



Rated Current



Locked Current

Rated Current

Locked Torque

Rated Current

Maximum Torque

Rated Current

Noise LwdB



Synchronous Speed    1500 r/min

YX3-80M1-4

0.55

1.4

1420

0.75

78.1



3.7

6.3

2.3

2.3

56

YX3-80M2-4

0.75

1.8

1425

0.75

79.6

5.0

6.5

2.3

2.3

56

YX3-90S-4

1.1

2.7

1425

0.75

81.4

7.4

6.6

2.3

2.3

59

YX3-90L-4

1.5

3.6

1425

0.75

82.8

10.1

6.9

2.3

2.3

59

YX3-100L1-4

2.2

4.8

1430

0.81

84.3

14.7

7.5

2.3

2.3

64

YX3-100L2-4

3

6.4

1430

0.82

85.5

20.0

7.6

2.3

2.3

64

YX3-112M-4

4

8.4

1455

0.82

86.6

26.3

7.7

2.3

2.3

65

YX3-132S-4

5.5

11.4

1465

0.82

87.7

35.9

7.5

2.0

2.3

71

YX3-132M-4

7.5

15.2

1465

0.83

88.7

48.9

7.4

2.0

2.3

71

YX3-160M-4

11

21.6

1470

0.85

89.8

71.5

7.5

2.2

2.3

73

YX3-160L-4

15

28.9

1470

0.86

90.6

97.4

7.5

2.2

2.3

73

YX3-180M-4

18.5

35.4

1470

0.86

91.2

120

7.7

2.2

2.3

76

YX3-180L-4

22

42.0

1470

0.86

91.6

143

7.8

2.2

2.3

76

YX3-200L-4

30

56.9

1475

0.86

92.3

194

7.2

2.2

2.3

76

YX3-225S-4

37

69.8

1480

0.86

92.7

239

7.3

2.2

2.3

78

YX3-225M-4

45

84.7

1480

0.86

93.1

290

7.4

2.2

2.3

78

YX3-250M-4

55

103

1485

0.86

93.5

354

7.4

2.2

2.3

79

YX3-280S-4

75

137

1485

0.88

94.0

482

6.7

2.2

2.3

80

YX3-280M-4

90

164

1485

0.88

94.2

579

6.9

2.2

2.3

80

YX3-315S-4

110

199

1485

0.88

94.5

707

6.9

2.2

2.2

88

YX3-315M-4

132

239

1485

0.88

94.7

849

6.9

2.2

2.2

88

YX3-315L1-4

160

286

1485

0.89

94.9

1029

6.9

2.2

2.2

88

YX3-315L2-4

200

358

1485

0.89

95.1

1286

6.9

2.2

2.2

88

YX3-355M-4

250

441

1495

0.90

95.1

1597

6.9

2.2

2.2

95

YX3-355L-4

315

555

1495

0.90

95.1

2012

6.9

2.2

2.2

95



 0.12~200kw Electric Motor with CE Certificate

0.12~200kw Electric Motor with CE Certificate0.12~200kw Electric Motor with CE Certificate



 0.12~200kw Electric Motor with CE Certificate



0.12~200kw Electric Motor with CE Certificate

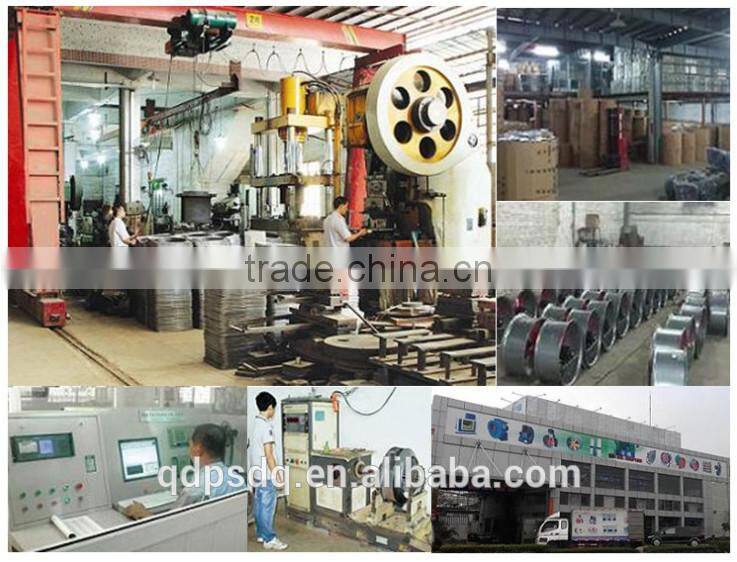

Company Profile

Certification

Our Advantage

1.Small volume, high air volume, high efficiency, low noise, light vibration,easy to installation and so on.



2.Widely applied for the ventilation in dwellings, industrial constructions and labs, in environment with strict limit to noise, or in air conditioning, air purifying and freezing industries etc.



3.The fan adopts mold production through static and dynamic balance adjustment, and its surface adopts high-grade electrostatic spraying treatment.



4.The gas delivered by the series of fan cannot have sticky matters, and is noncorrosive, non-flammable and non-explosive.

FAQ

 Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?

1.Good quality, Competitive price, Fast delivery.

 2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !

 3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.

4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.

5. If you have any problems or suggestions about our products  or service, you can contact me  or our sales manager whenever you want. We will give you a satisfying reply.

Contact Way



If you can't find the datas you need, pls send us your performance requirements,

we will provide you customized design service in 8 hours.
