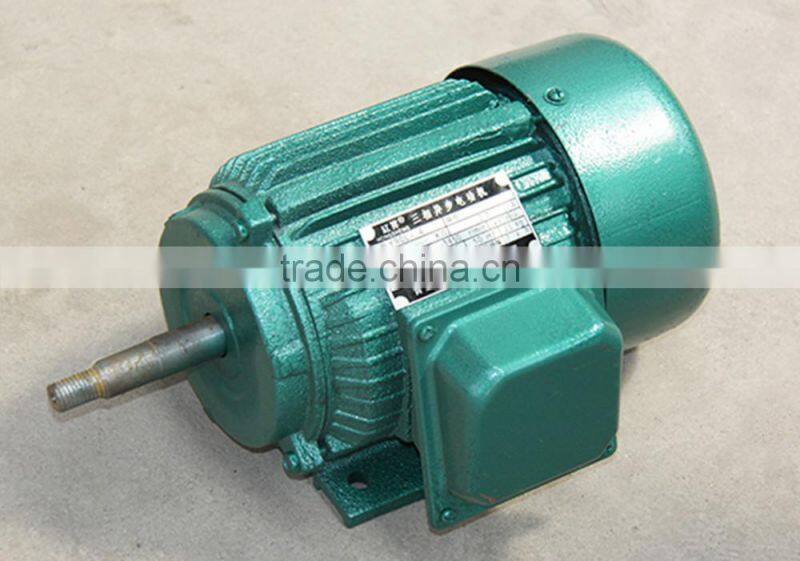

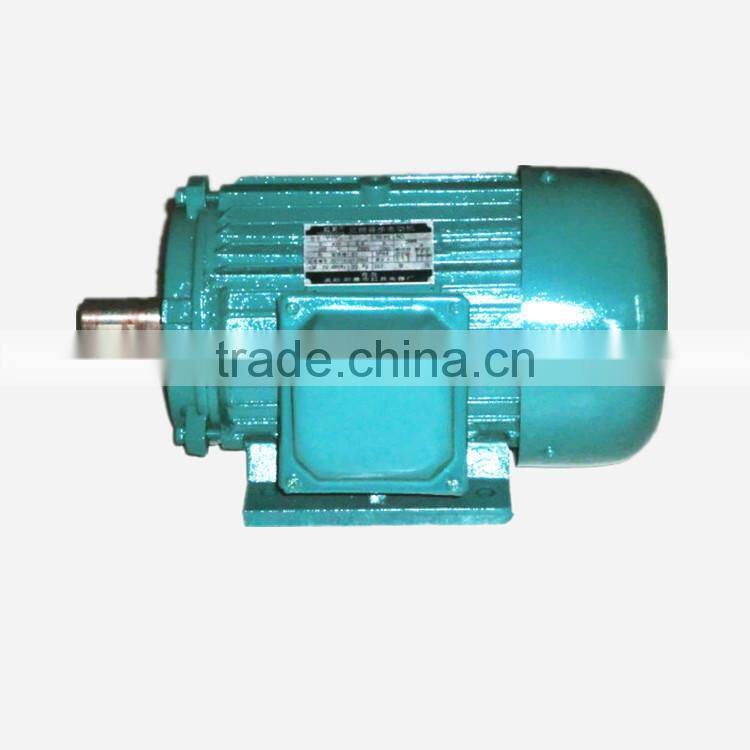

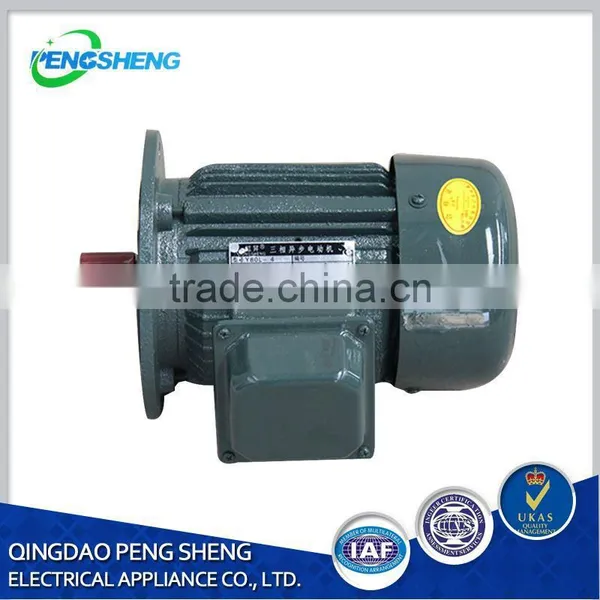

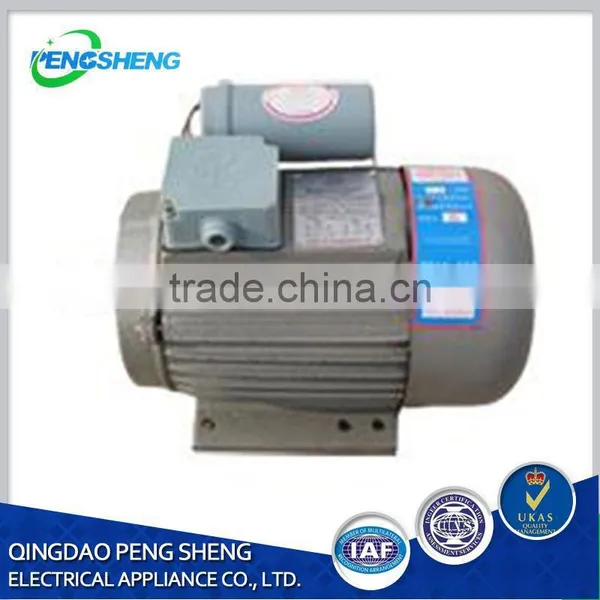

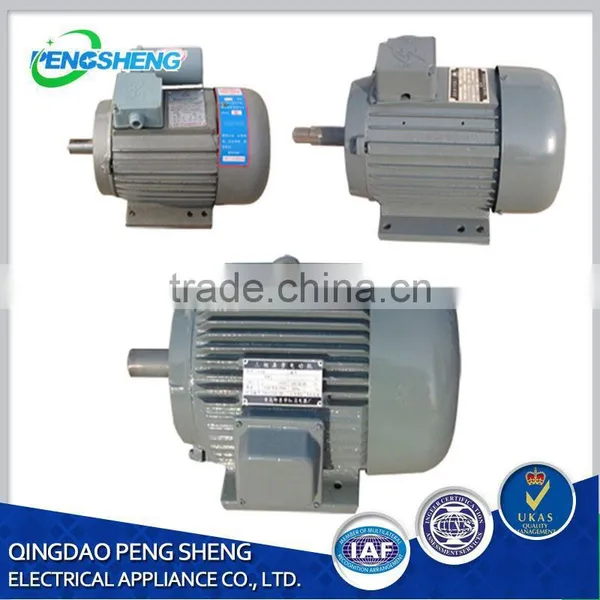

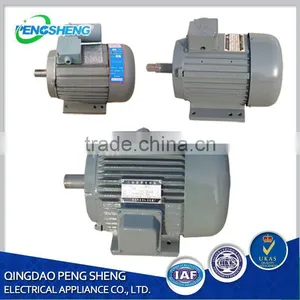

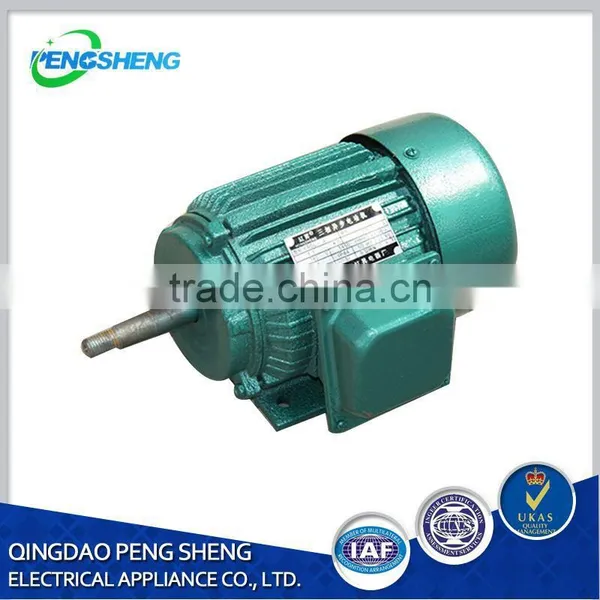

Y3 Series 3-Phase Electric Motors for Industry with ISO
Y series motor is a kind of low-voltage 3-phase cage induction motor, which is a basic series for general uses with frame range 80-315 and it's a new product with the national unified design.
Y series has the advantages of high efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque, Fixing measurement and power grade completely conform to IEC standard. It employs Grade B insulation, IP44 class for shell protection and IC411 cooling mode.
The rated voltage and frequency of Y series are respectively 380V and 50Hz. Y connection is adopted for motors below 3KW and "Δ" connection is adopted for those above 4KW.
Y series motor is commonly applied in machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, agitator and air compressor, etc.
| Model | Output power | Speed | Amps | Eff % | Cos φ | |
| KW | HP | r/min | A | |||
| Y-80M1-4 | 0.55 | 0.75 | 1390 | 1.5 | 73 | 0.76 |
| Y-80M2-4 | 0.75 | 1 | 1390 | 2 | 74.5 | 0.76 |
| Y-90S-4 | 1.10 | 1.5 | 1400 | 2.9 | 78 | 0.78 |
| Y-90L-4 | 1.50 | 2 | 1400 | 3.7 | 79 | 0.79 |
| Y-100L1-4 | 2.20 | 3 | 1420 | 5.2 | 81 | 0.82 |
| Y-100L2-4 | 3.00 | 4 | 1420 | 6.8 | 82.5 | 0.81 |
| Y-112M-4 | 4.00 | 5.5 | 1440 | 8.8 | 84.5 | 0.82 |
| Y-132S-4 | 5.50 | 7.5 | 1440 | 11.8 | 85.5 | 0.84 |
| Y-132M-4 | 7.50 | 10 | 1440 | 15.6 | 87 | 0.85 |
| Y-160M-4 | 11.00 | 15 | 1460 | 22.3 | 88 | 0.84 |
| Y-160L-4 | 15.00 | 20 | 1460 | 30.1 | 88.5 | 0.85 |
| Y-180M-4 | 18.50 | 25 | 1470 | 36.1 | 91 | 0.86 |
| Y-180L-4 | 22.00 | 30 | 1470 | 42.7 | 91.5 | 0.86 |
| Y-200L-4 | 30.00 | 40 | 1470 | 57.6 | 92.2 | 0.87 |
| Y-225S-4 | 37.00 | 50 | 1480 | 69.9 | 91.8 | 0.87 |
| Y-225M-4 | 45.00 | 60 | 1480 | 84.7 | 92.3 | 0.88 |
| Y-250M-4 | 55.00 | 75 | 1480 | 103 | 92.6 | 0.88 |
| Y-280S-4 | 75.00 | 100 | 1485 | 140 | 92.7 | 0.88 |
| Y-280M-4 | 90.00 | 120 | 1485 | 164 | 93.5 | 0.89 |
| Y-315S-4 | 110.00 | 150 | 1485 | 201 | 93.5 | 0.89 |
| Y-315M-4 | 132.00 | 180 | 1485 | 240 | 94 | 0.89 |
Company Profile
Certification
Our Advantage
1.Small volume, high air volume, high efficiency, low noise, light vibration,easy to installation and so on.
2.Widely applied for the ventilation in dwellings, industrial constructions and labs, in environment with strict limit to noise, or in air conditioning, air purifying and freezing industries etc.
3.The fan adopts mold production through static and dynamic balance adjustment, and its surface adopts high-grade electrostatic spraying treatment.
4.The gas delivered by the series of fan cannot have sticky matters, and is noncorrosive, non-flammable and non-explosive.
