Specifications
800 kva Generator- Prime Power:800kva
- Electronic Governor
- Low Fuel Consumption
- CE Approved

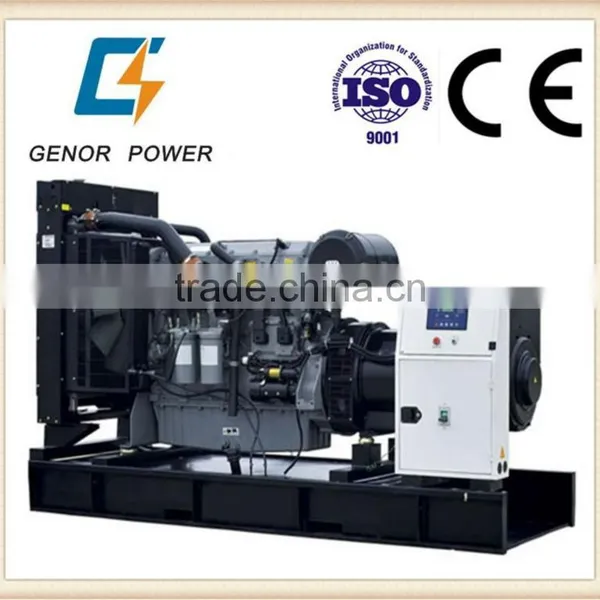

800 kva Generator With Stamford Alternator
General Features of Diesel Genset:
*Powered by heavy duty industrial diesel engine
*Radiator 40°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage battery
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*8 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.
*Genset type: open type or soundproof/silent type, or trailer type
* Maintenance and operation manual, quality certificate, etc.
*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%
and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
*Certificate: ISO9001:2008, CE (ESC/070119), BV
Generator set |
Genset Model |
GNRP800 |
|
Rating Power (kW/kVA) |
640/800 |
||
Standby Power(kW/kVA) |
720/900 |
||
System Voltage |
415/230 |
||
Rating Ammeter(A) |
1113 |
||
Diesel engine |
General data |
Engine model |
4006-23TAG3A |
Prime Power(kVA) |
800 |
||
Standby Power(kAV) |
900 |
||
number of Cylinder & Configuration |
6cylinders L-type |
||
Bore X Stroke (mm) |
160X190 |
||
Displacement(l) |
22.921 |
||
Compression Ratio |
13.6:1 |
||
Governor type |
Electronic governor |
||
Rated speed(rpm) |
1500 |
||
Exhaust system |
Exhaust gas flow(m³/min) |
193 |
|
Exhaust gas temperature(°C) |
500 |
||
Max. Exhaust Back Pressure (kpa) |
6.1 |
||
Air intake system |
Aspiration Type |
Turbocharged, air-air aftercooled |
|
Max. intake depression(kpa) |
6.4 |
||
Combustion air Volume(m³/min) |
67.3 |
||
Fuel system |
Rating Fuel Consumption(l/h) |
180 |
|
75% full Fuel Consumption(l/h) |
136.32 |
||
Lubrication system |
Total oil capacity(l) |
122.7 |
|
Max permissible oil temp(°C) |
110 |
||
Oil pressure at rated rpm(kpa) |
240-300 |
||
Cooling system |
Total Coolant capacity(l) |
105 |
|
Max. temperature of coolant(°C) |
98 |
||
Alternator |
Alternator model |
HCI634G |
|
Rating Voltage(V) |
415/240 |
||
Rating Capacity(KW/KVA) |
640/800 |
||
Eff.% |
94.4% |
||
Power Factor |
0.8 |
||
Exciting type |
Brushless self-exciter AVR |
||
Voltage regulation |
±1% |
||
No. of Phase |
3 phase 4 wire |
||
Enclosure Class |
IP123 |
||
Class of Insulation |
H |
||
Battery |
Rating Capacity(AH) |
2X200AH |
|
Dimension |
Generator set dimension (LXWXH) |
4300x1540x2200 |
|
Weight |
Generator set Net Weight (kg) |
5600 |
|
Control system with ATS :
Auto start when power goes out
Auto stop when power comes back on
Worldwide technical support with programmable software download
Full online documentation
Trouble shooting symbols to assist owner on concerns with the generator
Safety shutdown feature to protect the engine and generator from damage
Totally digital with few points of contact to the engine to increase reliability
Exercise features and daily start and stop programmable
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto ajustment
