With UK Perkins Engine 10kva Diesel Power 8kw Generator Set
US$ 5,895 - 18,965
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GENOR POWER
Model Number:
GNRP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Transfer Switch GeneratorUS$ 3,959 - 9,955MOQ: 1 Set -
10kva Generatore DieselUS$ 3,595 - 35,959MOQ: 1 Set
-
20kva-1000kva Generador DieselUS$ 2,999 - 99,999MOQ: 1 Set
-
With Perkins Diesel Engine 27kw Home Emergency Standby GeneratorUS$ 6,785 - 7,599MOQ: 1 Set
-
Factory Direct ! Water Cooled 60 KVA Diesel Generator With Leroy SomerUS$ 5,000 - 6,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
GENOR POWER
Model Number
GNRP
Output Type
AC Three Phase
Speed
1500rpm or 1800rpm
Frequency
50Hz or 60Hz
Rated Power
8KW
Rated Voltage
220V/380V, 230V/400V, 240V/415V
Rated Current
14A

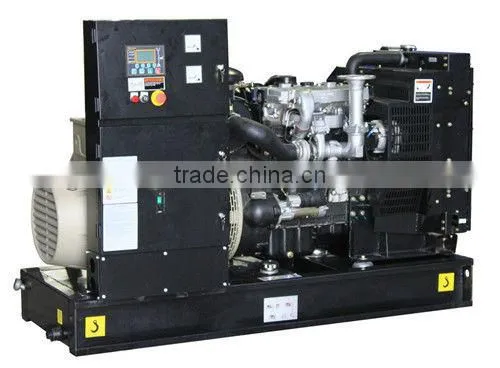

With UK Perkins Engine 10kva Diesel Power 8kw Generator Set
| diesel generator set | ||
| GEN-SETS | Model | GNRP8 |
| Engine Brand | UK Imported | |
| Rated Output(kva) | 10 | |
| Current(A) | 14.4 | |
| Power factor(cosφ) | 0.8 | |
| Frequency(hz) | 50/60 | |
| Fuel Consumption(g/kw.h) | ≤252 | |
| The regulating rate of instantaneous voltage | ≤-10%/ +15% | |
| The time of steady voltage | ≤1.5sec | |
| The waving rate of voltage | ≤0.5% | |
| The regulating rate of steady frequency | ≤3% | |
| The regulating rate of instantaneous frequency | ≤±5% | |
| The time of steady frequency | 3sec | |
| The waving rate of frequency | ≤0.25% | |
| Dim L×W×H(mm) | 1200X700X1100 | |
| Weight(kg) | 300 | |
| Diesel engine | Engine model | 403D-11G |
| Cylinder | 3 | |
| Bore*Stroke(mm) | 77*81 | |
| Lubricating oil capacity | 4.9 | |
| Rated speed(rpm) | 1500/1800 | |
| Cooling method | Closed water cooling | |
| Starting system | Electrical start | |
| Displacement(L) | 1.13 | |
| Alternator | Brand | Stamford/Marathon/Engga |
| Type | Brushiess | |
| The connecting way of the phase | Three phases four lines | |
| Insulation degree | H degree | |
| Grading Protection | IP23 | |

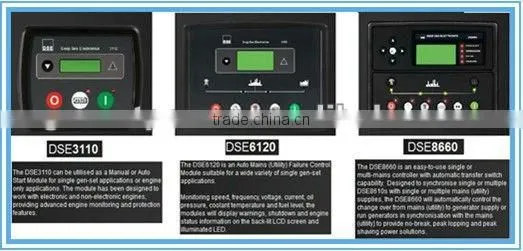

Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm system and
arrestor for any situation as the start defeat, the water is over temperature, the oil
pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
