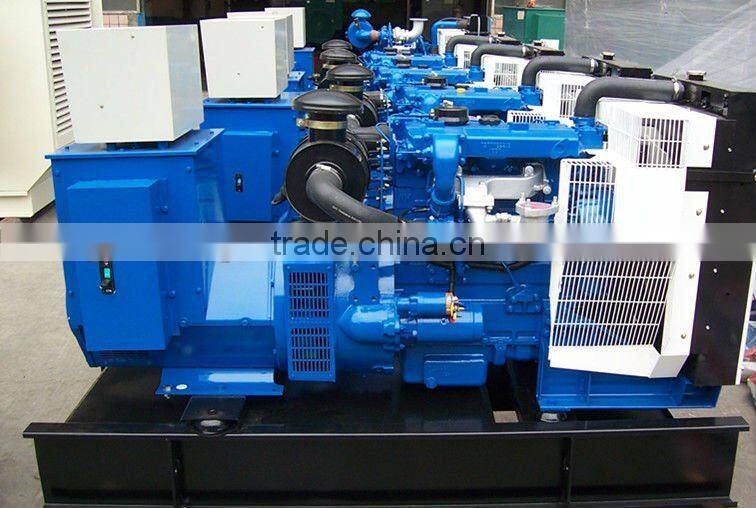

Factory diesel electric generator 55kva manufacturing in China
Genset Features:
1. Genuine UK industrial diesel engine
2. Radiator 40°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9.Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

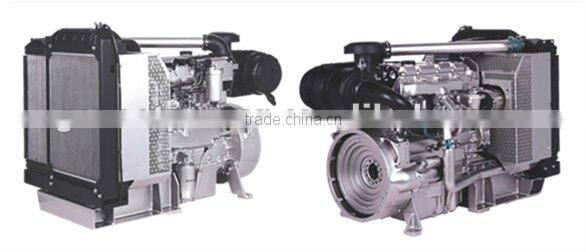

Engine Features:
1. Genuine UK industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
4. standard alarm system
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
Specification of generator
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRP10 | 7.3 | 9.1 | 8 | 10 | 403D-11 | 252 | 3 | 1.131 | 77*81 |
| GNRP15 | 10.6 | 13.25 | 12 | 15 | 403D-15 | 264 | 3 | 1.496 | 84*94 |
| GNRP23 | 16 | 20 | 18 | 23 | 404D-22 | 243 | 4 | 2.216 | 84*100 |
| GNRP33 | 24 | 30 | 26 | 33 | 1103A-33G | 210 | 3 | 3.3 | 105*127 |
| GNRP50 | 36 | 45 | 40 | 50 | 1103A-33TG1 | 212 | 3 | 3.3 | 105*127 |
| GNRP65 | 48 | 60 | 52 | 65 | 1103A-33TG2 | 211 | 3 | 3.3 | 105*127 |
| GNRP73 | 52 | 65 | 58 | 73 | 1104A-44TG1 | 207 | 4 | 4.4 | 105*127 |
| GNRP88 | 64 | 80 | 70 | 88 | 1104A-44TG2 | 213 | 4 | 4.4 | 105*127 |
| GNRP103 | 75 | 94 | 82 | 103 | 1006TG1A | 210 | 6 | 5.99 | 100*127 |
| GNRP150 | 110 | 138 | 120 | 150 | 1006TAG | 205 | 6 | 5.99 | 100*127 |
| GNRP165 | 120 | 150 | 132 | 165 | 1006TAG2 | 205 | 6 | 5.99 | 100*127 |
| GNRP225E | 165 | 206 | 180 | 225 | 1306C-E87TAG3 | 220 | 6 | 8.7 | 116.6*135.9 |
| GNRP250E | 180 | 225 | 200 | 250 | 1306C-E87TAG4 | 219 | 6 | 8.7 | 116.6*135.9 |
| GNRP259E | 188 | 235 | 207 | 259 | 1306C-E87TAG5 | 221 | 6 | 8.7 | 116.6*135.9 |
| GNRP275E | 200 | 250 | 220 | 275 | 1306C-E87TAG6 | 223 | 6 | 8.7 | 116.6*135.9 |
| GNRP344E | 250 | 313 | 275 | 344 | 2206C-E13TAG2 | 201 | 6 | 14.6 | 137*165 |
| GNRP388E | 280 | 350 | 310 | 388 | 2206C-E13TAG2 | 198 | 6 | 14.6 | 137*165 |
| GNRP450E | 320 | 400 | 360 | 450 | 2206C-E13TAG3 | 201 | 6 | 14.6 | 137*165 |
| GNRP500E | 360 | 450 | 400 | 500 | 2506C-E15TAG1 | 216 | 6 | 15 | 137*171 |
| GNRP550E | 400 | 500 | 440 | 550 | 2506C-E15TAG2 | 211 | 6 | 15 | 137*171 |
| GNRP625E | 450 | 563 | 500 | 625 | 2806A-E18TAG1A | 196 | 6 | 18.13 | 145*183 |
| GNRP700E | 508 | 635 | 560 | 700 | 2806A-E18TAG2 | 203 | 6 | 18.13 | 145*183 |
| GNRP800 | 580 | 725 | 640 | 800 | 4006-23TAG2A | 199 | 6 | 22.921 | 160*190 |
| GNRP900 | 640 | 800 | 720 | 900 | 4006-23TAG3A | 200 | 6 | 22.921 | 160*190 |
| GNRP1000 | 720 | 900 | 800 | 1000 | 4008-TAG1A | 206 | 8 | 30.561 | 160*190 |
| GNRP1125 | 818 | 1022 | 900 | 1125 | 4008-TAG2A | 208 | 8 | 30.561 | 160*190 |
| GNRP1375 | 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A | 212 | 12 | 45.482 | 160*190 |
| GNRP1500 | 1100 | 1375 | 1200 | 1500 | 4012-46TAG1A | 209 | 12 | 45.842 | 160*190 |
20KVA to 1250KVA generator
