Specifications
UK 4008TAG2A Generator1.UK Engine With Stamford
2.Low Fuel Consumption
3.One Year Warranty
4.CE & ISO 9001

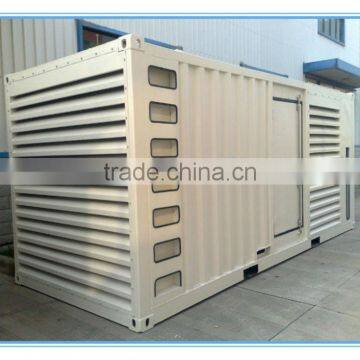

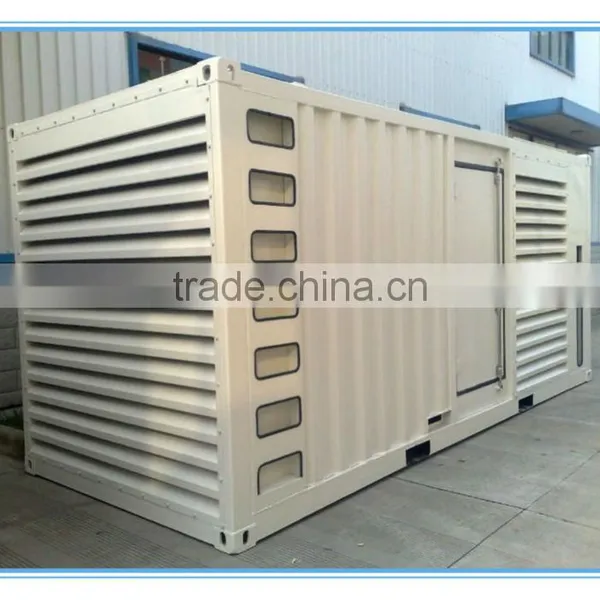

Containerized Type ! UK 4008TAG2A Diesel Generator Price
Introduction:
1)Generator choose famous brand UK Diesel Engine as the dynamic force.
2)The engine has the feature of good power performance,safety,low fuel consumption and good reliability.
3)Our generator sets are widely used as prime or standby power supply in building,bank,supermarket,industrial,factory,fieldwork,oil field,highway and so on.
Specification of Engine
| Engine Brand | UK Imported |
| Engine Model | 4008TAG2A |
| Governor/Class | Electronic |
| Cylinder NO. | 8 |
| Engine build | Vertical in-line |
| Fuel spray pattern | direct injection |
| Aspiration | Turbocharged |
| Cooling mode | Radiator cooled (enclose water) |
| Bore and stroke | 160 x 190 mm |
| Compression ratio | 13.6:1 |
| Displacement | 30.561 litres |
| Engine Prime Power at 1500rpm | 861KWm |
| Engine Standby Power at 1500rpm | 947KWm |
| Start-up mode | 24V, electric |
| Battery capacity | 2 x 12 volts x 178 Ah |
| Starting/Min temperature | / |
| Lubricating oil consumption | Lubricating oil consumption less than 10% Fuel consumption |
| Lubrication oil capacity | 153litres |
| Coolant capacity – radiator and engine (40°C) | 149 litres |
| Exhaust temp – full load prime | 438°C |
| Exhaust gas flow – full load prime | 200m³/min |
| Exhaust gas back pressure max | 3,0 kPa |
| Air flow – radiator (40°C ambient) | / |
| Pusher fan head (duct allowance) 40°C | / |
| Air intake – engine– full load prime | 75m³/min |
| Standard Air intake temp | 25°C |
| Fuel type | #0 Diesel (Natural temperature) |
| Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
| Engine derating – altitude | / |
| Engine derating – temperature | / |
Specification of Alternator
| Alternator Model | HCI 634J |
| Alternator Type | A.C. Synchronous |
| Rated Voltage | 230/400V |
| Rated Frequency | 50HZ |
| Rated speed | 1500 RPM |
| Voltage regulation mode | Auto |
| Alternator voltage regulation | ±0.5% |
| Exciting mode | Brushless self exciting |
| Power factor | 0.8 (lagging) |
| Phase & wires | 3 phase 12 wires |
| Rated currency | 1443.4A |
| Efficiency | 0.942 |
| Insulation class | H |
| Protection class | IP21 |
| Single load step to NFPA110 | 100% |
| Standards | IEC34-1 |
| Max. Ambient Temperature | 40°C |
| Min. Ambient Temperature | - 20°C |
| Max. altitude | 1000m |
| Weight | 2260Kg |
Control system with ATS :
1.Auto start when power goes out
2.Auto stop when power comes back on
3.Worldwide technical support with programmable software download
4.Full online documentation
5.Trouble shooting symbols to assist owner on concerns with the generator
6.Safety shutdown feature to protect the engine and generator from damage
7.Totally digital with few points of contact to the engine to increase reliability
8.Exercise features and daily start and stop programmable
Standard configuration of pekins:
1. Starting system: DC alternator is used to start engine
2. Short circuit protection: MCCB air switch
3. Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
4. Filter system: oil, fuel and air filte
5. Accessories: exhaust elbow, bellow, muffler
