Specifications
Diesel Generator 25 kw1.UK imported Engine
2.Stamford alternator
3.Output Power: 25 kw
4.ISO9001 :2008
Power Leader ! Diesel Generator 25 kw
1) There are supporting wheels in front of single – shaft automotive chassis, It can bear Vertical load and has the oriented function.
2) We fix the bolt type hitch frame which is used for adjusting height freely on the double – shaft type. It’s suitable for tractors in different height and can turn direction freely.
3) We adopt the mobile hanger, 180°turntable and reliable pneumatic braking system to assure the safety of the generator set running.

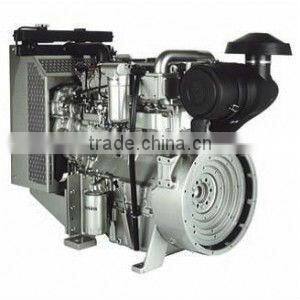

Engine Features:
1. World most famous brand diesel engine: 1000 series engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
Basic Configuration
1. Exhaust silencer 2.Flexible pipes 3.Starting battery 4.Starting Charger 5.Cooling radiator
6. Battery Wires 7.Base frame 8.Main circuit breaker 9.AVR 10.Manual books 11.Control box 12. Switch-box 13.Genset wooden box
Optional Supply
1. ATS (Automatic transfer system)
2. AMF Panel
3. Silent canopy (for silent type only)
4. Fuel Tank (8 hours running)
5. Four Protection (high temperature auto shutdown, overload automatic shutdown, low oil pressure automatic shutdown, automatic shutdown phase)
Control Panel:
1. Automatic control panel (AMF), LCD
2. Four protection systems
3. Emergency stop
TECHNICAL DATA | |
GENSET MODEL |
GNRP25 |
Rated output |
25KW/30KVA |
Rated Voltage |
220/380V,230/440V;etc |
Frequency |
50HZ |
ENGINE MODEL |
1003G |
Rated ouput (kw) |
28 kw |
Governing method |
Electrical/Mechanical |
Oil box volume(L) |
64L |
Bore x Stroke(mm) |
100*127mm |
Apirated |
Natural |
Cooling Starting Method |
Closed water cooled |
ALTERNATOR MODEL |
PI144G |
Rated power |
25 |
Rated frequency |
50HZ |
Rated speed (rpm) |
1500 |
Power factor |
0.8 lagging for 3-phase |
Phase connection |
3-phase |
Winding connection |
4 -wire connected(12-wire for 3-phase) |
Excitation method |
Brushless |
Insulation class |
H |
Voltage regulation |
AVR |
