50Hz Power with Cummins Diesel Engine Silent Generators 40kva
Power generator/diesel generator /electric generator
| ||||||
| Technical Data | ||||||
| Genset model | GNRC30 | |||||
| Genset output power | 30KW | |||||
| Rated voltage | 400/230V (Adjustable) | |||||
| Frequency | 50 | |||||
| Power Factor | 0.8Lagging | |||||
| Dimension(L*W*H)mm | 1800*740*1200 | |||||
| Net weight(kg) | 860 | |||||
| Diesel Engine | ||||||
| Brand | Cummins | |||||
| Model | 4BT3.9-G2 | |||||
| Engine structrue | In line 4 stroke Turbocharged | |||||
| Rotating Speed | 1500rpm | |||||
| Engine cooling Method | water cooled | |||||
| Governor System | Electrical | |||||
| Starting Method | by battery | |||||
| Engine Filter System | Dry type air filter,fuel filter, oil filter | |||||
| Displacement(L) | 3.9 | |||||
| Bore*Stroke(mm) | 102*120 | |||||
| 100%Load full consuption(g/kw.h) | 209 | |||||
| Lube capacity(L) | 11 | |||||
| Alternator | ||||||
| Brand | UK Engga | Stamford | ||||
| Model | EG184-HQ | BCI184H | ||||
| Excite Type | brushless self-excited AVR regulation | |||||
| Connecting type | 3 phase 4 pole | |||||
| Steady Frequency Change | 0.50% | |||||
| No Load voltage | ≥95%-105% | |||||
| Steady voltage | ≤±1% | |||||
| Insulation class | H class | |||||
| Protection class | IP22 | |||||
| The components of the genset | ||||||
| (1) Diesel engine;(2) Generator;(3) Control panel. | ||||||
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Super Soundproof/Silent Box
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Engine :
Original stamford alternator and certificate :
Open type Genset with Cummins engine

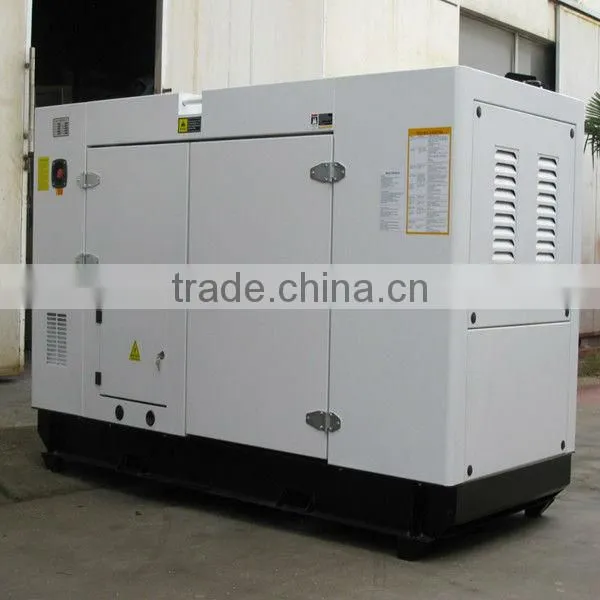

Silent Type Diesel Genset
