Shanghai 40kva to 900kva Silent Genset With Cummins Engine

1) Engine:Cummins Engine

2) Alternator:(Stamford, Leroy Somer, Marathon, ENGGA brushless alternator) 3 Phase 4 Wire, Brushless, H class Insulation, Self-Exited ,IP21-23 Protection, AVR regulation, Voltage deviation: ±0.5%, THF<5%,low radio interference.

3) Output range: 20KVA to 2000kVA (rated power)

4) Frequency: 50Hz or 60Hz

5) 3 Phase 4 Wire & 1 Phase 2 Wire

6) Speed: 1500rpm or 1800rpm

7) Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V .  Single Phase Voltage Available: 100-250V

Accessories:
1) Standard accessories: Standard 40 radiator mounted on skid ,Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit ,operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.

Warranty policy

Guarantee for 12 months or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor  will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.

Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 10 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

PMC System:

1. Standard 23 pitch windings avoid excessive neutral current

2. Permanent magnet generator system provides constant excitation under all condition

3. Optional accessories available for easy paralleling with mains or other generators

4. AVR auto voltage regulation, auto exciter, auto adjustment

Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Four hours testing before out factory and CCIB inspection

5. ISO9001:2000 and CE certification

 Engine

Original Stamford Alternator

Open Typ Genset :

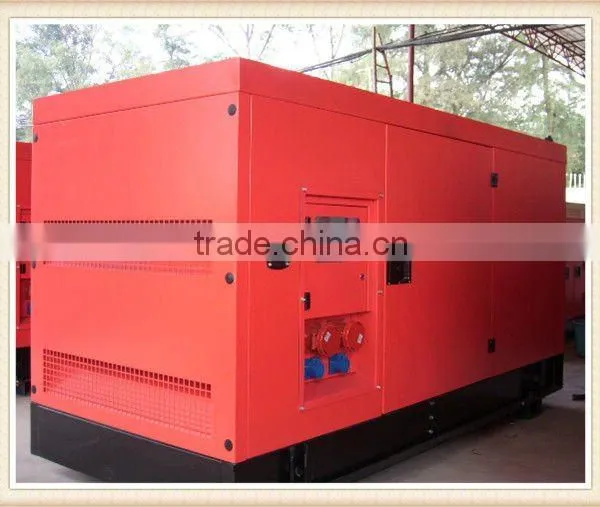

Silent Type Genset:
